Clicktronic
Active DisplayPort™ to HDMI™ Adapter Cable (Full HD)
Premium cable | 1x DisplayPort™ plug >> 1x HDMI™ plug | 10.0 m | WQHD @ 75 Hz
/14
Product and packaging similar. Subject to modifications and errors.
Clicktronic
Active DisplayPort™ to HDMI™ Adapter Cable (Full HD)
Premium cable | 1x DisplayPort™ plug >> 1x HDMI™ plug | 10.0 m | WQHD @ 75 Hz
Article details

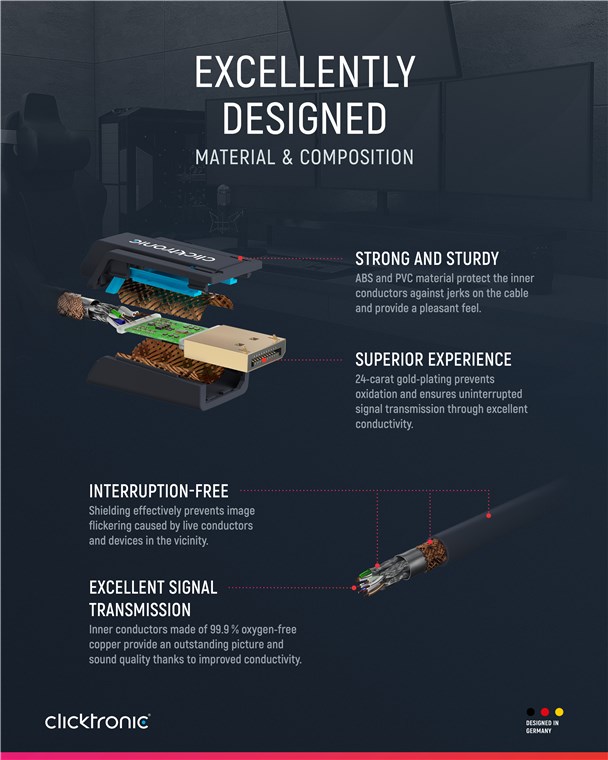

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our DisplayPort™ cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors transmit audio and video signals in maximum quality for a perfect home cinema and gaming experience. The Clicktronic DisplayPort™ cable enables a razor-sharp image and has a very fast transmission speed.
  • DisplayPort™-to-HDMI™ cable connects external monitors and projectors to PC, laptop or Mac.
  • High-resolution signal transmission with WQHD @ 75 Hz (1440p) and Full HD @ 60 Hz (1080p) for crystal-clear sound and razor-sharp video and picture quality
  • Monitor cable with max. transfer rate of up to 10.2 Gbit/s for an optimal entertainment experience
  • Integrated signal amplifier prevents signal loss, making the Clicktronic cable especially suitable for bridging longer distances.
  • 24-carat gold-plated DisplayPort™ connectors for minimal transmission resistance and smooth image transmission without delays
  • DisplayPort™ connector with mechanical connector lock prevents loose contacts.
  • Signal direction: Due to the integrated signal amplifier, the DisplayPort™ cable must be connected so that the printed triangles point from the transmitter (e.g. PC) to the receiver (e.g. monitor).
Technical specifications
Labelling
Disclaimer
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Connections
Connection, contact material
gold (24 kt)
Connection, type
DisplayPort™ male
Connection, shielding
yes
Connection 2, type
HDMI™ connector male (type A)
Connection type
DisplayPort™ connector, HDMI™ connector male (type A)
Connection, housing material
ABS, PVC
Kink protection
both sides
Cable
Cable length
10 m
Material cable sheath
PVC
Inner conductor material
CU (copper)
AWG
24
Cable sheath diameter (approx.)
8.2 mm
Type 3, shielding
foil (aluminium)
Cable type
round cable
LSZH compliant
no
Number of shieldings
3 x
Type 1, shielding
Braiding (copper) 112x
Type 2, shielding
foil (aluminium)
Ferrite core
no
Signal transmission
Max. resolution
Full HD (1920 x 1080p) 60 Hz
max. transmission rate
4.95 Gbit/s
General
Markings
WEEE, CE
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Downloads
Product data sheet pdf Declaration of conformity pdf Instruction Manual/Safety Instructions pdf
Compatible with

Clicktronic: Computer, Grafikkarte, Laptop, Monitor, Fernseher, Beamer
Packaging type
Retail Box
Cable length
2 m
3 m
5 m
7.5 m
10 m
15 m
20 m
Item: 70724
EAN: 4040849707247
Manufacturer
Wentronic GmbH, Pillmannstraße 12,
38112 Braunschweig, Germany
www.wentronic.com, cs@wentronic.com
