Clicktronic
Active DisplayPort™ to HDMI™ Adapter Cable (Full HD)
Premium cable | 1x DisplayPort™ plug >> 1x HDMI™ plug | 2.0 m | WQHD @ 75 Hz
/14
Product and packaging similar. Subject to modifications and errors.
Clicktronic
Active DisplayPort™ to HDMI™ Adapter Cable (Full HD)
Premium cable | 1x DisplayPort™ plug >> 1x HDMI™ plug | 2.0 m | WQHD @ 75 Hz
Article details

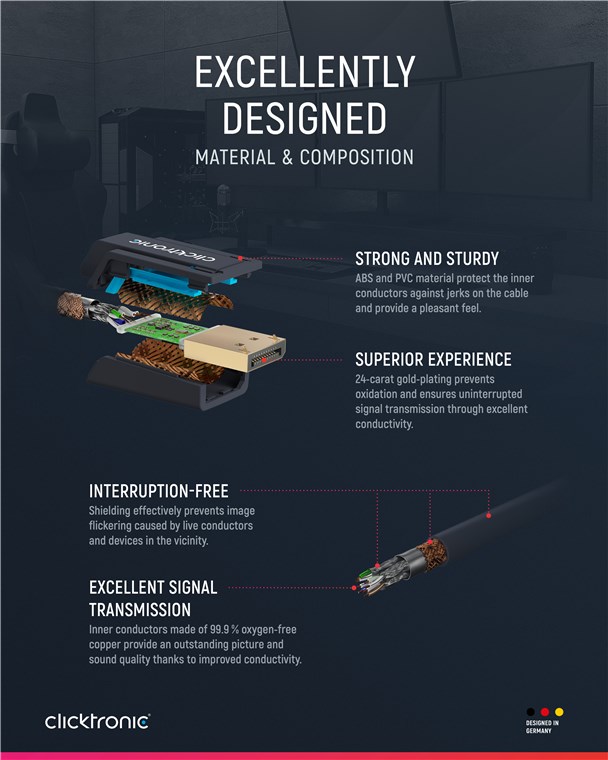

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our DisplayPort™ cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors transmit audio and video signals in maximum quality for a perfect home cinema and gaming experience. The Clicktronic DisplayPort™ cable enables a razor-sharp image and has a very fast transmission speed.

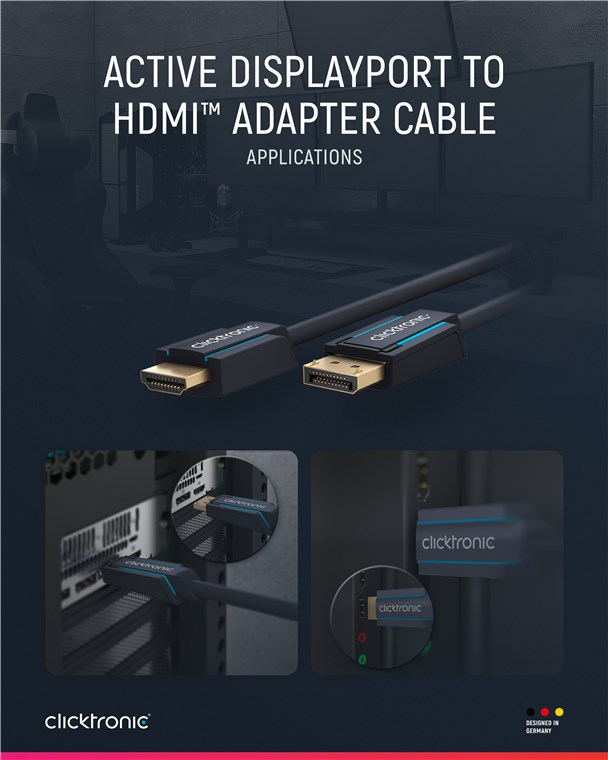

  • DisplayPort™-to-HDMI™ cable connects external monitors and projectors to PC, laptop or Mac.

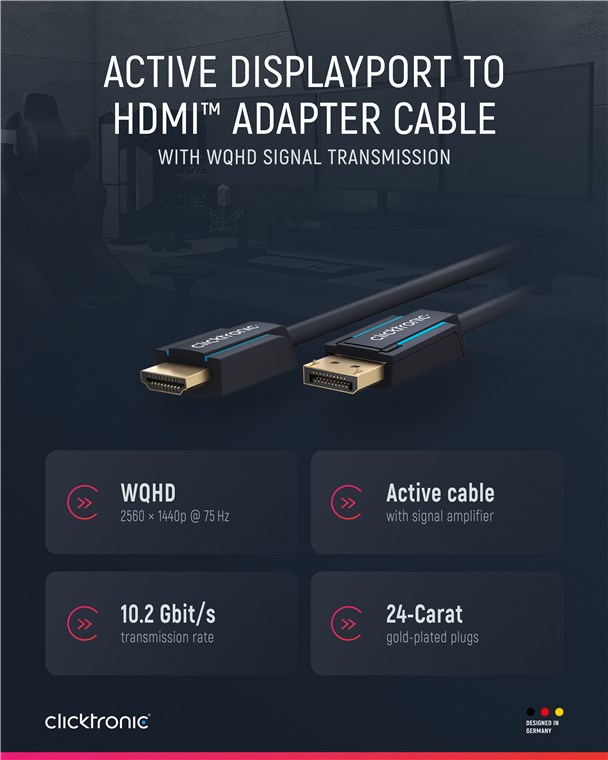

  • High-resolution signal transmission with WQHD @ 75 Hz (1440p) and Full HD @ 60 Hz (1080p) for crystal-clear sound and razor-sharp video and picture quality
  • Monitor cable with max. transfer rate of up to 10.2 Gbit/s for an optimal entertainment experience
  • Integrated signal amplifier prevents signal loss, making the Clicktronic cable especially suitable for bridging longer distances.
  • 24-carat gold-plated DisplayPort™ connectors for minimal transmission resistance and smooth image transmission without delays
  • DisplayPort™ connector with mechanical connector lock prevents loose contacts.
  • Signal direction: Due to the integrated signal amplifier, the DisplayPort™ cable must be connected so that the printed triangles point from the transmitter (e.g. PC) to the receiver (e.g. monitor).
Technical specifications
Labelling
Disclaimer
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Connections
Connection, contact material
gold (24 kt)
Connection, type
DisplayPort™ male
Connection, shielding
yes
Connection 2, type
HDMI™ connector male (type A)
Connection type
DisplayPort™ connector, HDMI™ connector male (type A)
Connection, housing material
ABS, PVC
Kink protection
both sides
Cable
Cable length
2 m
Material cable sheath
PVC
Inner conductor material
CU (copper)
AWG
26
Cable sheath diameter (approx.)
6 mm
Type 3, shielding
foil (aluminium)
Cable type
round cable
LSZH compliant
no
Number of shieldings
3 x
Type 1, shielding
Braiding (copper) 112x
Type 2, shielding
foil (aluminium)
Ferrite core
no
Signal transmission
Max. resolution
WQHD (2560 x 1440p) 75 Hz
max. transmission rate
10.2 Gbit/s
General
Markings
WEEE, CE
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years

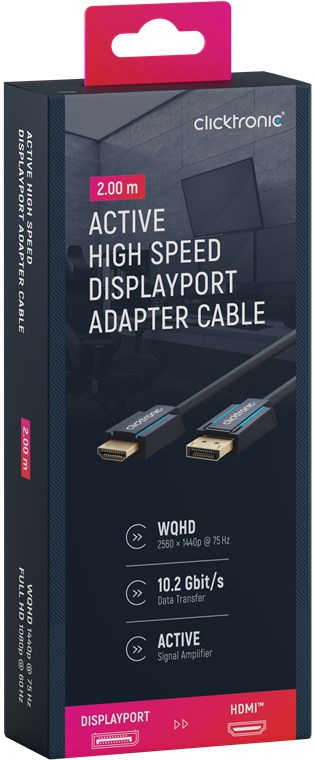

Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Downloads
Product data sheet pdf Declaration of conformity pdf Instruction Manual/Safety Instructions pdf
Compatible with

Clicktronic: Computer, Grafikkarte, Laptop, Monitor, Fernseher, Beamer
Packaging type
Retail Box
Cable length
2 m
3 m
5 m
7.5 m
10 m
15 m
20 m
Item: 70720
EAN: 4040849707209
Manufacturer
Wentronic GmbH, Pillmannstraße 12,
38112 Braunschweig, Germany
www.wentronic.com, cs@wentronic.com
