Product and packaging similar. Subject to modifications and errors.

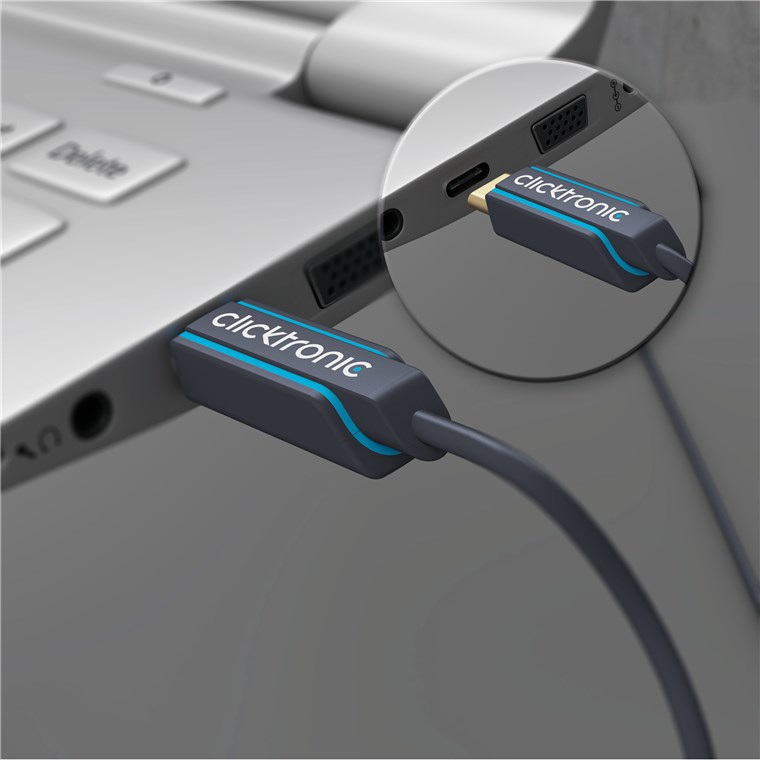

USB-C/DisplayPort Adapter Cable
4K/60Hz
Transfer data from mobile devices such as smartphones or tablets faster than ever before. Transmit films, photos, and games directly from smartphone to HDTV to a Beamer or HD-television.USB-C enables a transfer speed of up to 10 gigabits per second.It is 10 times faster than USB 2.0, making it ideal for HD videos or photos. USB Type C is compatible with DP and transmits 4K content in billions of colours with crystal clear sound.
- suitable for numerous mobile devices such as smartphones, tablets
- pure copper conductor and 3-way shielding for clear signal quality
- supports maximum SuperSpeed data transmissions up to 10 Gbps 4K@60 Hz
- 24 carat gold-plated contacts for minimum transmission resistance
Connections
| Connection, contact material |
gold (24 kt) |
| Connection 2, type |
DisplayPort male |
| Connection, housing material |
ABS, PVC |
| Connection, shielding |
yes |
| Kink protection |
both sides |
| Connection, type |
USB-C male |
Cable
| Material cable sheath |
PVC |
| Inner conductor cross-section |
0.08 mm² |
| Inner conductor material |
CU (copper) |
| Cable type |
round cable |
| Cable sheath diameter (approx.) |
4.8 mm |
| Cable length |
3 m |
| AWG |
32 |
| Number of shieldings |
3 x |
| Type 1, shielding |
Braiding (copper) 144x |
| Type 2, shielding |
foil (aluminium) |
| Ferrite core |
no |
| LSZH compliant |
no |
Signal transmission
| Signal amplification |
no |
| Max. resolution |
4K/60Hz (3840x2160) UHD |
| Supported video standards |
8K/60Hz (7680x4320) DSC, 4K/240Hz (3840x2160) DSC (4:2:2), 4K/144Hz (3840x2160) DSC, 4K/60Hz (3840x2160) UHD, 1440p/144Hz, 1080p (240Hz) Full HD |
General
| Markings |
WEEE, CE |
| Special feature |
pliable |
| Operating temperature from |
-10 °C |
| Operating temperature up to |
80 °C |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
