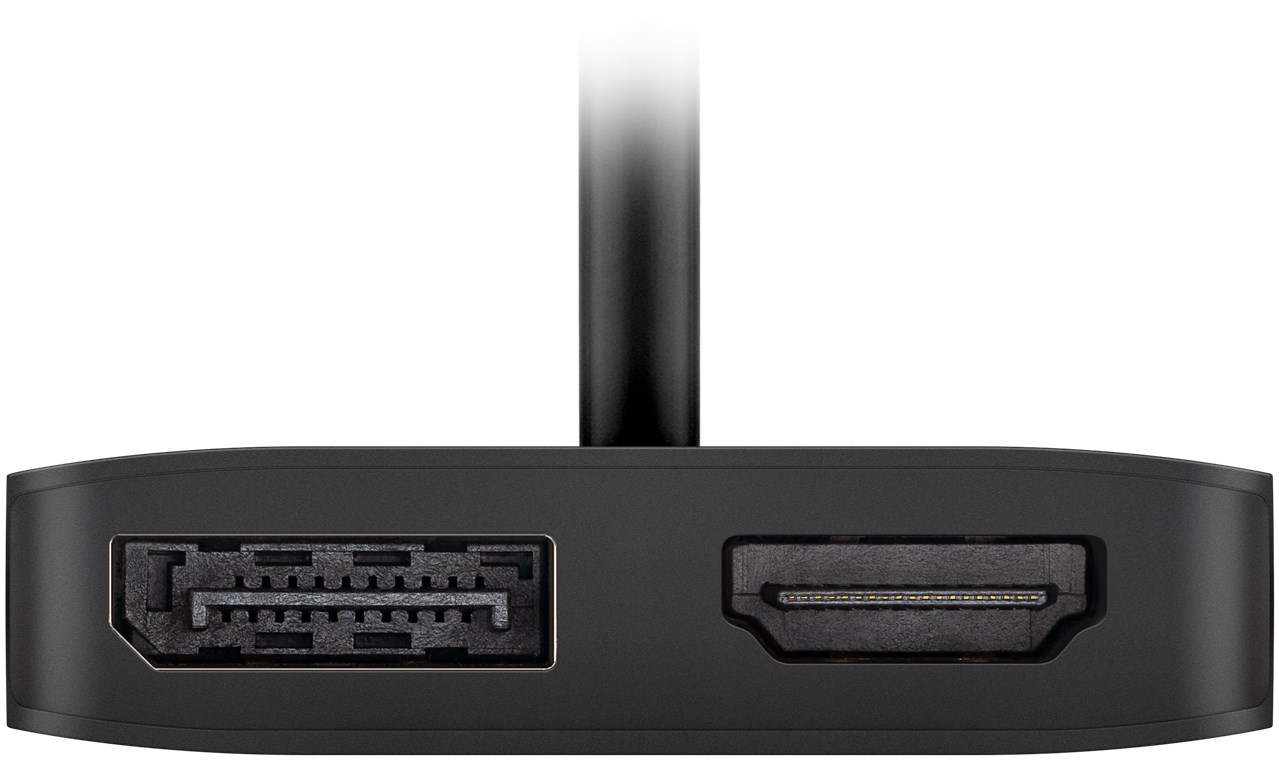

USB-C™ to DisplayPort™ and HDMI™ Adapter
extends a USB-C™ port by an HDMI™ and a DisplayPort™ connection

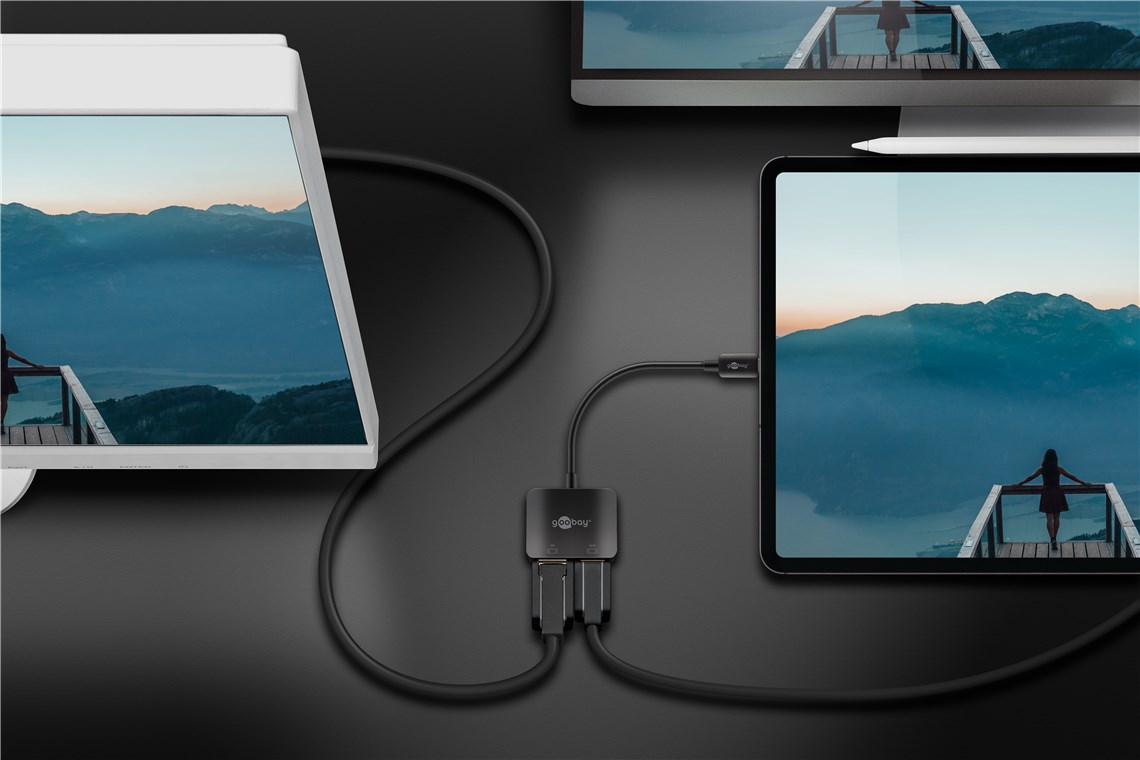

The adapter feeds up to 1 DisplayPort™ and 1 HDMI™ device simultaneously. Extend your laptop screen to 2 monitors via the USB-C™ output - for greater convenience at the workplace. Used individually, the ports also allow for great flexibility when connecting different devices.
- Multi-monitor adapter for mirroring data, audio and video signals via USB-C™ to up to 1 HDMI™ and 1 DisplayPort™ device
- Allows for synchronising up to 2 screens at the same time via DP and HDMI™.
- Suitable for host devices with USB-C™ connector that support MST (Multi Stream Transport)
- Hub supports maximum screen resolutions of 2x 4K @ 60 Hz
- Thanks to Plug & Play, the splitter can be used without installing drivers.
- Supports HDCP 1.4, 2.2 and 2.3 for protected signal transmission
Connections
| Connection, type |
USB-C™ |
| Connection 2, type |
HDMI™ |
| Connection 3, type |
DisplayPort™ port |
Cable
| Cable length |
0.12 m |
| Cable type |
coaxial cable |
| Cable sheath diameter (approx.) |
5 mm |
Signal transmission
| max. transmission rate |
18 Gbit/s |
General
| Markings |
CE, WEEE |
| Operating temperature up to |
45 °C |
| Packaging type |
Bulk |
Dimensions / Weight
| Consumption Unit |
1 pc. in polybag |
| Length |
40 mm |
| Width |
47 mm |
| Height |
12 mm |
| Weight |
26 g |
