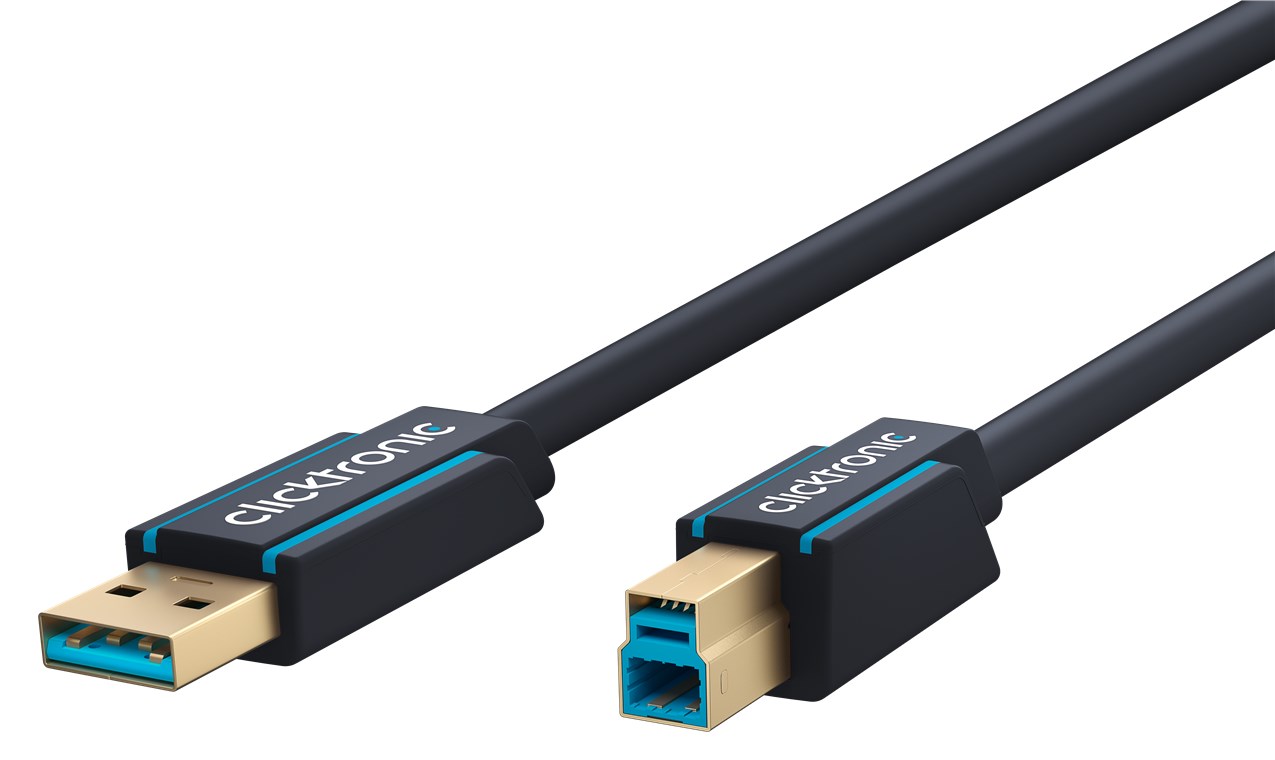

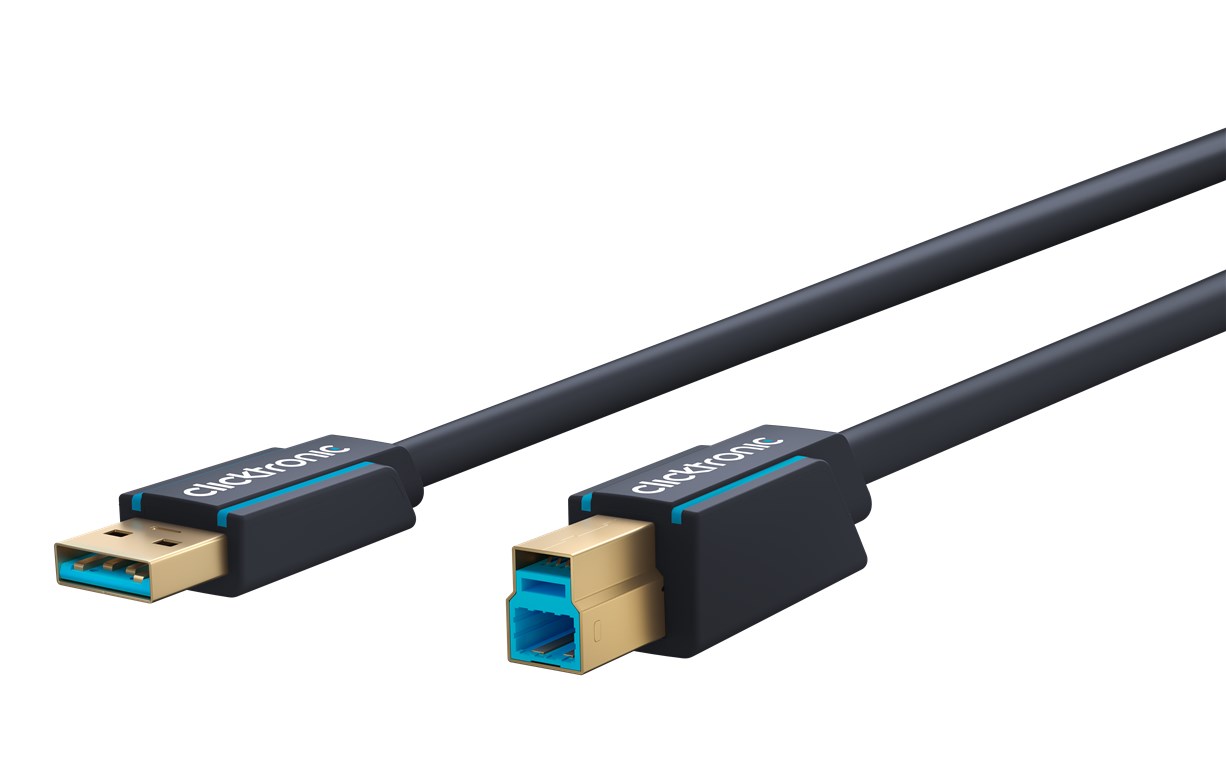

USB-A to USB-B 3.0 Adapter Cable
Premium cable | USB A plug <> USB B 3.0 plug | 0.5 m | 5 Gbit/s
USB-A to USB-B 3.0 Adapter Cable
Premium cable | USB A plug <> USB B 3.0 plug | 0.5 m | 5 Gbit/s
Article details

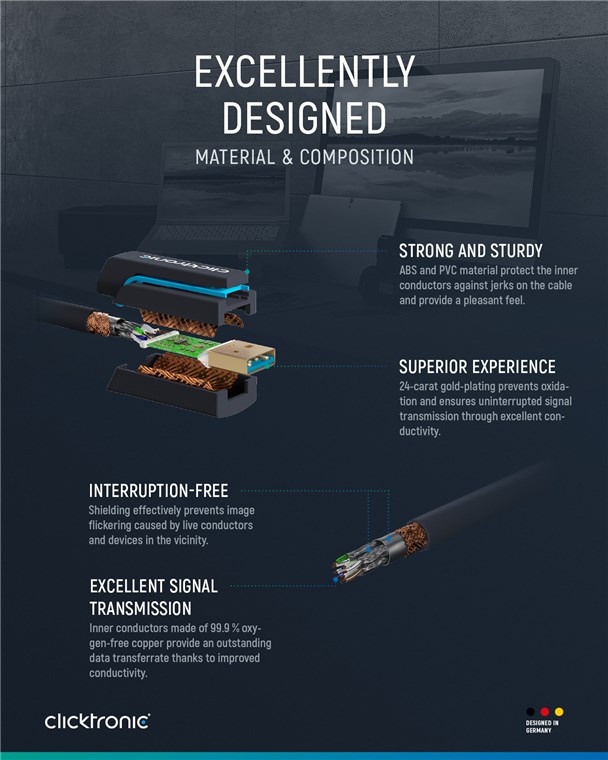

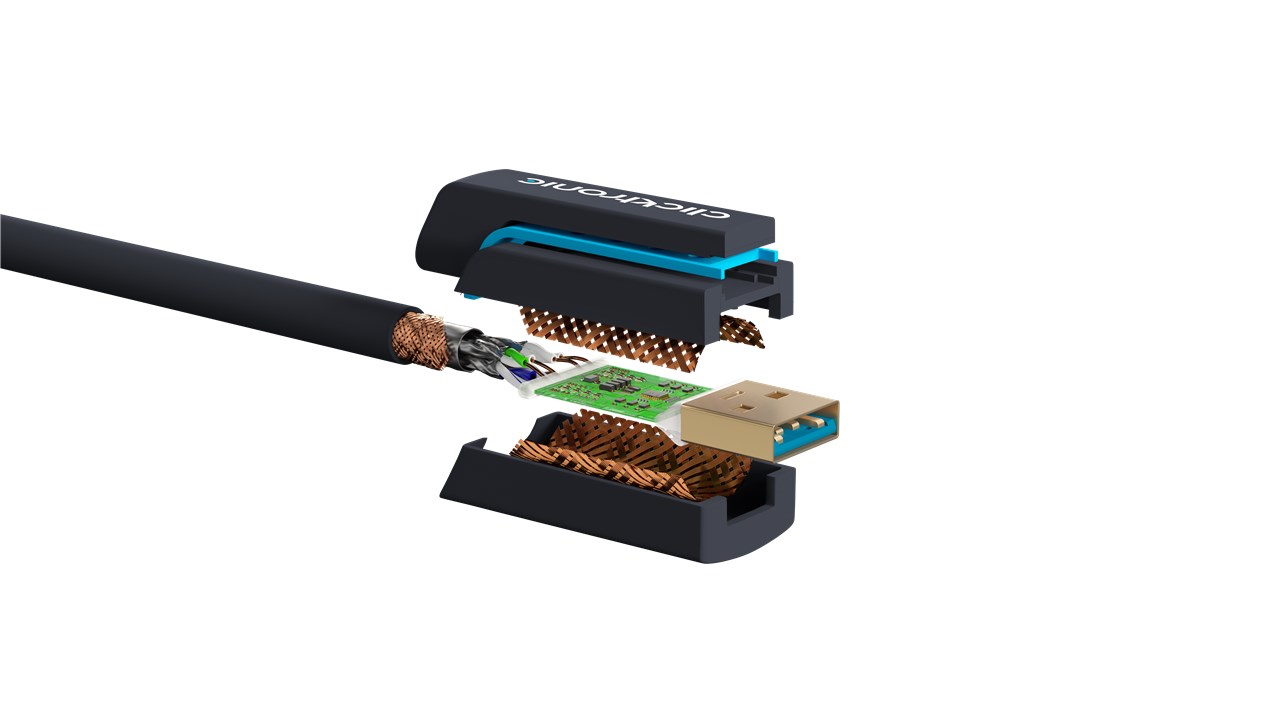

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our USB cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors guarantee fast data transmission. The durable PVC jacket protects the USB cable and ensures a long-lasting, stable connection.
- USB cable with a high-speed data transfer rate of up to 5 Gbit/s

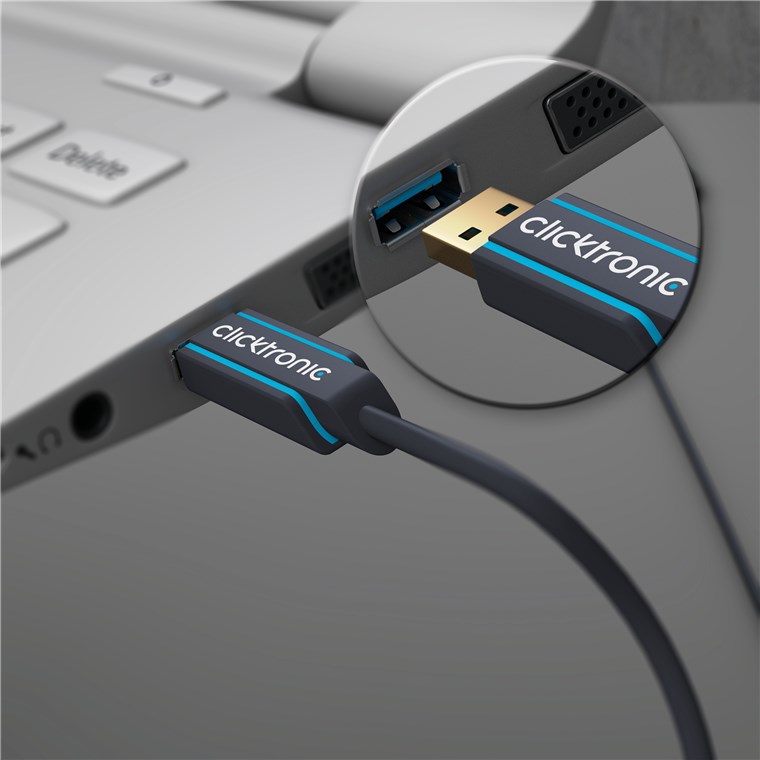

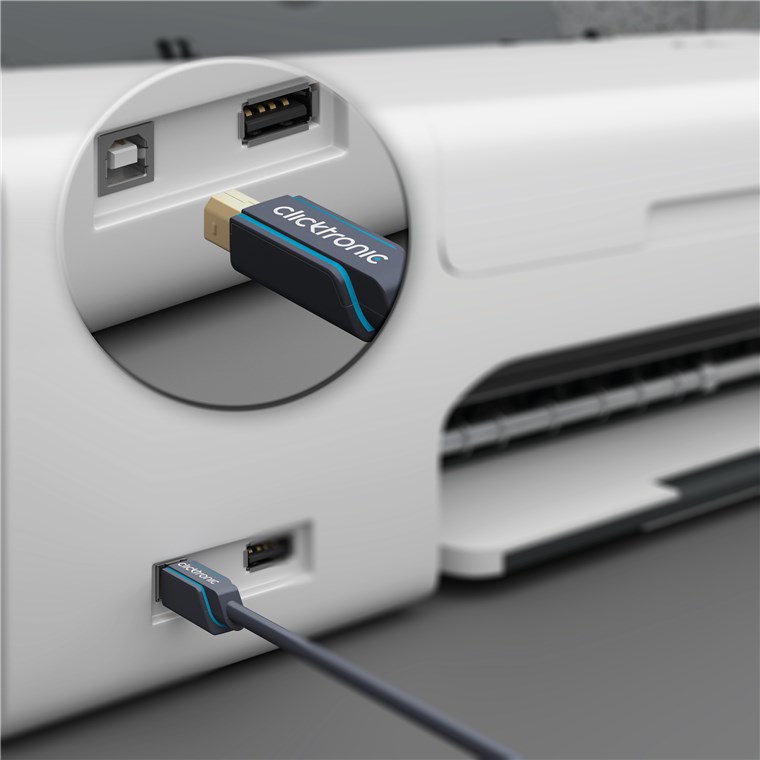

- For easy Plug & Play connection of devices with type B-3.0 connector such as printers to laptop or PC
- 24-carat gold-plated USB plugs guarantee excellent transmission quality of digital data.
- USB A to USB B cable with 99.9 % oxygen-free copper conductor and 2-fold shielding for optimum transmission speed
- Flexible bend protection and robust PVC cable sheathing allow the connection cable to be bent without damage.
- To guarantee functionality with old devices, the USB data cable is backwards compatible with USB 2.0 and USB 1.0.
- Clicktronic USB adapter cable has a high-quality USB-A and USB-B 3.0 connector.
Technical specifications
Connections
Connection, housing material
ABS, PVC
Connection, contact material
gold (24 kt)
Connection, shielding
yes
Connection type
USB-A male, USB-B male
Connection, type
USB 3.0 male (type A)
Connection 2, type
USB 3.0 male (type B)
Kink protection
both sides
Performance
Standard
USB 3.2 Gen 1(x1)(USB 3.0 / USB 3.1 Gen1)
Cable
Cable length
0.5 m
Cable type
round cable
Material cable sheath
PVC
Cable sheath diameter (approx.)
5 mm
Inner conductor material
OFC (99,9% oxygen-free copper)
AWG
28

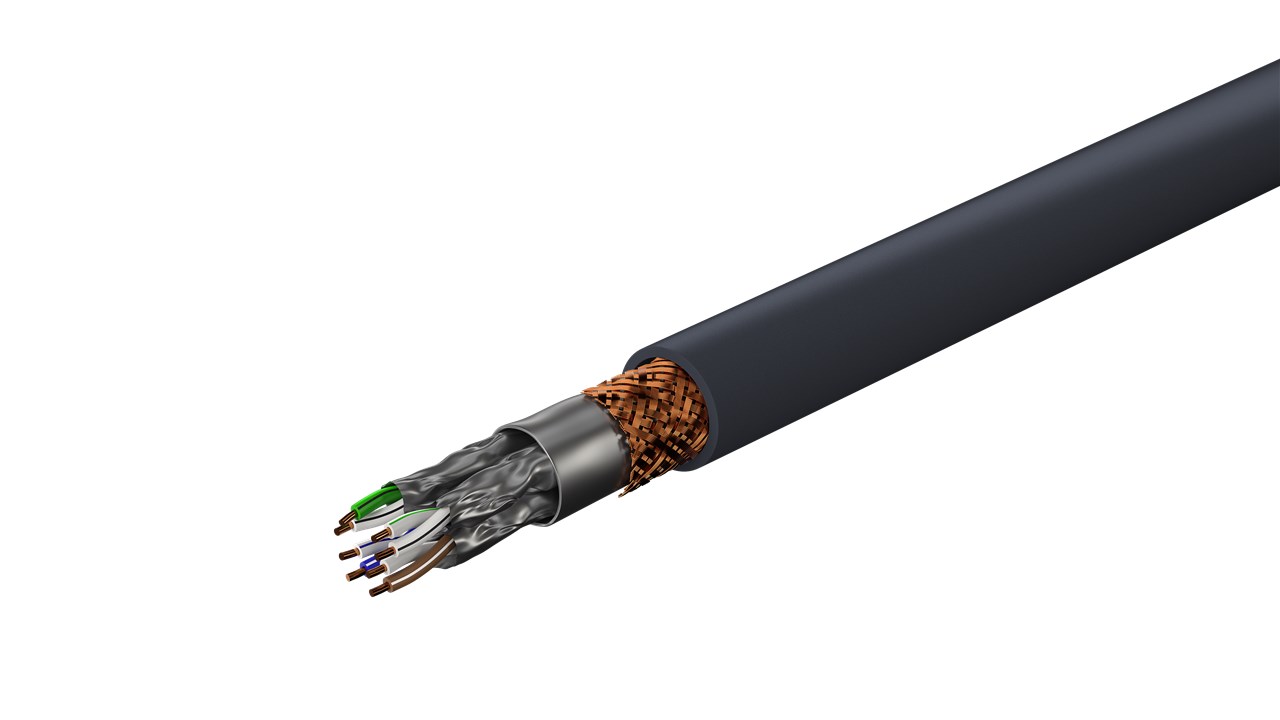

Number of shieldings
3 x
Type 1, shielding
braid (copper) 112x
Type 2, shielding
foil (aluminium)
Type 3, shielding
foil (aluminium)
Signal transmission
max. transmission rate
5 Gbit/s
General
Markings
WEEE, CE
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Downloads
Packing units:
1 / 20 / 40
Item: 70090
EAN: 4040849700903
