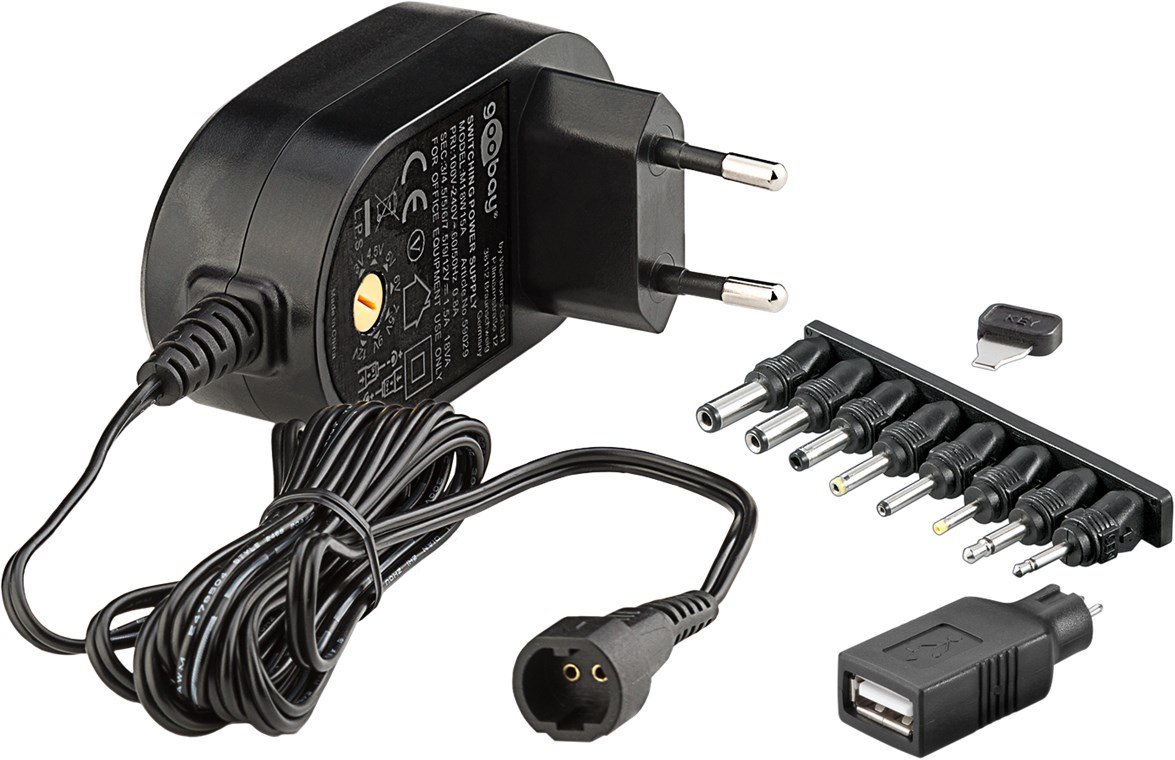

Universal Power Supply (3V-12V max. 18W / 1,5A)
incl. 1x USB and 8x DC adapters
- Switching power supply for charging and operating DC devices such as video cameras, routers, scanners, radios, cross trainers, dart boards, baby monitors or toys
- Thanks to the exchangeable USB socket and jack plugs, the universal power adaptor eliminates the need for additional chargers and adapters.
- The output voltage can be set at 3 V/4.5 V/5 V/6 V/7,5 V/9 V/12 V at 1.5 A with the help of the adjusting wheel.
- The voltage is easily adjustable with the enclosed key.
- 8x adapter plugs: 2.5 mm jack plug, 3.5 mm jack plug, DC connector 3.50 x 1.35 mm, 4.00 x 1.70 mm, 5.00 x 2.10 mm, 5.50 x 1.50 mm, 5.50 x 2.10 mm, 5.50 x 2.50 mm
- Thanks to the wide-range input from 100 V to 240 V, the multi-voltage laptop charger (Euro Plug Type C CEE 7/16) is suitable for use worldwide.
- Fuses in the DC power supply protect against short circuit, overload, overvoltage and overcurrent.
Connections
| Input, type |
Europlug (Type C CEE 7/16) |
| Output, type |
DC female (universal, 2-Pin) |
Performance
| No-load power consumption |
0.1 W |
| Power consumption |
18 W |
| Security Functions |
Short circuit, Overheating, Overloading, Overcurrent |
| Output |
3.0 V max. 1.5 A (4.5 W) DC
4.5 V max. 1.5 A (6.75 W) DC
5.0 V max. 1.5 A (7.5 W) DC
6.0 V max. 1.5 A (9.0 W) DC
7.5 V max. 1.5 A (11.25 W) DC
9.0 V max. 1.5 A (13.5 W) DC
12.0 V max. 1.5 A (18.0 W) DC |
Device connections
| Output, Voltage Step |
3, 4,5, 5, 6, 7,5, 9, 12 V |
| voltage stabilization |
yes |
| Input, Voltage Range |
100 - 240 (AC) V |
| Output, max. amperage |
1.5 A |
Cable
General
| Color |
black |
| Markings |
CE, WEEE, Haus, Quader, EUP |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
83.8 mm |
| Width |
44.5 mm |
| Height |
50.2 mm |
| Weight |
158 g |
Scope of delivery
| Notebook adapter |
2.5 mm pawl, 3.5 mm pawl, DC adapter (3,50 x 1,35 mm), DC adapter (4,00 x 1,75 mm), DC adapter (5,00 x 2,10 mm), DC adapter (5,50 x 1,50 mm), DC adapter (5,50 x 2,50 mm), USB 2.0 |
accessory - Power supply
| Power frequency |
60 Hz |
| Efficiency at low load (10 %) |
69.1 % |
| Average active efficiency |
77.8 % |
Language Scope
