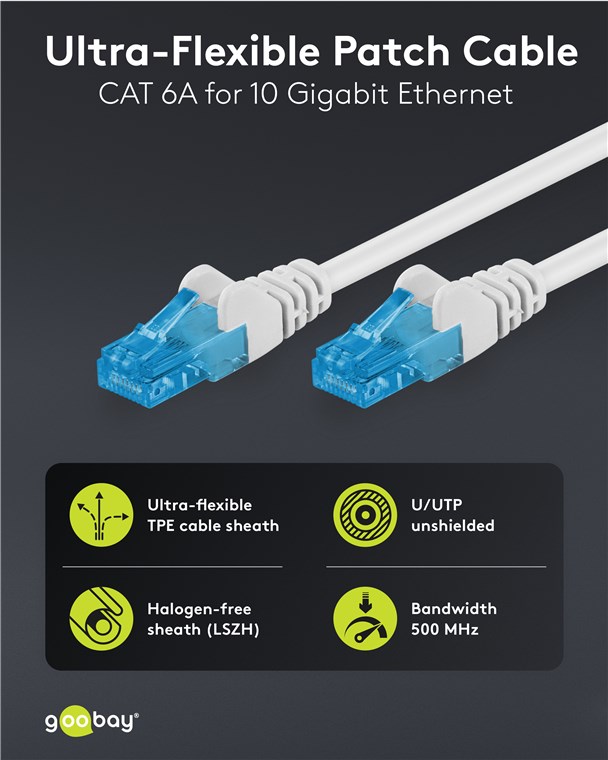

Ultra-Flexible CAT 6A Patch Cable U/UTP, white
copper conductor (CU), halogen-free TPE cable sheath (LSZH)
A CATegory of their own: With their soft TPE sheath, these CAT cables are significantly more flexible than conventional cables with PVC sheathing – for improved handling and a super-soft feel. Pull the plug on your old PVC cable and switch to TPE – in your mobile office, server rack or streaming setup.

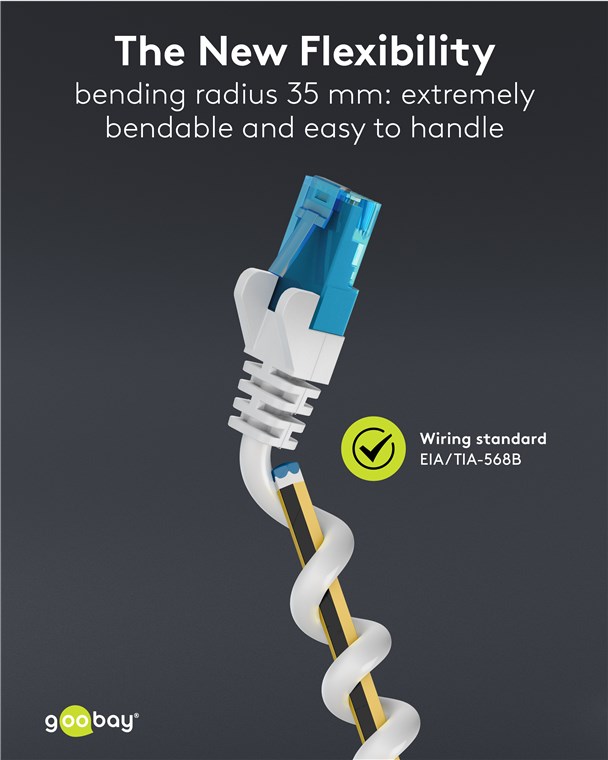

- The new flexibility: CAT cable with ultra-flexible TPE sheath for easy handling and especially effective LSZH protection
- Simply connected: Unshielded LAN cable with 2x RJ45 plugs for connecting network components at home, in the office, in the server cabinet, etc.
- Fast, faster, CAT 6A: As a CAT 6A network cable, suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s
- Top quality: High-quality copper conductor (CU) and 3µ gold-plated contact surfaces for a high-performance connection, as well as length indication on the overmoulded slimline bend protection sleeve
- Securely locked in place: The latch protection on the RJ45 connector prevents the latch from snagging or breaking off
- Always a favourite with LSZH: Compliant with applicable standards IEC 61034 (low smoke) and IEC 60754-2 (halogen-free)
- The internet cable is suitable for Power over Ethernet (PoE, PoE+)
The products are only labelled with a paper label, plastic bags and plastic cable ties are not used.
Compliant with applicable IEC and ISO standards:
- IEC 61034: Low smoke
- IEC 60754-2: Halogen-free
- ISO 11801: Performance Fluke channel test
Technical specifications
Connections
| Connection, contact material | gold-plated 3µm |
| Contacting | EIA/TIA-568 B |
| Kink protection | both sides |
| Connection 2, type | RJ45 male (8P8C) |
| Latch protection | yes |
| Connection, type | RJ45 male (8P8C) |
Cable
| bending radius > | 35 mm |
| Specification | CAT 6A |
| Cable length | 7.5 m |
| Cable type | super-flexible roundcable |
| Inner conductor material | CU (copper) |
| AWG | 28/7 (stranded) |
| Material cable sheath | LSZH-TPE |
| Cable sheath diameter (approx.) | 4.4 mm |
| Shielding class | U/UTP |
Signal transmission
| Impedance | 100 Ω |
| max. bandwidth | 500 MHz |
General
| Special feature | Length indication on connector |
| Packaging type | Cable Tag |
| Color | white |
| Markings | WEEE, CE |
| Operating temperature up to | 50 °C |
Dimensions / Weight
| Consumption Unit | 1 pc. bulk |
€11.99 RRP
Packing units:
1 / 70
