Goobay

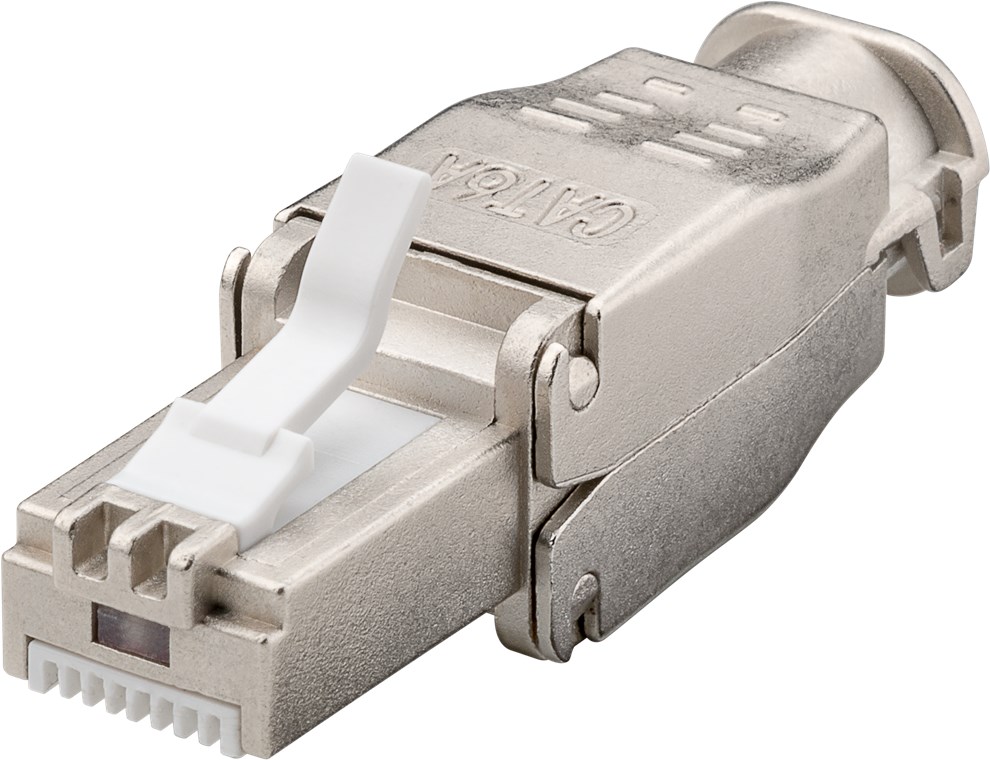

Tool-free RJ45 Network Plug CAT 6A STP Shielded
For 9.0 mm cable diameter, IDC connectors (toolless)
Goobay
Tool-free RJ45 Network Plug CAT 6A STP Shielded
For 9.0 mm cable diameter, IDC connectors (toolless)
Article details
Our network accessories transmit signals in top quality and speed. High-quality materials, robust housings and precisely fitting contacts distinguish our portfolio of jack sockets, plugs and couplings. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
  • The RJ45 plug is suitable for a 9.0 mm round cable with a flexible or rigid inner conductor (AWG 22 - AWG 24).
  • Robust zinc-alloy housing for high durability
  • CAT 6A plug with 3μ gold-plated contacts for a perfect transmission of electrical or optical signals

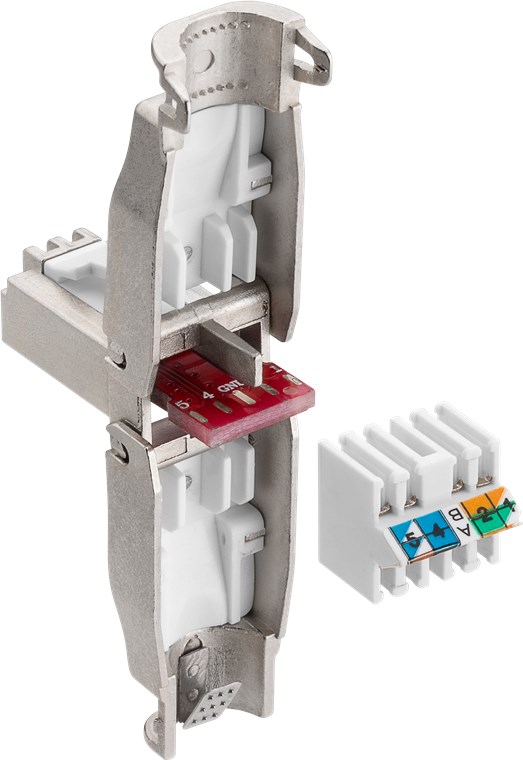

  • Tool-free assembly by simply pressing down the connector housing
  • RJ45 connector with colour-coded cable contacts according to EIA/TIA 568
  • Shielded RJ45 connector is suitable for Gigabit Ethernet applications.
Technical specifications
Connections
Connection, contact material
gold-plated 3µm
Connection, type
RJ45 male (8P8C)
Connection 2, type
for IDC connection (toolless)
Contacting
8 Pin
Cable
Specification
CAT 6A
Shielding class
STP
Signal transmission
max. bandwidth
500 MHz
General
Material
zinc die-cast
Packaging type
Bulk
Dimensions / Weight
Length
46.7 mm
Width
14.5 mm
Height
17 mm
Consumption Unit
1 pc. in polybag
Language Scope
Operation manual
en, de
Downloads
€8.99 RRP
Packing units:
1 / 10 / 50 / 500
Item: 38292
EAN: 4040849382925
