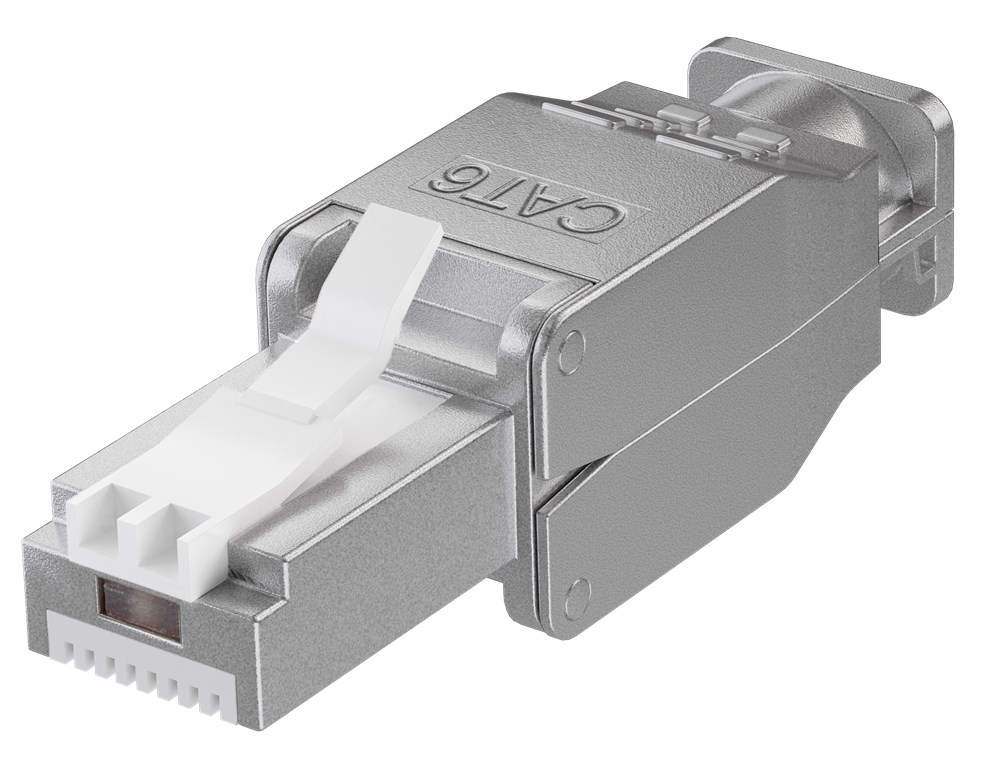

Tool-free RJ45 Network Plug CAT 6 STP Shielded
For 9.0 mm cable diameter, IDC connectors (toolless)
Our network accessories transmit signals in top quality and speed. High-quality materials, robust housings and precisely fitting contacts distinguish our portfolio of jack sockets, plugs and couplings. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- The RJ45 plug is suitable for a 9.0 mm round cable with a flexible or rigid inner conductor (AWG 22 - AWG 24).
- Robust zinc-alloy housing for high durability
- CAT 6 plug with 3μ gold-plated contacts and STP shield for a perfect transmission of electrical or optical signals

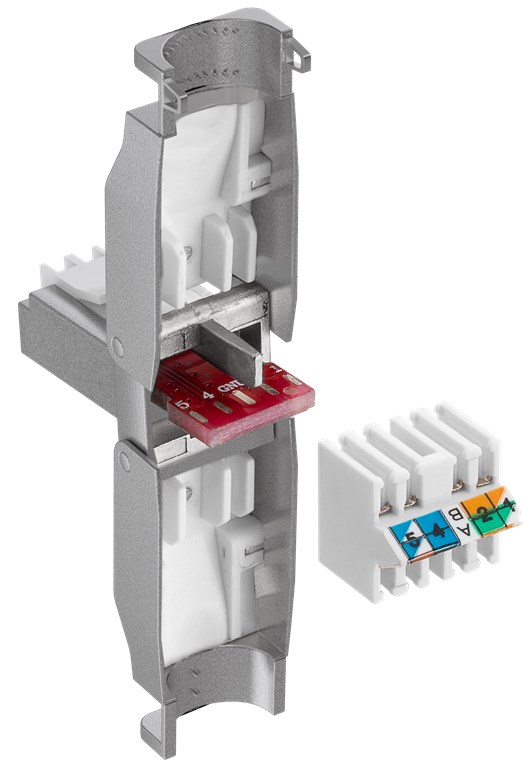

- Tool-free assembly by simply pressing down the connector housing
- RJ45 connector with colour-coded cable contacts according to EIA/TIA 568
- Shielded RJ45 connector with strain relief, suitable for Gigabit Ethernet applications.
Connections
| Connection, type |
RJ45 male (8P8C) |
| Contacting |
8 Pin |
| Connection 2, type |
for IDC connection (toolless) |
| Connection, contact material |
gold-plated 3µm |
Cable
| Specification |
CAT 6 |
| Shielding class |
STP |
Signal transmission
General
| Material |
zinc die-cast |
| Packaging type |
Bulk |
Dimensions / Weight
| Consumption Unit |
1 pc. in polybag |
| Length |
46.7 mm |
| Width |
14.5 mm |
| Height |
17 mm |
