Series 1.4

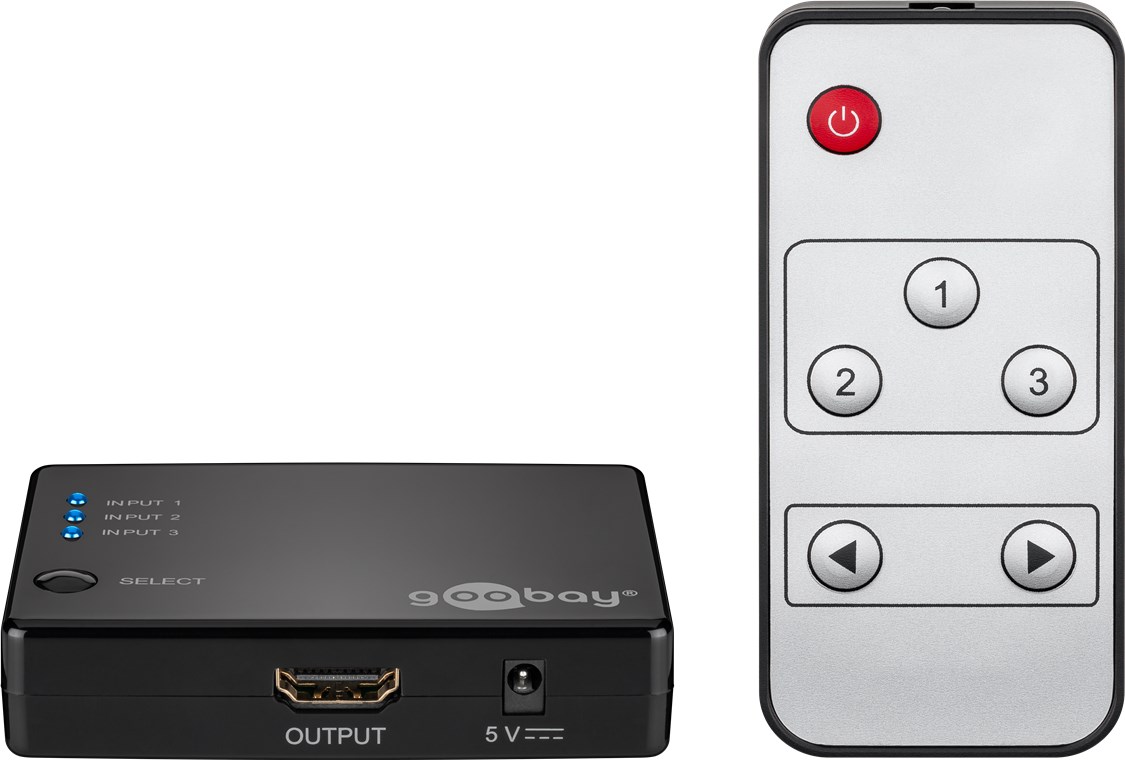

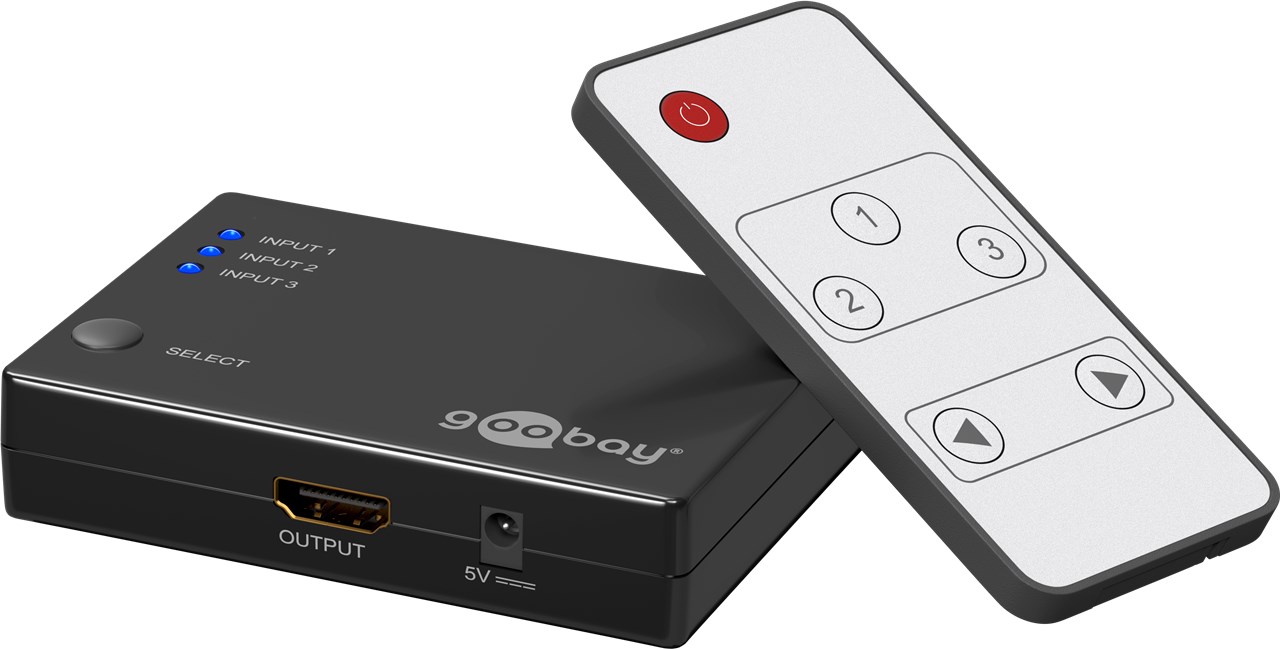

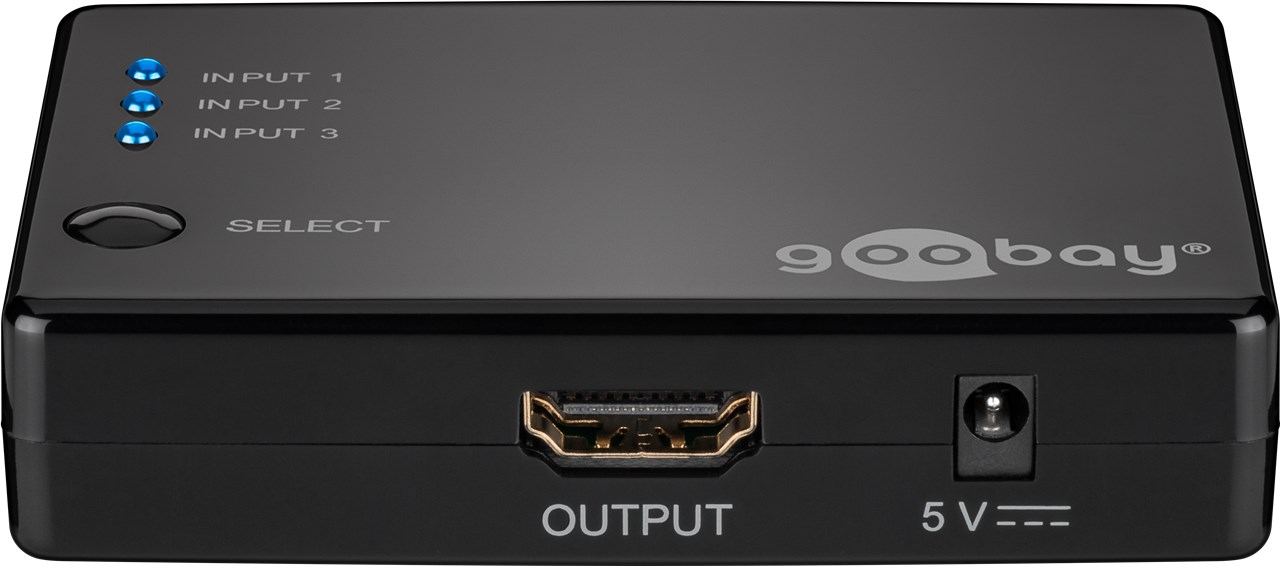

Manual HDMI™ Switch Box
for connecting up to three source devices to one television set, for example
- supports Full HD (1080p), 4K/30Hz and 3D
- conforms to HDCP standard
- manual switch on the front of the device
- easy to install and use

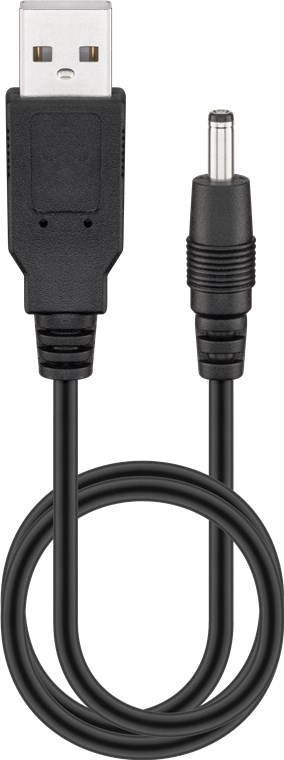

- power can be supplied via USB/DC cable (included) on the TV’s USB port or via USB adapter (5 V, 100 mA; not included; #43748)
Labelling
| Disclaimer |
all brand names are registered trademarks of their owners., The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. |
Connections
| Connection, type |
HDMI™ female (Type A) |

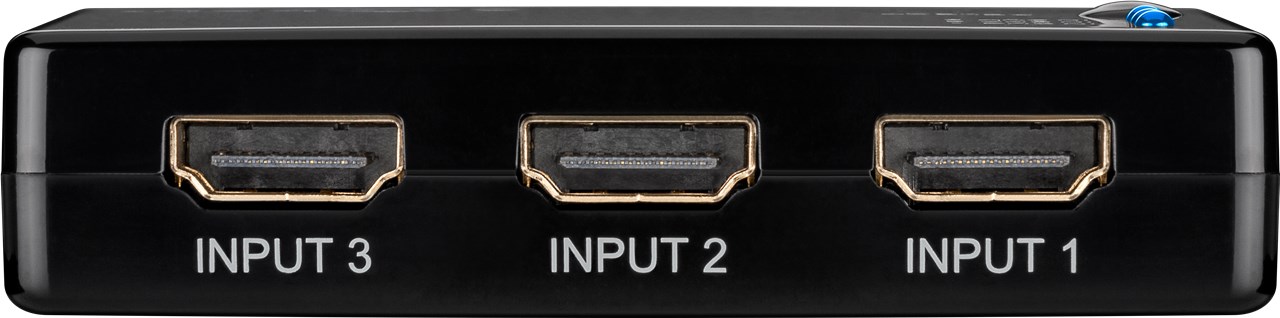

| Input, type |
3 HDMI™ female (Type A) |
| Output, type |
HDMI™ female (Type A) |
Device connections
| number of inputs |
3 |
| Number of outputs |
1 |
Signal transmission
| supported audio standards |
3D, Dolby Digital 5.1 (AC-3), DTS®, DTS-HD MA, DTS-HD HR |
| Supported video standards |
1080p (60Hz) Full HD |
General
| Color |
black |
| Material |
metal |
| Markings |
CE, WEEE |
| Operating temperature up to |
70 °C |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
82 mm |
| Width |
58 mm |
| Height |
18.3 mm |
| Weight |
50 g |
Scope of delivery
| Scope of delivery |

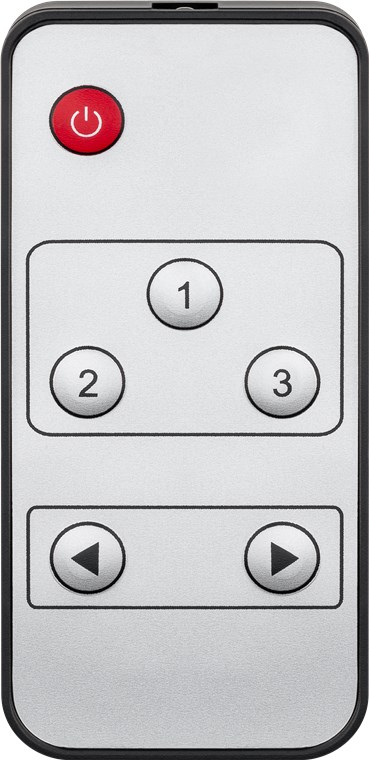

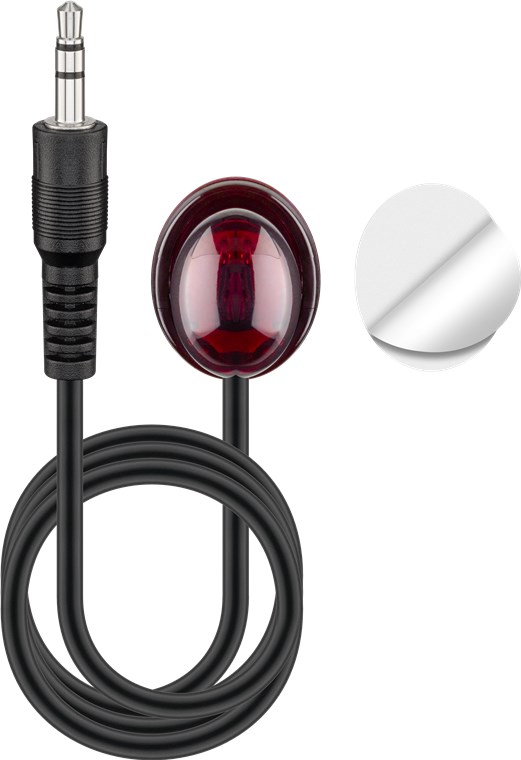

Infrared receiver, manual, remote control, USB to DC cable |
