LED Underfit Lamp with Motion Detector

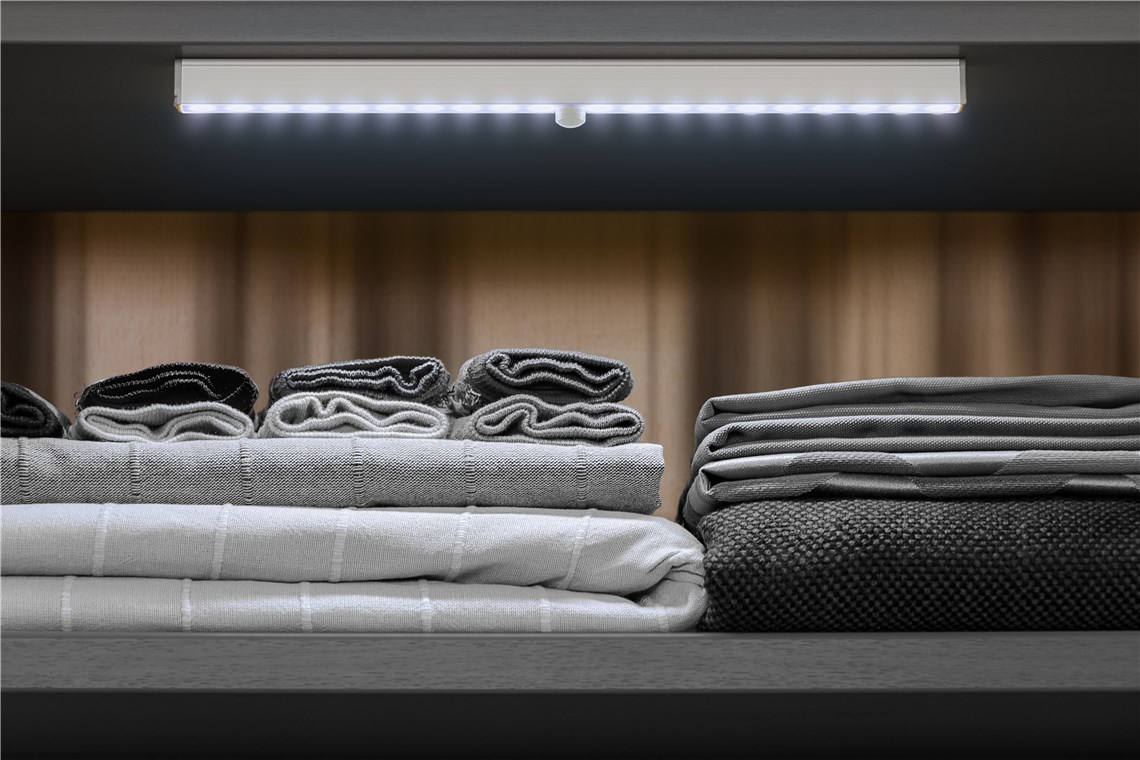

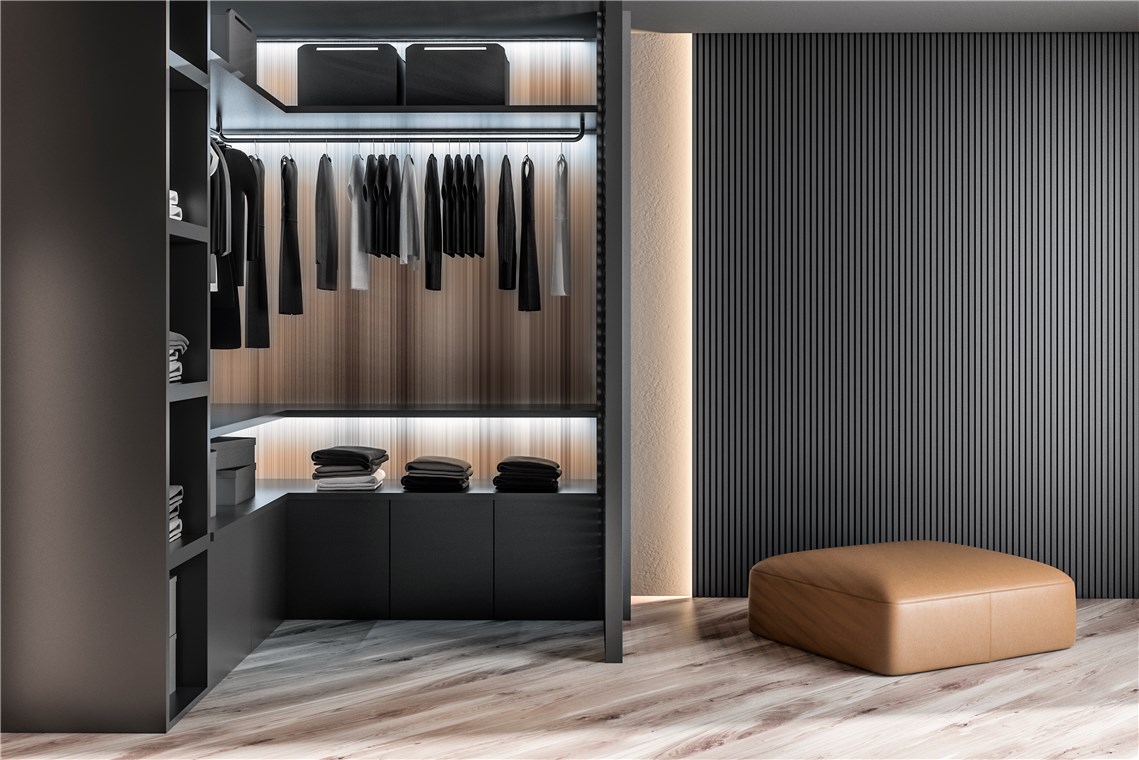

under-cabinet lighting with 160 lm and cool white light (6500 K), perfect for cupboards, cabinets, drawers, corridors and garages
- 20 LEDs of the kitchen cabinet lighting provide soft lighting.

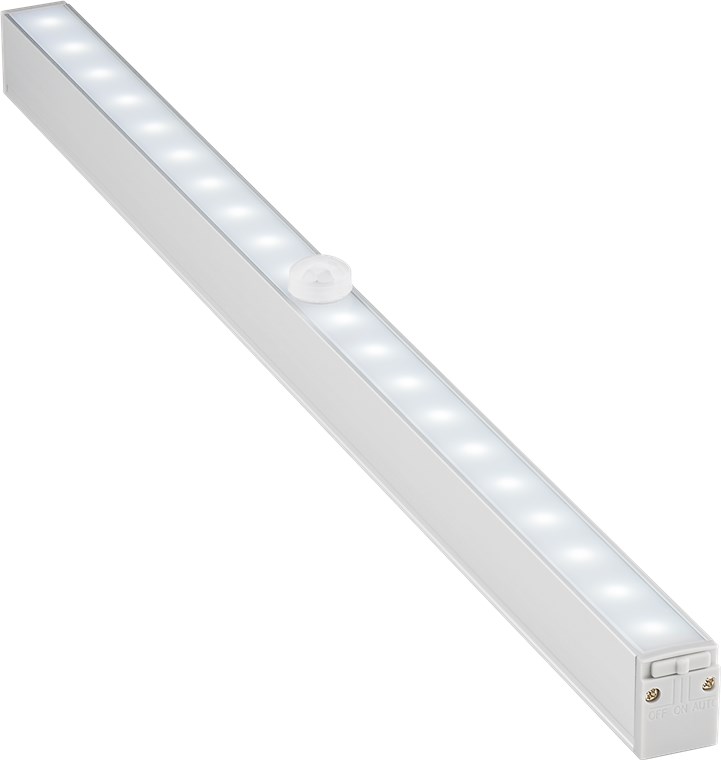

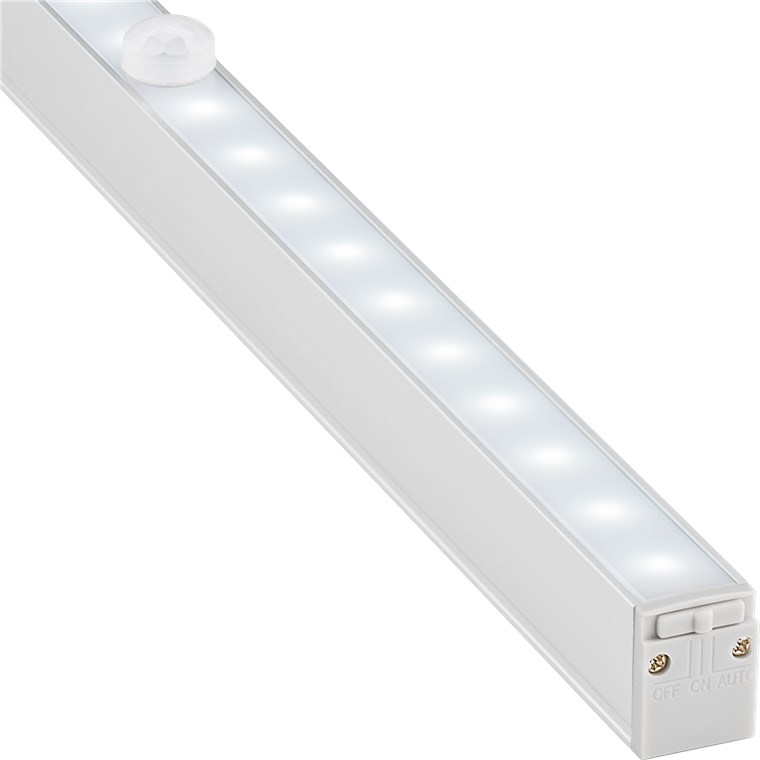

- Switch for 3 modes: OFF/ON/Auto (light and motion sensor activated)
- Auto mode: under-cupboard lights automatically switch on lights when motion is detected in dark environments, switch-off delay approx. 18 s
- Under-counter lighting made of high quality aluminium and PC, IP20 – only suitable for indoor use, not waterproof.

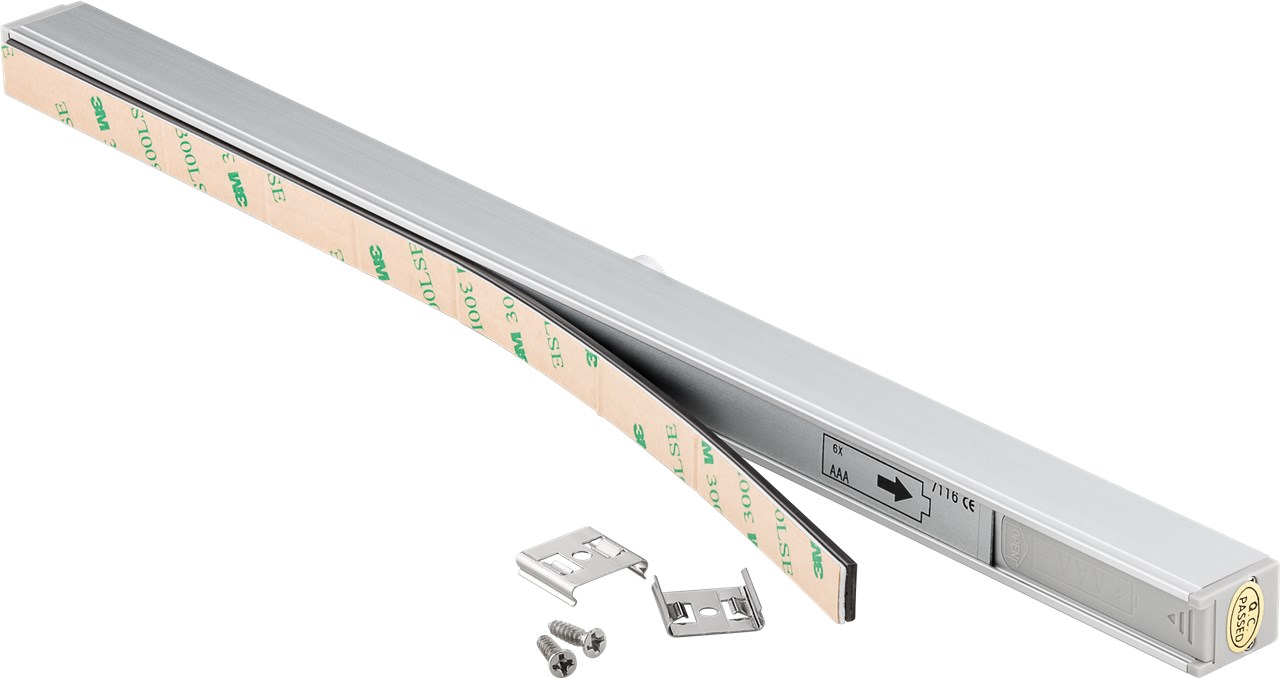

- Easy to install (includes accessories): 1. with magnetic strip and 3M adhesive tape or 2. with 2x screws and 2x mounts

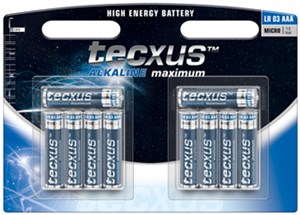

- Requires 6x 1.5 V AAA batteries (not included in delivery)
Battery
| Voltage |
1.5 V |
| Number of Cells |
6 pieces |
Performance
| Power consumption |
2.2 W |
| luminous source |
light emitting diode (LED) |
| Luminous color |
cool white |
| Illuminate-Type |
SMD 2835 LED |
| Number of LEDs |
20 |
| color temperature |
6500 K |
| Dimmability |
not dimmable |
| sensor type |
passive infrared (PIR) |
| operating voltage |
9 V (DC) |
| max. lighting duration |
6 h |
| Max. light range |
1.5 m |
| Luminous flux total |
160 lm |
| Light yield |
73 lm/W |
| color rendering index |
80 Ra |
| max view angle |
120 ° |
| switch-off delay from |
18 s |
| max. detection range |
5 m |
| Light sensitivity from |
10 lx |
Device connections
| Output, min. amperage |
0.24 A |
Build
General
| protection class |
IP20 |
| Color |
silver |
| Material |
PC, Aluminium |
| Markings |
WEEE, CE |
| Applications |
Furniture installation |
| Special feature |
Sensor function |
| Operating temperature from |
-10 °C |
| Operating temperature up to |
35 °C |
| General service life |
60000 hrs. |
| Number of switching cycles |
10000 pcs. |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
328 mm |
| Width |
15 mm |
| Height |
20 mm |
| Weight |
135 g |
Language Scope
| packaging |
de, en, fr, it, es, nl, da, sv, cs, pl |
