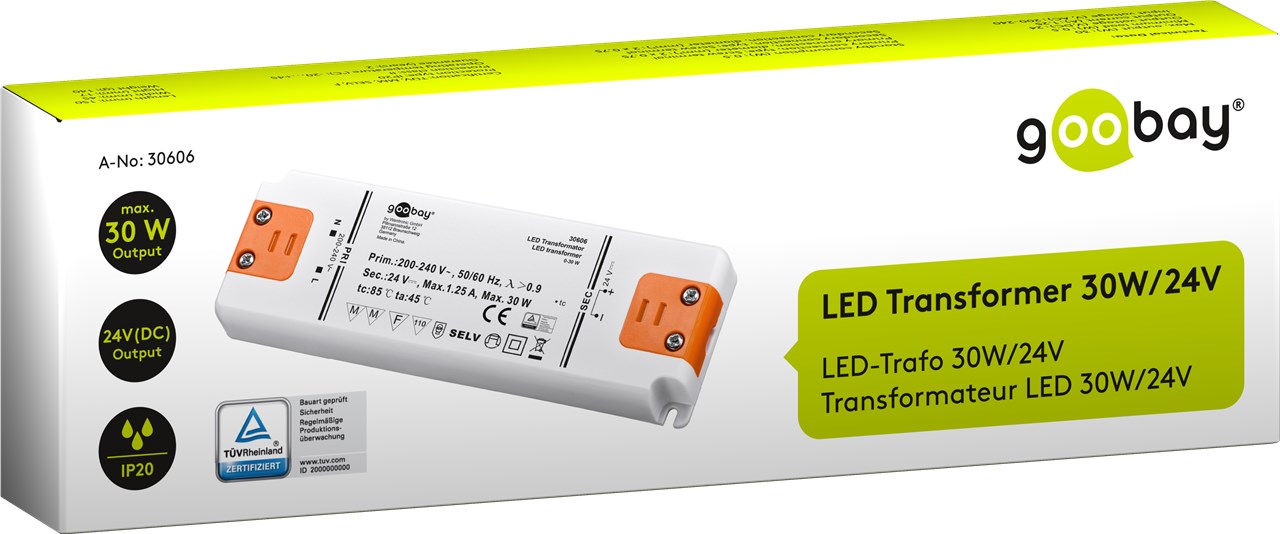

Product and packaging similar. Subject to modifications and errors.

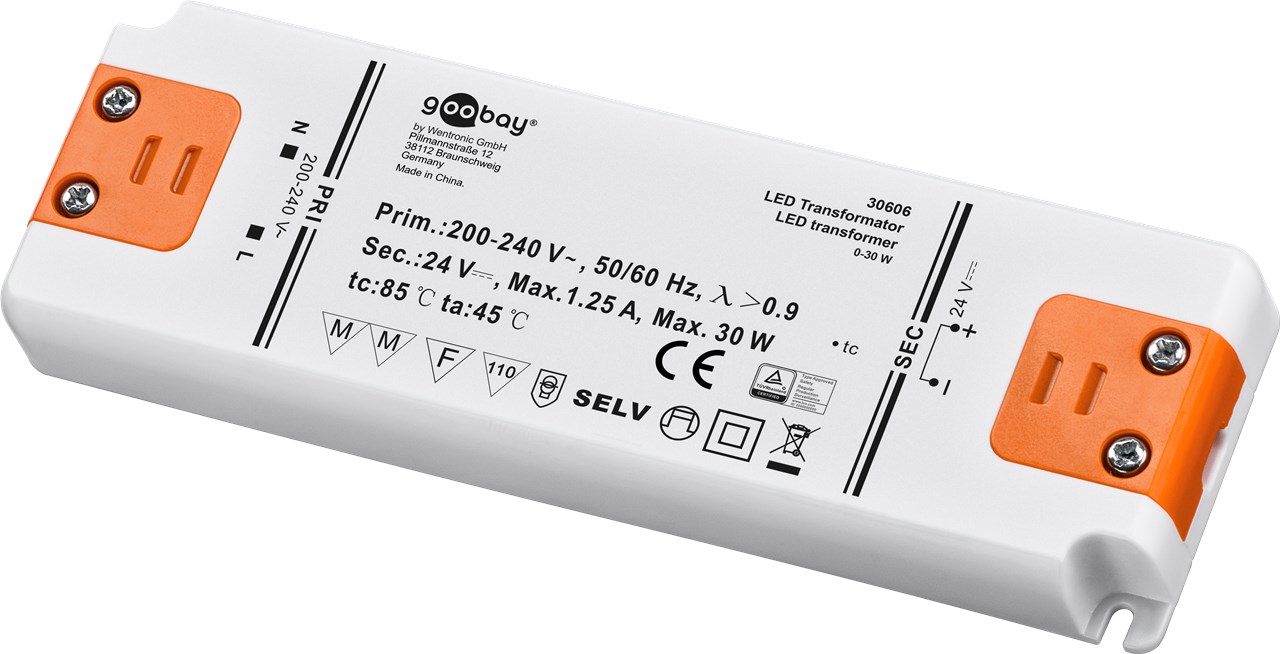

LED Transformer 24 V (DC)/30 W
for LEDs up to 30 W total load and direct voltage of 24 V (DC)
Our transformers supply LEDs with a constant voltage (CV), therefore offering a high degree of flexibility, e.g. when connecting different lengths of LED strips. They are the perfect solution for LED modules that require a fixed voltage and have their own series resistor.
- Compact LED transformer without minimum load for connecting light sources such as LED strips or LED modules to the mains with 200-240 V (AC)
- The constant voltage of 24 V (DC) allows for the flexible addition and removal of individual LEDs in parallel circuits and variable lengths of LED strips
- Thanks to the integrated screw terminals, the DC power source is quick and easy to install
- The flat design and low heat generation are perfect for a space-saving installation, even in confined spaces
- The LED driver is approved for installation in furniture and can be mounted discreetly, e.g. behind cabinets
- Suitable for parallel circuits and indoor use (IP20), with safe electronic isolation in accordance with appliance class II, overvoltage and short-circuit protection
- Dimensions (L x W x H): 150 x 45 x 17 mm, please note: The LED transformer is not dimmable
Connections
| Input, type |
Screw clamp |
| Output, type |
Screw clamp |
Performance
| max. performance |
30 W |
| No-load power consumption |
0.5 W |
| Dimmability |
not dimmable |
Device connections
| Input, Voltage Range |
200 - 240 (AC) V |
| number of inputs |
2 |
| Input Cross Section |
0.75 mm² |
| Output, voltage (DC) |
24 V (DC) |
| Output, max. amperage |
1.25 A |
| Output Cross Section |
0.75 mm² |
| Number of outputs |
2 |
General
| protection class |
IP20 |
| Appliance Class |
II |
| Color |
white, orange |
| Markings |
WEEE, CE, bauartgeprüft: TÜV Rheinland, SELV, MM |
| Applications |
Furniture installation |
| Special feature |
Constant voltage (for parallel connection) |
| Operating temperature from |
-20 °C |
| Operating temperature up to |
45 °C |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
150 mm |
| Width |
45 mm |
| Height |
17 mm |
| Weight |
140 g |
