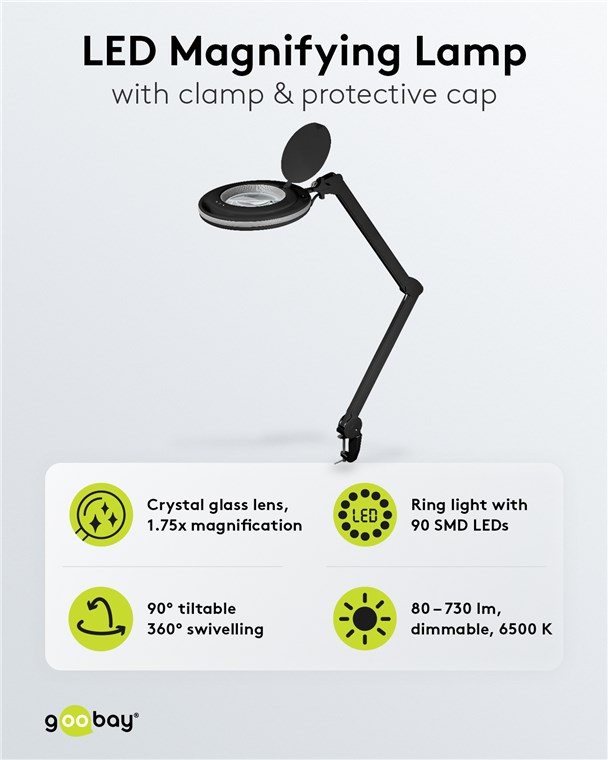

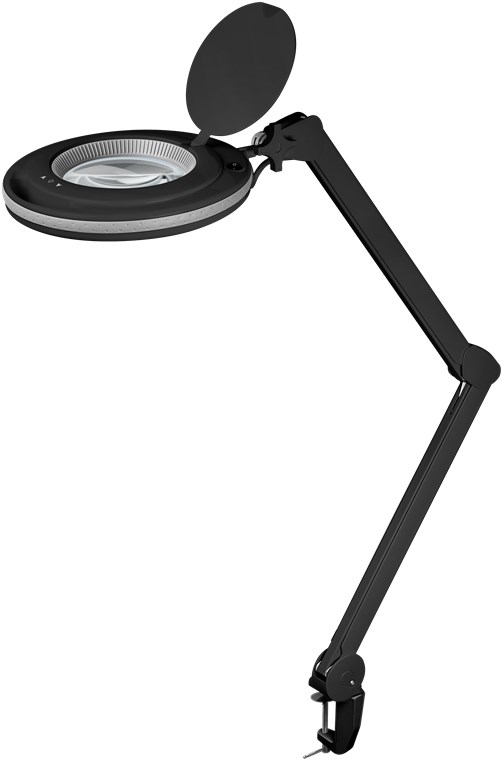

LED Magnifying Lamp with Clamp, 9 W, black
80-730 lm, dimmable, 127 mm crystal glass lens, 1.75x magnification, 3 dioptres

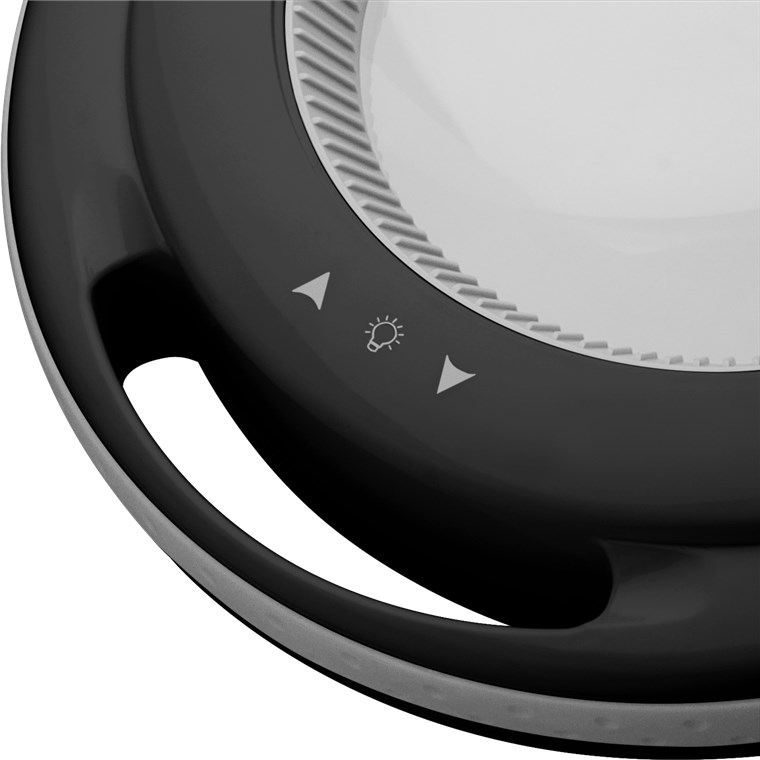

- Brightness of the magnifier with light adjustable via touch panel, ranging from 80 lm to 730 lm in 6 steps

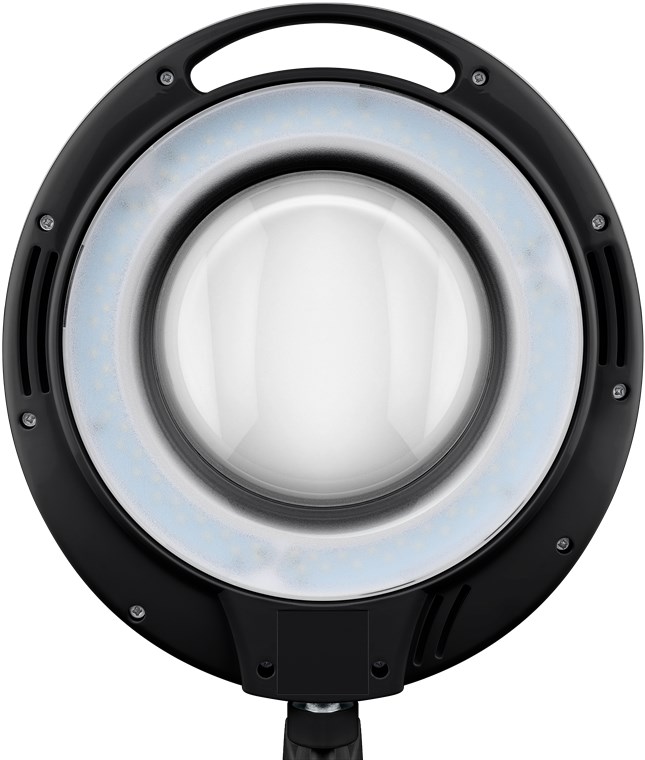

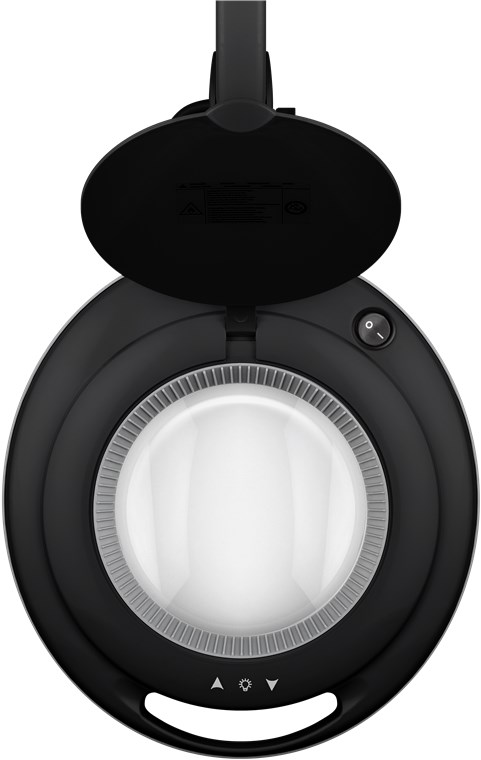

- The magnifying glass lamp with a 127 mm loupe diameter creates a harmonious, daylight-balanced LED ring illumination

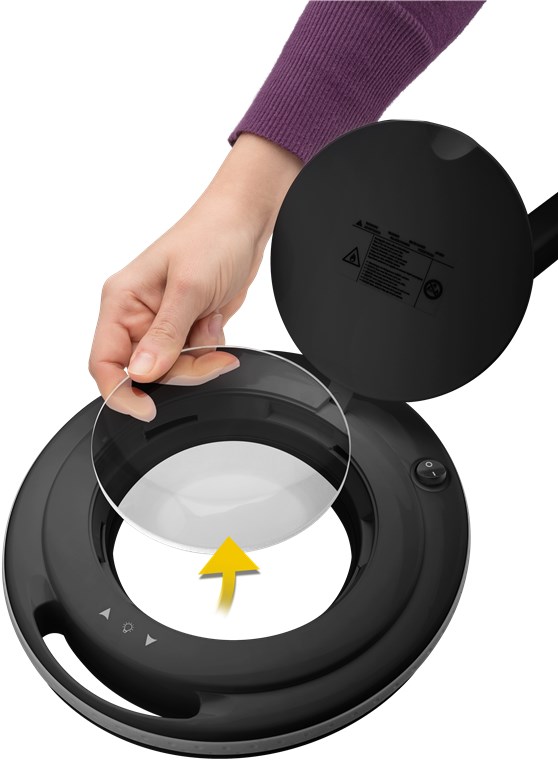

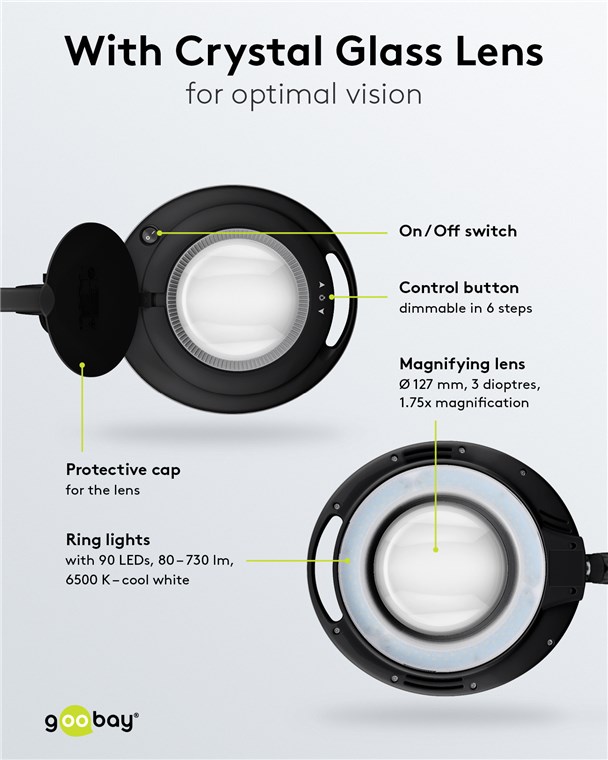

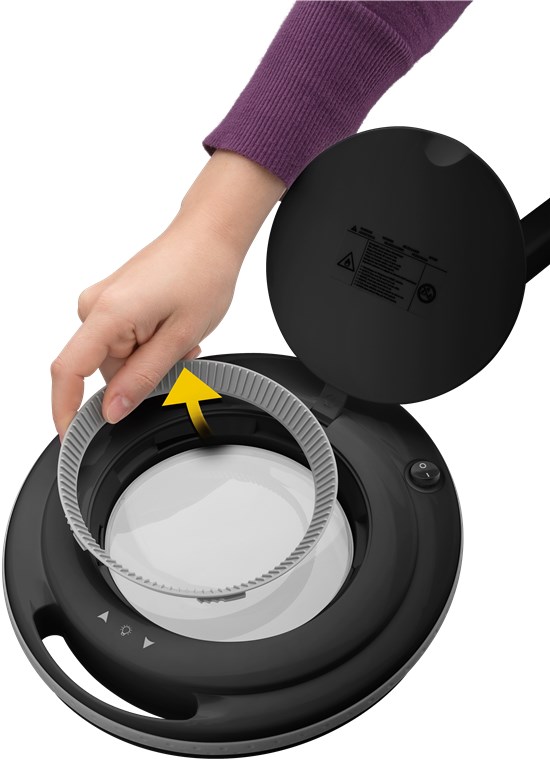

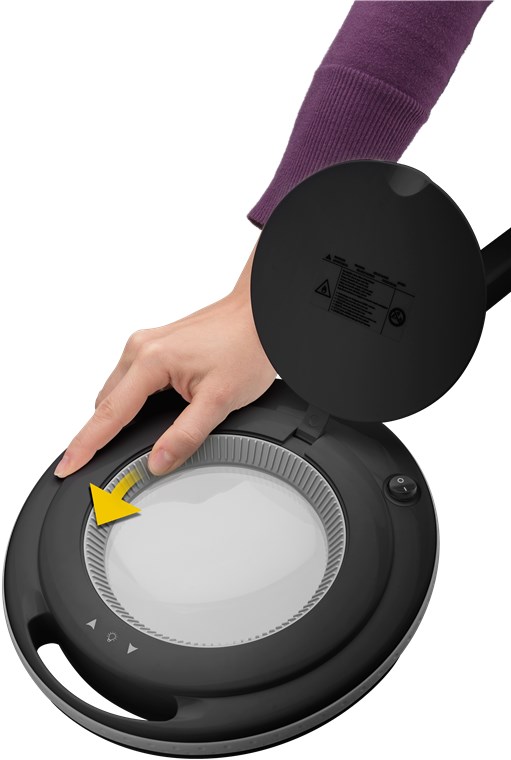

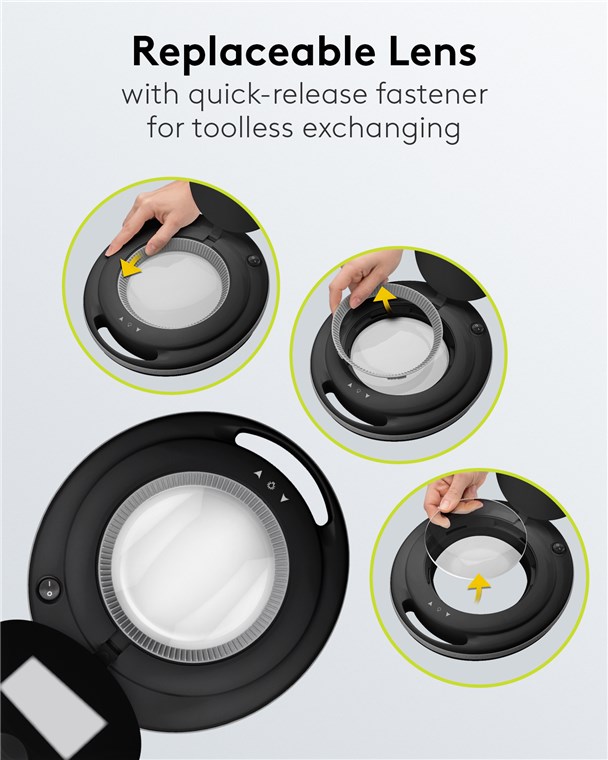

- Thanks to the quick-release, you can easily and tool-free replace the crystal glass lens with 3 dioptres and 1.75x magnification (incl. protective cap).

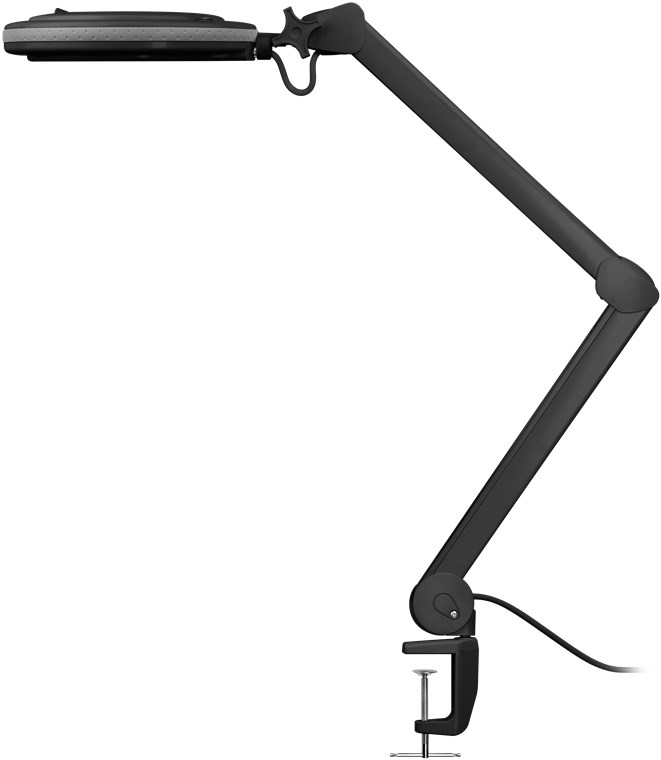

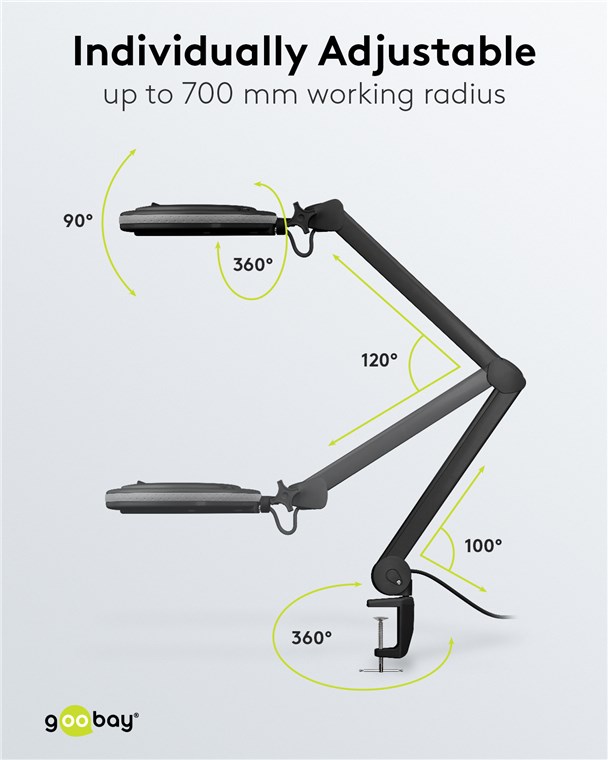

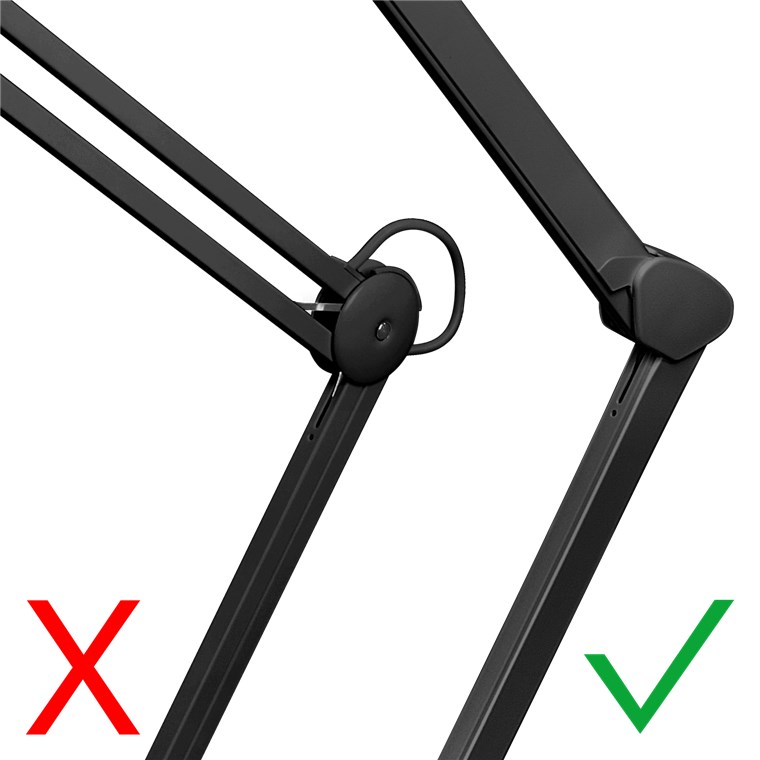

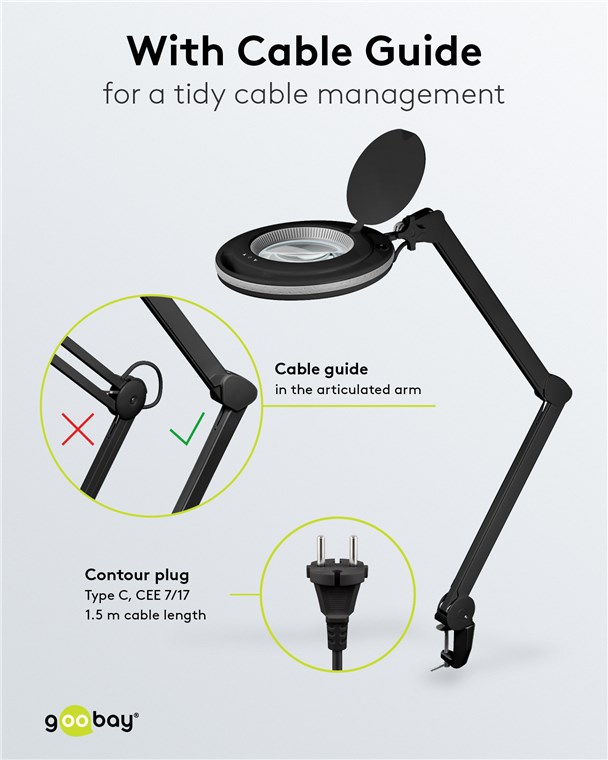

- Articulated arm of the magnifier lamp with integrated cable guide provides a flexible 700 mm working radius.
- Lens head can be tilted up to 90° and swivelled 360°, making it an ideal solution as a table magnifying glass, a desk, drawing or reading lamp.

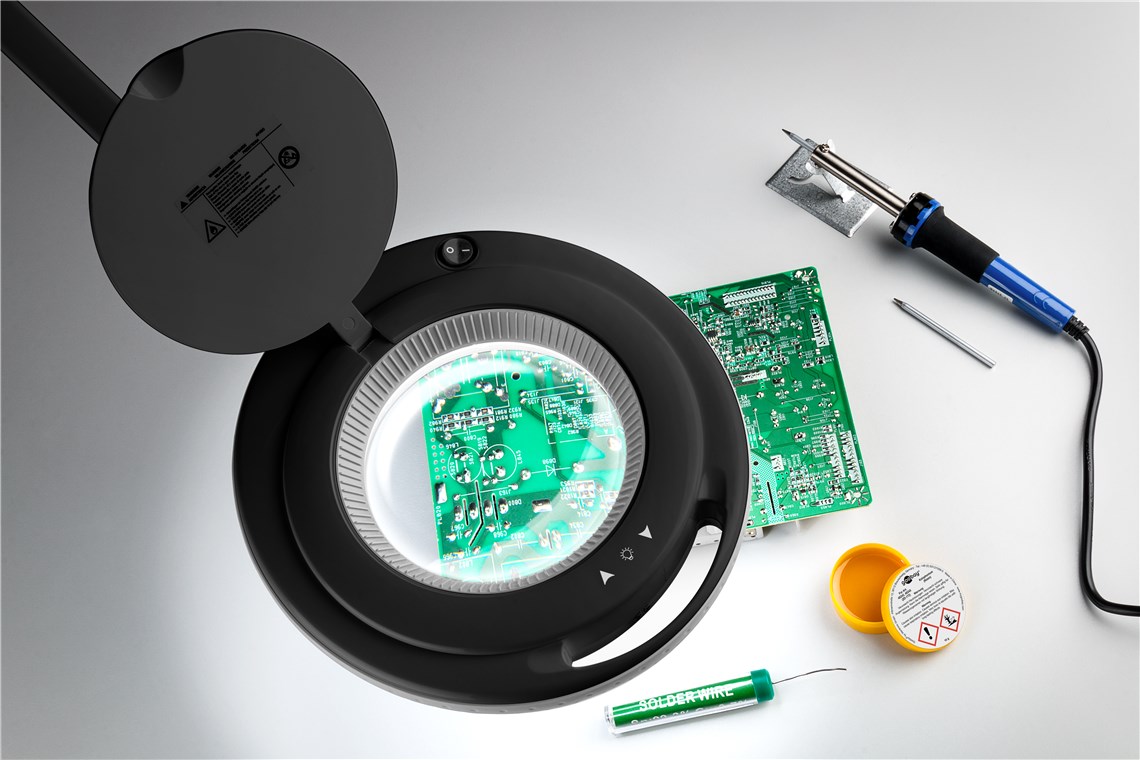

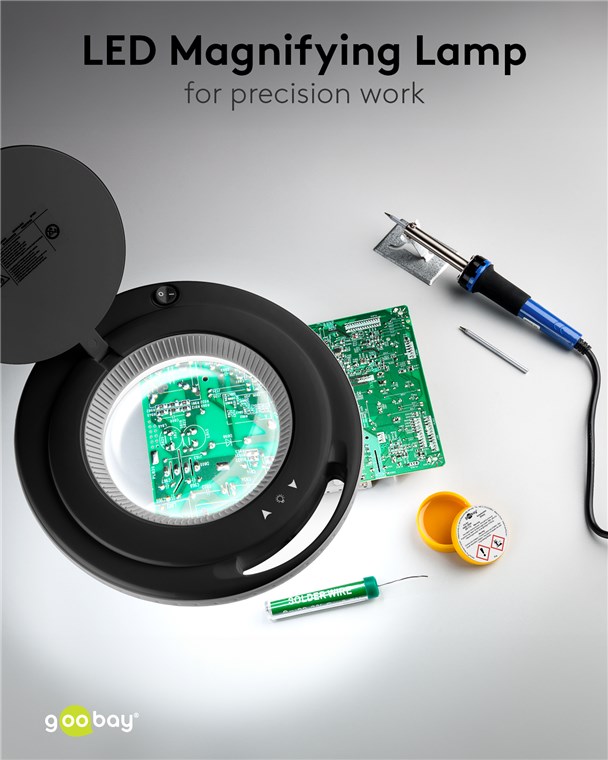

- The multi-purpose table magnifying glass is useful e.g. in the beauty sector, as a reading aid or for precision work such as embroidery, cross-stitch and soldering.

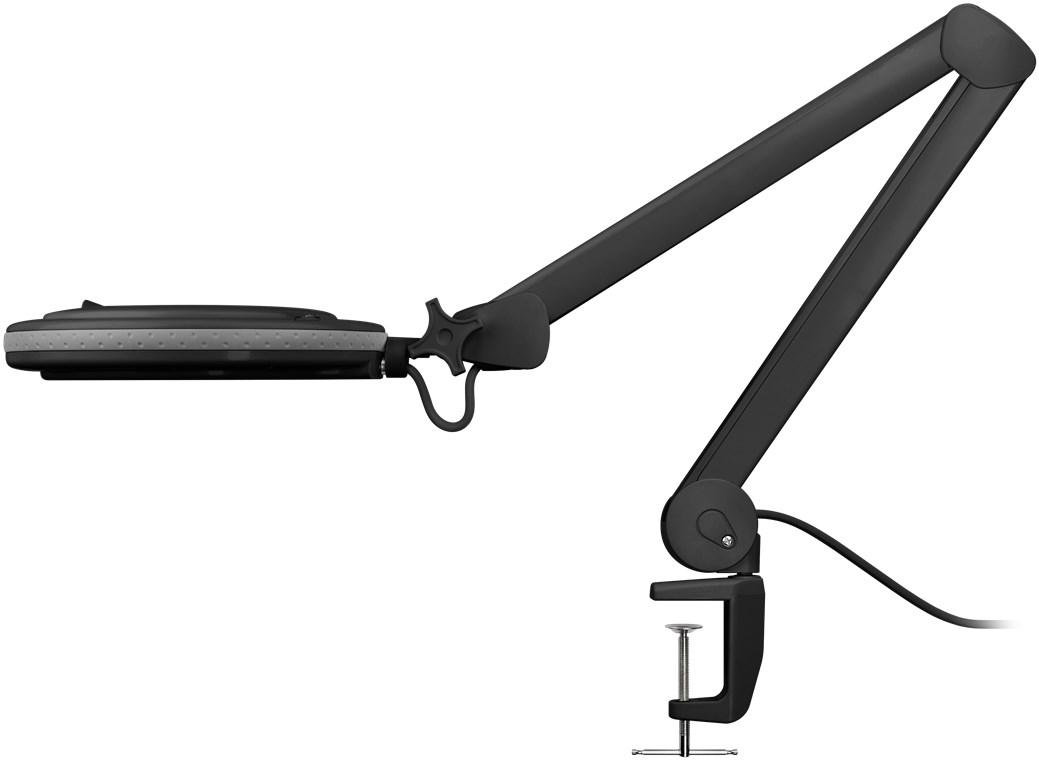

- The clip-on of the magnifying desk lamp is suitable for a table-top thickness of up to 60 mm. Replacement table clamp: 64987, matching wall bracket: 64991.
Connections
| Connection, type |

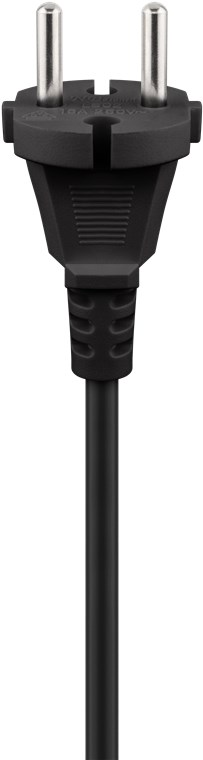

unearthed plug (CEE 7/17) |
Performance
| luminous source |
light emitting diode (LED) |
| Luminous color |
cool white |
| color temperature |
6500 K |
| Illuminate-Type |
SMD LED |
| Power consumption |
9 W |
| Dimmability |
dimmable |
| Luminous flux total |
730 lm |
| Rated luminous flux |
730 lm |
| operating voltage |
230 V (AC) |
| Useful luminous flux (Φuse) |
Useful luminous flux (Φuse) in a wide cone (120°) |
| Non-directional or directional light source |
DLS |
| color rendering index |
80 Ra |
| Lamp service life factor |
0.9 |
| weighted energy consumption |
9 kWh/1.000 h |
| Number of LEDs |
90 |
| rated lamp lifetime |
25000 hrs. |
Cable
Build
| Beam Angle |
103 ° |
| cover type |
lens |
General
| Appliance Class |
II |
| protection class |
IP20 |
| Number of switching cycles |
12500 pcs. |
| Color |
black |
| Material |
plastic, metal, glass |
| Markings |
WEEE, CE |
| Applications |
workshop |
| Special feature |
Crystal glass lens |
| Peak luminous intensity (cd) |
350 |
| Chromaticity coordinate x |
0.313 |
| Chromaticity coordinate y |
0.337 |
| R9 colour rendering index value |
1 |
| lumen maintenance factor |
0.96 |
| displacement factor (cos φ1) |
0.89 |
| Colour consistency in McAdam ellipses |
2 |
| Flicker metric (Pst LM) |
0.1 |
| Stroboscopic effect metric (SVM) |
0.1 |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |

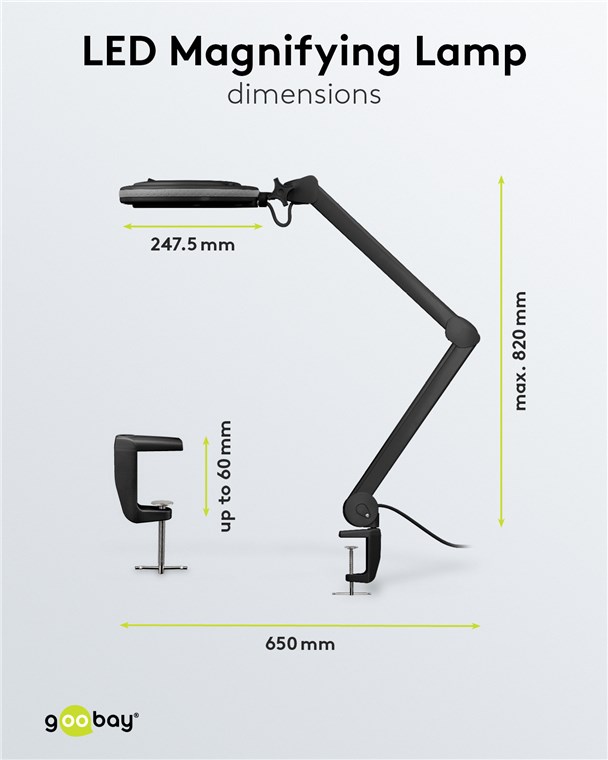

| Width |
650 mm |
| Height |
820 mm |
| depth |
230 mm |
| Weight |
2590 g |
accessory - Power supply
| Input AC frequency |
50/60 Hz |
| Input voltage |
220-240 V |
Language Scope
| packaging |
de, en, fr, it, es, nl, da, sv, cs, pl |
