Goobay

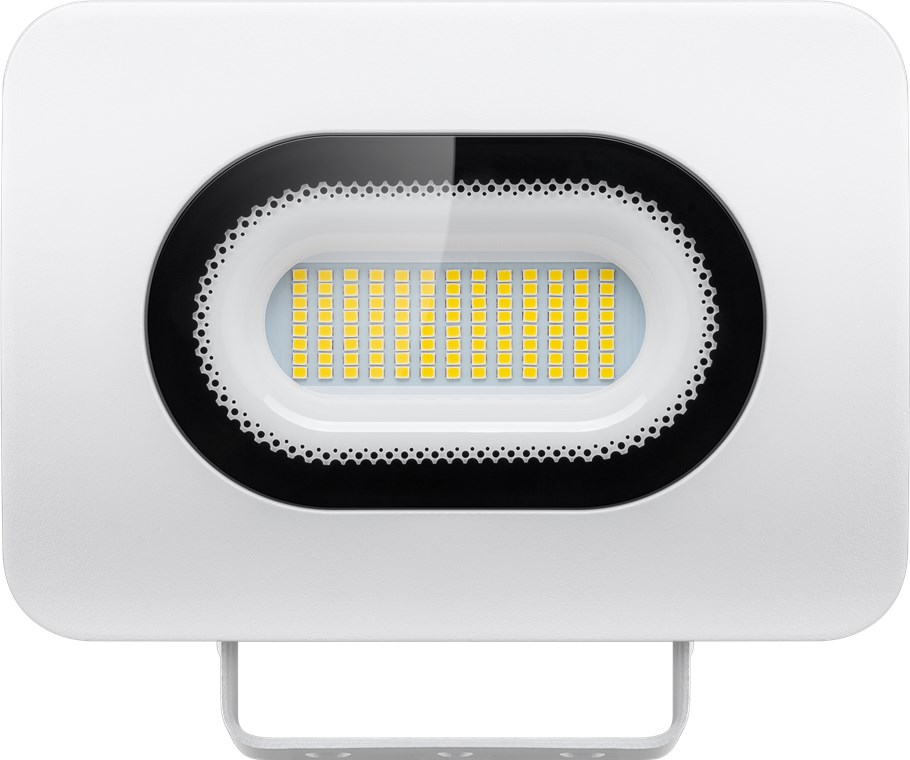

LED floodlight, 50 W, Slim Design
modern lighting solution for building entrances, garages, carports and access paths
Goobay
LED floodlight, 50 W, Slim Design
modern lighting solution for building entrances, garages, carports and access paths
Article details
  • extremely flat shape, ultramodern design and high energy efficiency
  • very long service life, thanks to integrated, non-removable LED light source
  • characterised by very bright, neutral white light with large beam angle of 110°
  • IP65 – suitable for outdoor use (-40–50°C)
  • shock-resistant aluminium die-cast housing and safety glass protect against the weather

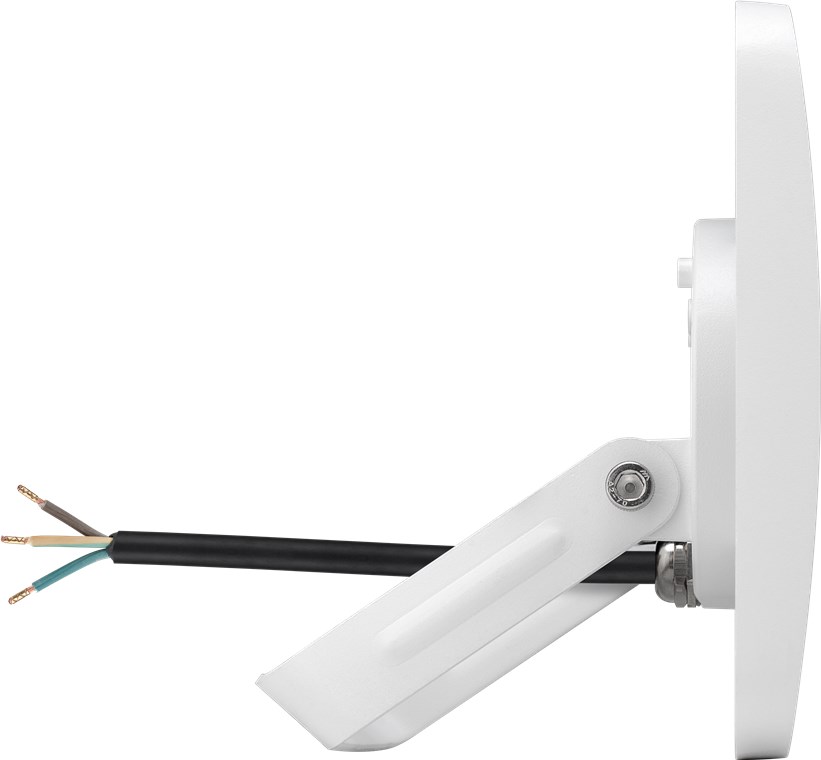

  • very stable, adjustable mounting bracket for wall mounting and approx. 30 cm connection cable with end splices
Technical specifications
Performance
luminous source
light emitting diode (LED)
Power consumption
50 W
Luminous color
classic white
Illuminate-Type
SMD LED
Number of LEDs
104
color temperature
4000 K
corresponds light bulb
290 W
Dimmability
not dimmable
Max. light range
7 m
Luminous flux
4000 lm
Rated luminous flux
4000 lm
Light yield
80 lm/W
Startup time
0.1 s
startup time to 60% light
0.1 s
color rendering index
70 Ra
electric power factor
0.9
weighted energy consumption
50 kWh/1.000 h
operating voltage
230 V (AC)
Installation height from
3 m
Installation Height up to
6 m
recommended installation height
3 - 6 m
Cable
Cable length
0.3 m
Build
Beam Angle
110 °
General
Model designation
Goobay
Color
white
Material
aluminum
Markings
WEEE, CE
Operating temperature from
-40 °C
Operating temperature up to
50 °C
Energy efficiency rating
A 874/2012/EU
protection class
IP 65
General service life
25000 hrs.
Number of switching cycles
25000 pcs.
Appliance Class
I

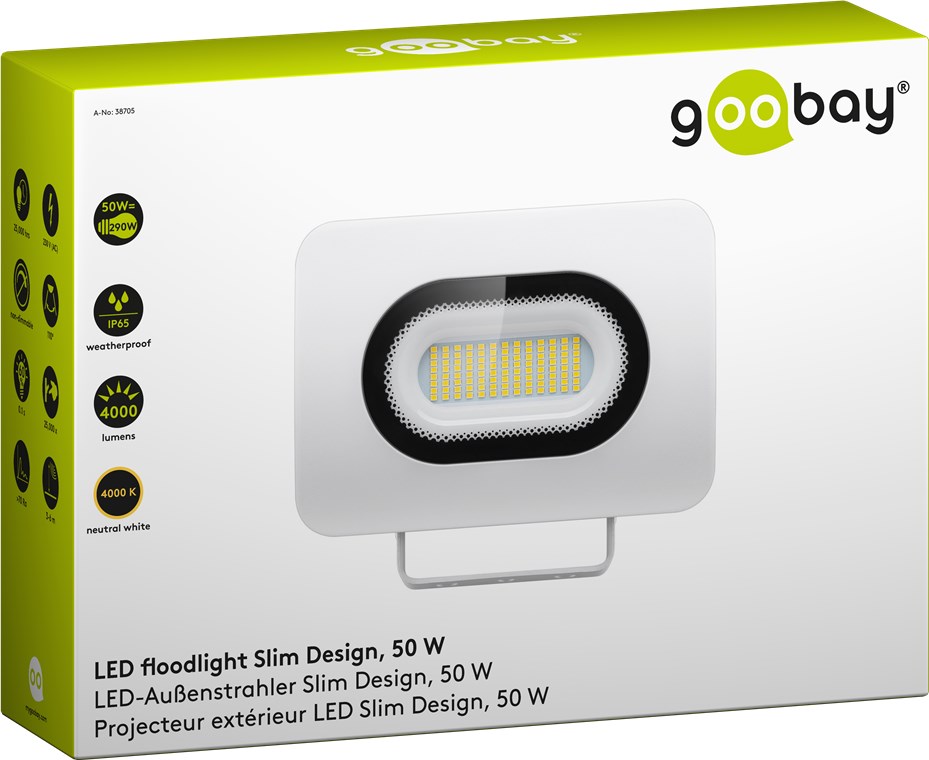

Packaging type
Retail Box
Dimensions / Weight
Length
205 mm
Width
46 mm
Height
146 mm
Weight
579 g
Consumption Unit
1 pc. in cardboard box
accessory - Power supply
Power frequency
50 Hz
Language Scope
packaging
de, en, fr, it, es, nl, da, sv, pl, cs, fi, ro, el, ru, tr
Downloads
Item: 38705
EAN: 4040849387050
