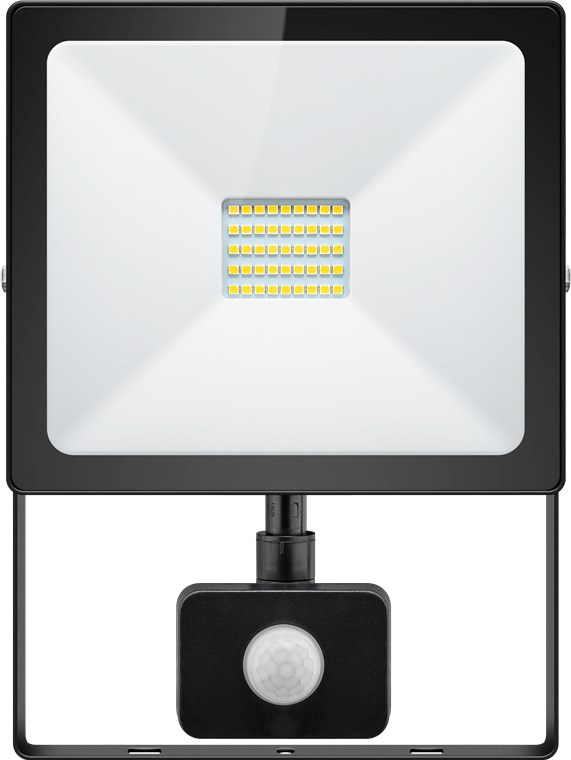

LED floodlight, 30 W, Slim Classic, with motion sensor
lighting solution with PIR sensor for building entrances, garages, carports and access paths
Goobay
LED floodlight, 30 W, Slim Classic, with motion sensor
lighting solution with PIR sensor for building entrances, garages, carports and access paths
Article details
  • extremely flat shape and high energy efficiency
  • very long service life, thanks to integrated, non-removable LED light source
  • characterised by bright, neutral white light with large beam angle of 120°
  • IP44 – splashproof (-25–40°C)
  • robust aluminium housing protects against weather

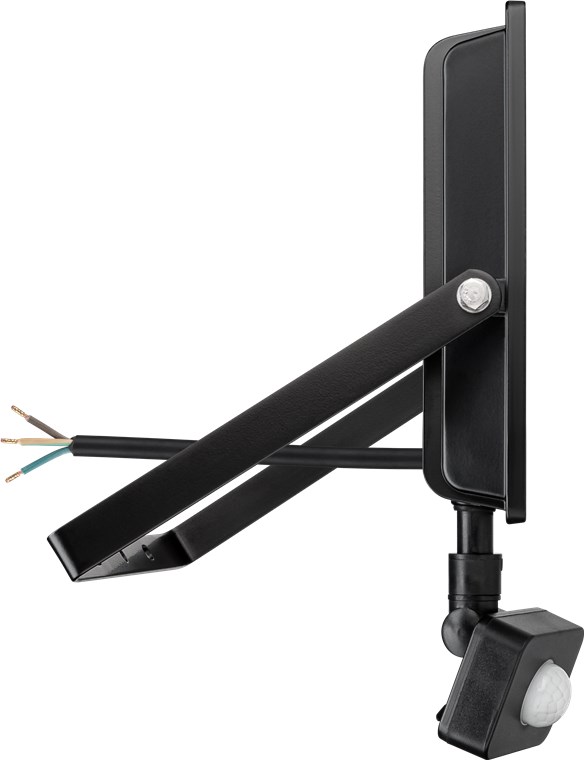

  • adjustable mounting bracket for wall mounting and approx. 30 cm connection cable with end splices

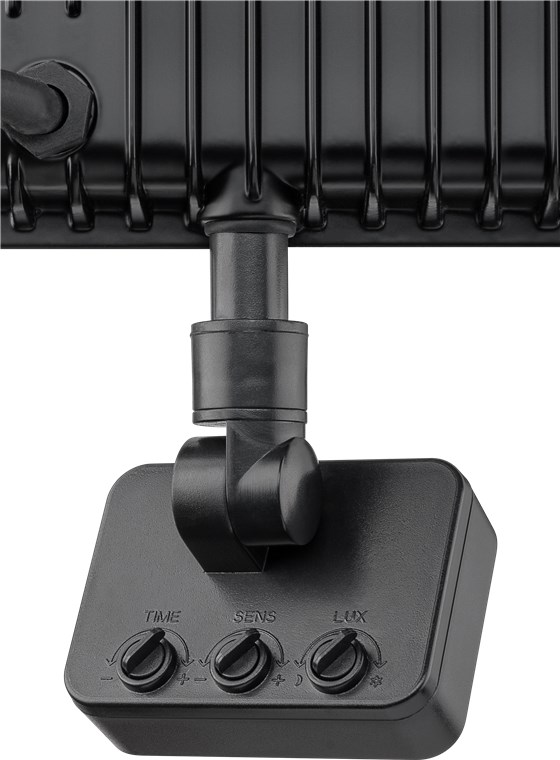

  • PIR detection range: max. 8 m at 100° angle, adjustable off-delay (10–300 sec.), light sensitivity (3–2000 lx) and range
Technical specifications
Performance
Power consumption
30 W
luminous source
light emitting diode (LED)
Luminous color
classic white
No-load power consumption
0.5 W
color temperature
4000 K
Illuminate-Type
SMD 2835 LED
operating voltage
230 V (AC)
corresponds light bulb
174 W
Dimmability
not dimmable
sensor type
passive infrared (PIR)
Luminous flux
2400 lm
Rated luminous flux
2400 lm
product.attribute.techdat-performance-max-bright-wide
9
Light yield
80 lm/W
Startup time
0.5 s
startup time to 60% light
0.5 s
color rendering index
80 Ra
electric power factor
0.9
light sensitivity adjustable
3 - 2000 lx
weighted energy consumption
31.95 kWh/1.000 h
max view angle
100 °
max. detection range
8 m
switch-off delay adjustable
10 - 300 s
recommended installation height
1.8 - 3 m
switch-off delay from
10 s
switch-off delay to
300 s
Installation height from
1.8 m
Installation Height up to
3 m
Build
Beam Angle
120 °
General
Packaging type
Retail Box
Consumption Unit
1 pc. in cardboard box
protection class
IP44
Appliance Class
I
Cable length
0.15 m
Model designation
Goobay
Color
black
Material
aluminum
Markings
CE, WEEE
Operating temperature from
-25 °C
Operating temperature up to
40 °C
Width
170 mm
Energy efficiency rating
A
Height
224 mm
General service life
30000 hrs.
depth
28 mm
Number of switching cycles
30000 pcs.
Weight
590 g
€24.98 RRP
Packing units:
1 / 12
Packaging type
Power consumption
Item: 39013
EAN: 4040849390135
