Product and packaging similar. Subject to modifications and errors.

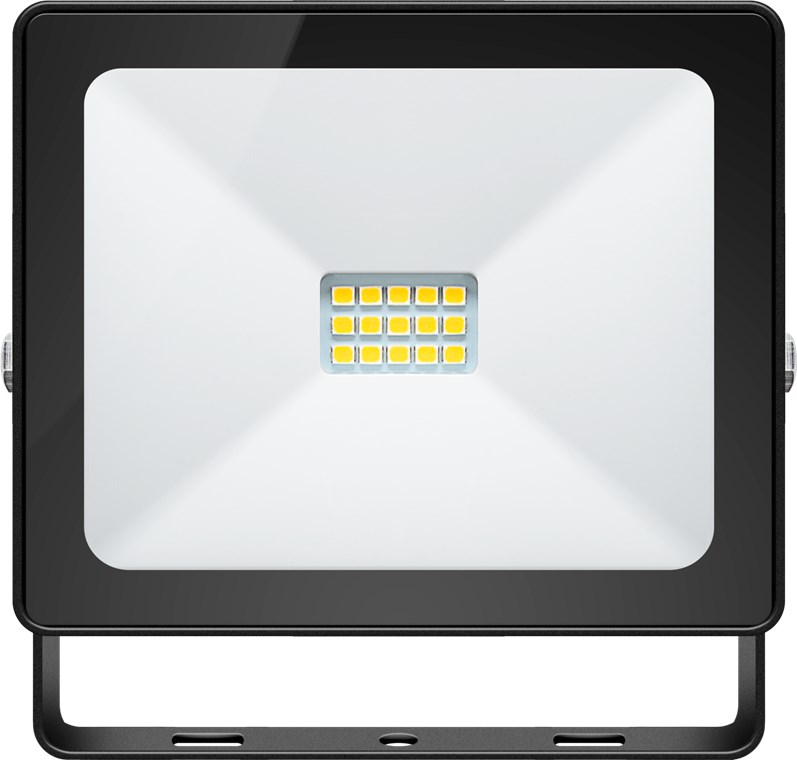

LED floodlight, 10 W, Slim Classic
lighting solution for building entrances, garages, carports and access paths
- extremely flat shape and high energy efficiency
- very long service life, thanks to integrated, non-removable LED light source
- characterised by bright, neutral white light with large beam angle of 120°
- IP65 – suitable for outdoor use (-25–40°C)
- robust aluminium housing protects against weather

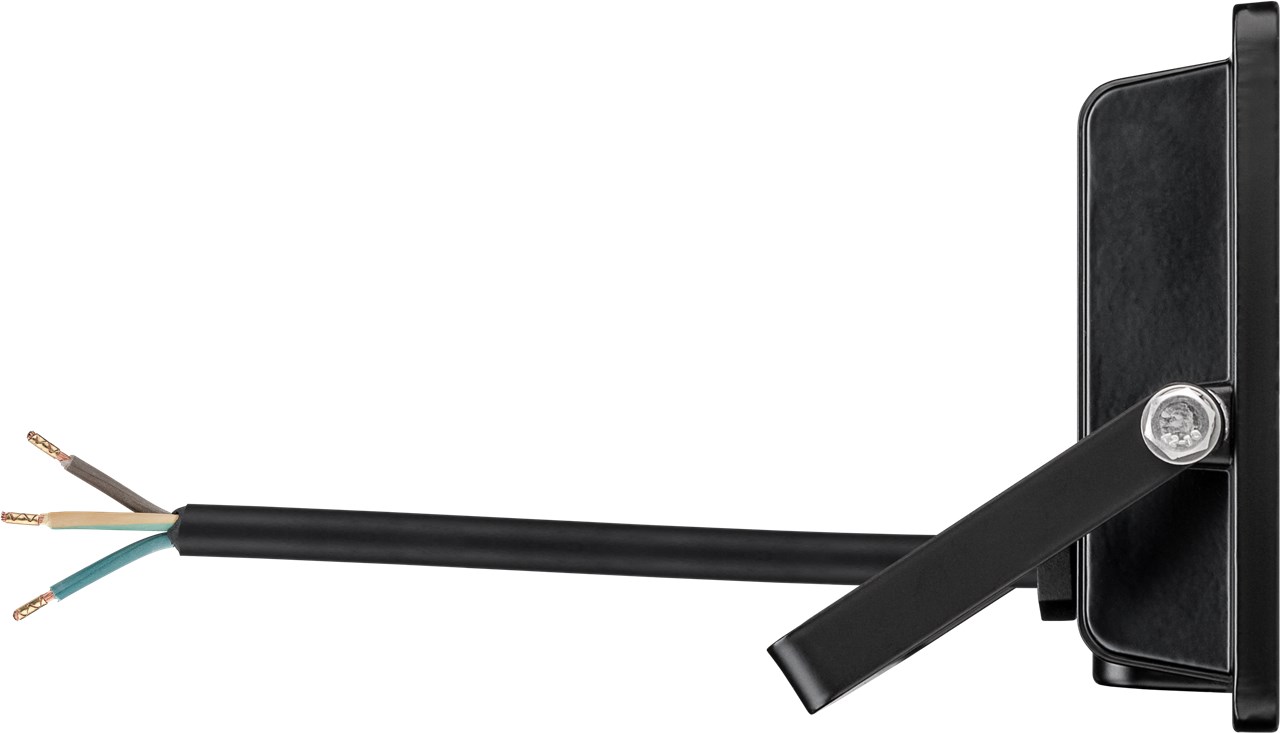

- adjustable mounting bracket for wall mounting and approx. 15 cm connection cable with end splices
Battery
Performance
| luminous source |
light emitting diode (LED) |
| operating voltage |
230 V (AC) |
| Illuminate-Type |
SMD 2835 LED |
| Number of LEDs |
15 |
| Dimmability |
not dimmable |
| recommended installation height |
1.8 - 2.5 m |
| Max. light range |
5 m |
| Luminous flux total |
800 lm |
| Rated luminous flux |
800 lm |
| Power consumption |
10 W |
| corresponds light bulb |
64 W |
| weighted energy consumption |
11 kWh/1.000 h |
| Light yield |
80 lm/W |
| Luminous color |
classic white |
| Startup time |
0.5 s |
| color temperature |
4000 K |
| startup time to 60% light |
0.5 s |
| color rendering index |
80 Ra |
| electric power factor |
0.5 |
| Installation height from |
1.8 m |
| Installation Height up to |
2.5 m |
Cable
Build
General
| Number of switching cycles |
30000 pcs. |
| Appliance Class |
I |
| protection class |
IP65 |
| Color |
black |
| Energy efficiency rating |
A+ 874/2012/EU |
| General service life |
30000 hrs. |
| Material |
Aluminium |
| Markings |
WEEE, CE |
| Operating temperature from |
-25 °C |
| Operating temperature up to |
40 °C |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Width |
110 mm |
| Height |
90 mm |
| depth |
25 mm |
| Weight |
210 g |
accessory - Power supply
Language Scope
| packaging |
de, en, fr, it, es, nl, da, sv, pl, cs, fi, ro, el, ru, tr |
