HDMI™/4K2K 7.1 audio extractor
extracts the audio signal from the HDMI™ source and provides it as a separate transmission
- complies with HDMI™, HDCP 1.2
- compatible with high-bit-rate (HBR) audio
- supports HDMI™ audio sampling rates of up to 192 KHz
- supports optical S/PDIF audio sampling rates of up to 192 KHz
- supports 4K2K, 3D-capable
- easy to install and use
Labelling
| Disclaimer |
all brand names are registered trademarks of their owners., The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. |
Connections
| Input, type |
HDMI™ female (Type A) |
| Output 2, type |
Toslink male |
| Connection, type |
HDMI™ female (Type A) |
| Output, type |
2.5 mm female (3-pin, stereo) |
| Output 3, type |
HDMI™ female (Type A) |
| Connection 2, type |
Toslink male |
| Connection 3, type |
3.5 mm female (3-pin, stereo) |
ErP
| Average active efficiency |
79 % |
| Efficiency at low load (10 %) |
72.9 % |
| No-load power consumption |
0.09 W |
Device connections
| number of inputs |
1 |
| Number of outputs |
4 |
Signal transmission
| supported audio standards |
Dolby Digital 5.1 (AC-3), Dolby Digital Plus, DTS-HD HR, 4K 3D, LPCM 2.0, LPCM 5.1, LPCM 7.1, DTS-HD MA |
| Supported video standards |
4K/60Hz (3840x2160) UHD |
General
| Color |
black |
| Material |
metal |
| Markings |
CE, WEEE |
| Operating temperature up to |
40 °C |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
95 mm |
| Width |
82 mm |
| Height |
24 mm |
| Weight |
382 g |
Scope of delivery
| power Supply |
power supply |
| Scope of delivery |
manual, power supply |

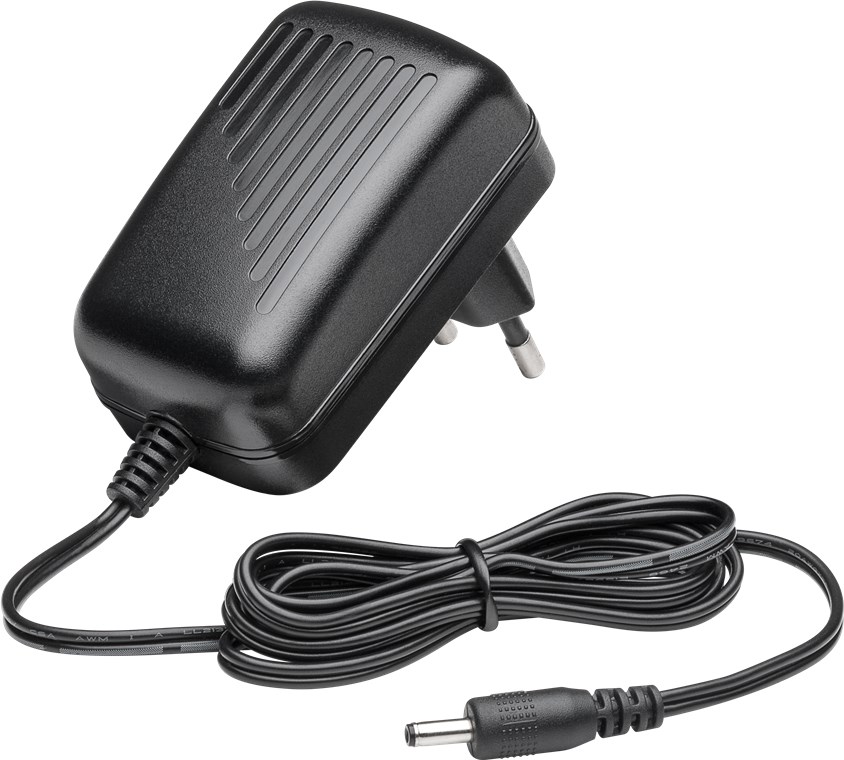

accessory - Power supply
| Cable Length |
1.4 mm |
| Weight |
77.5 g |
| Dimensions |
60,9x27,1x72,6 |
| Output current |
2 A |
| Input AC frequency |
50/60 Hz |
| Input voltage |
100-240 V |
