HDMI™ Switch 2 to 1
8K@60Hz

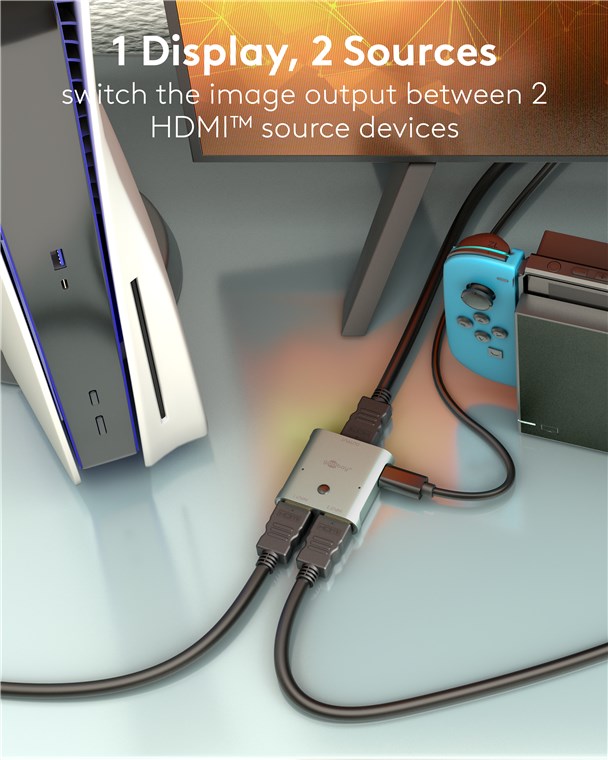

Two is better than one: Your TV or monitor only has one HDMI™ input, but you regularly use your game console and laptop on the big screen? With the HDMI™ switcher, you can connect two source devices to your TV at the same time and switch between them at the touch of a button. This avoids having to constantly switch cables and protects the connectors and ports.

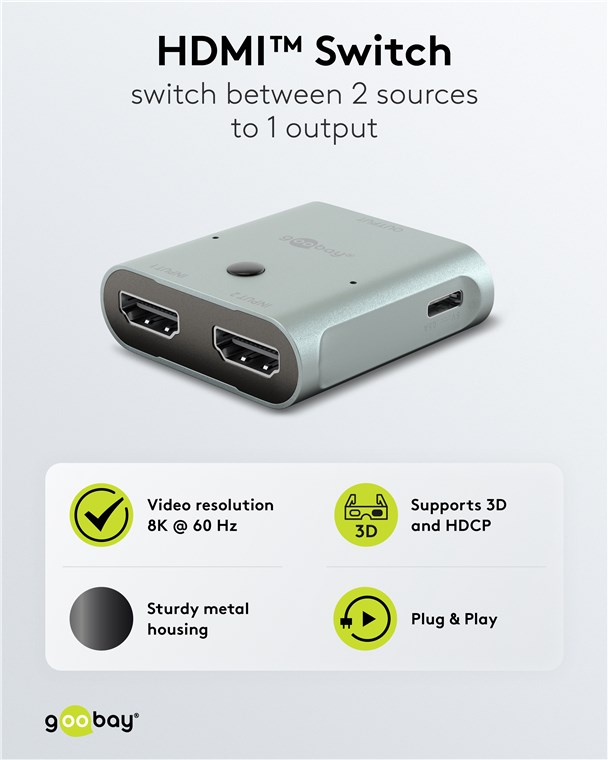

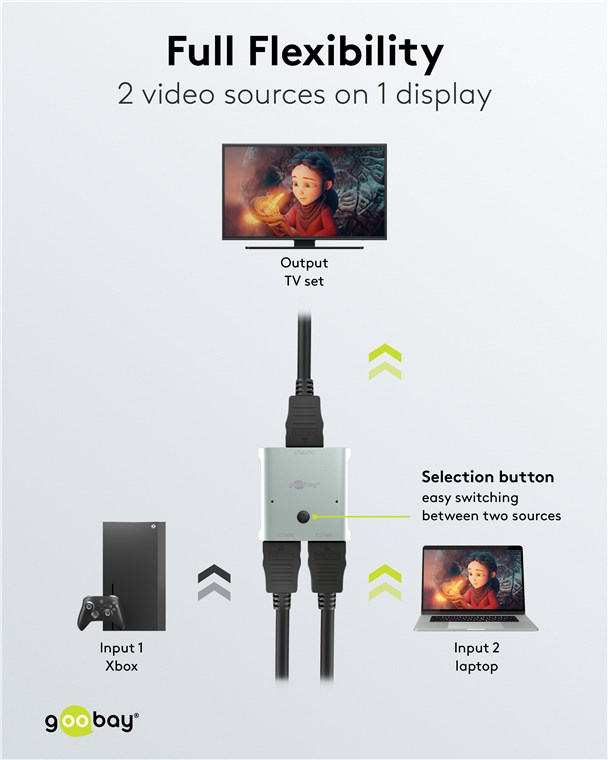

- The HDMI™ switch transmits signals from 2x input devices such as game consoles, laptops or Blu-ray players to 1x output device such as a TV, monitor or projector
- High resolution: The HDMI™ switcher 2 in 1 out supports resolutions up to 8K @ 60 Hz, 3D content and HDCP

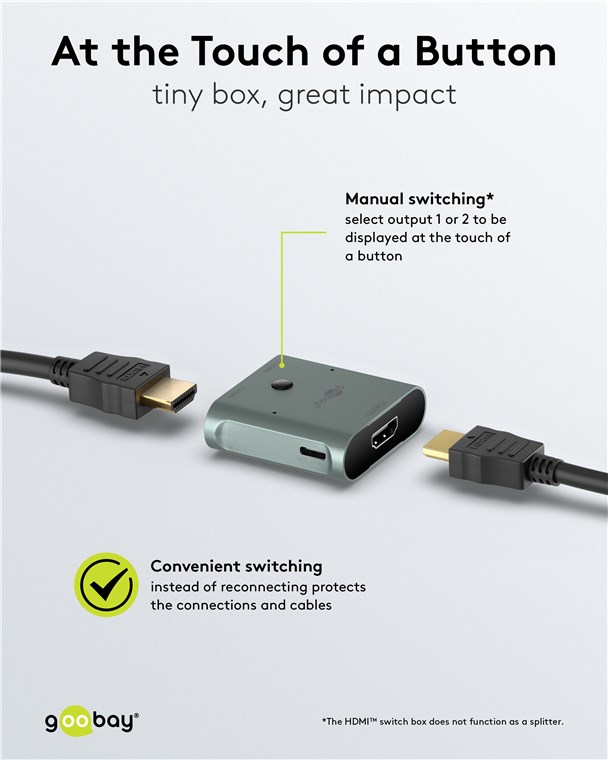

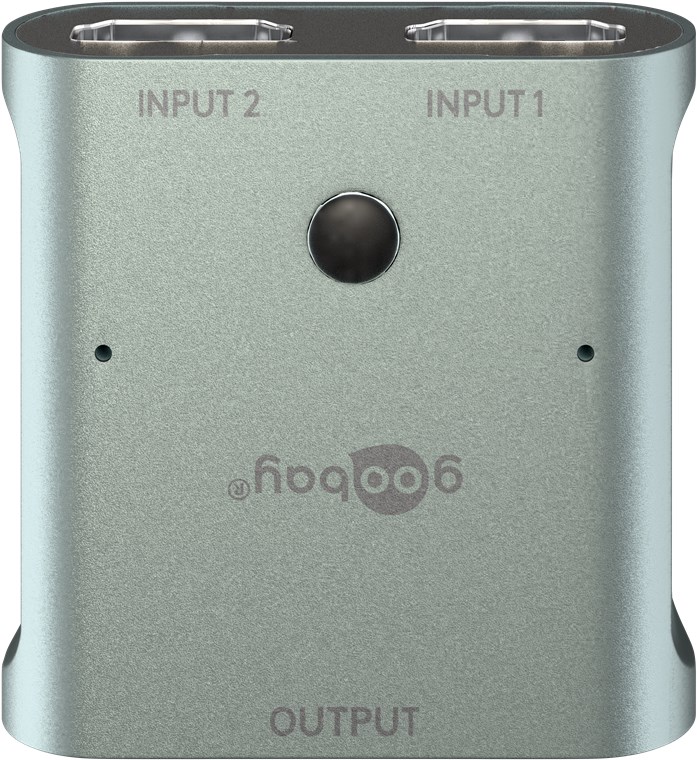

- 2 inputs, 1 display: At the touch of a button, either input 1 or input 2 is mirrored on the output display
- The convenient switch on the HDMI™ extender eliminates the need to reconnect cables and protects the connections
- Less cable clutter between Xbox, PlayStation and TV: Instead of connecting two long cables to the display, one long cable between the switch box and the TV is sufficient
- The HDMI™ switchbox 2x1 is powered via the integrated USB-C™ connection (cable not included)
- Note: The HDMI™ switcher does not work as a splitter!
Power supply via USB-C™ power adapter with 5V DC min. 0.5A (2,5W) power.
Labelling
| Disclaimer |
all brand names are registered trademarks of their owners., The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. |

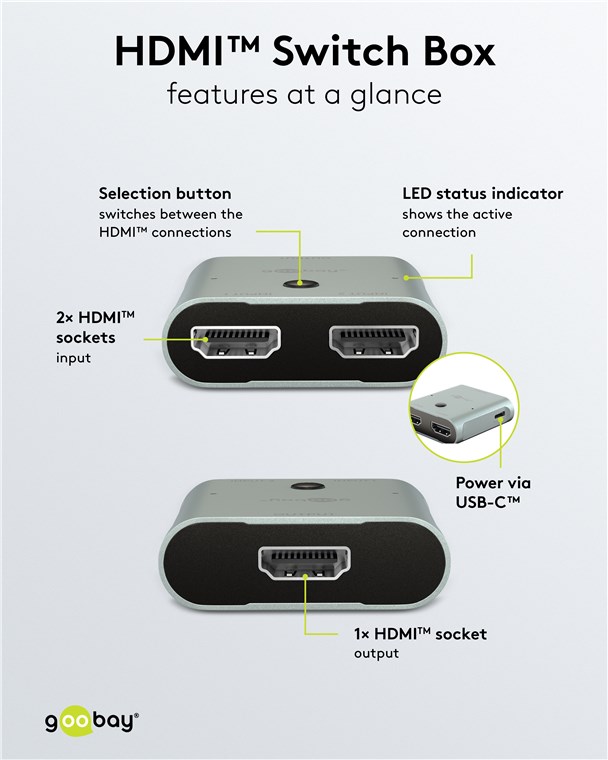

Connections

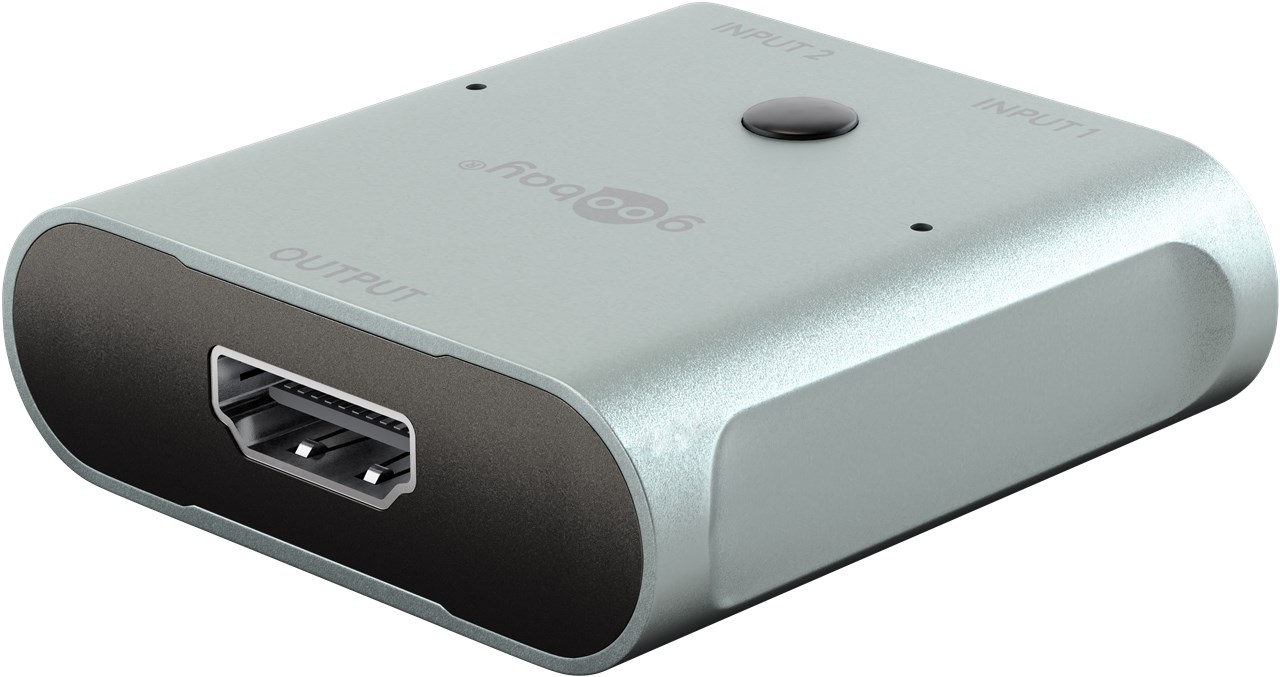

| Output, type |
HDMI™ female (Type A) |

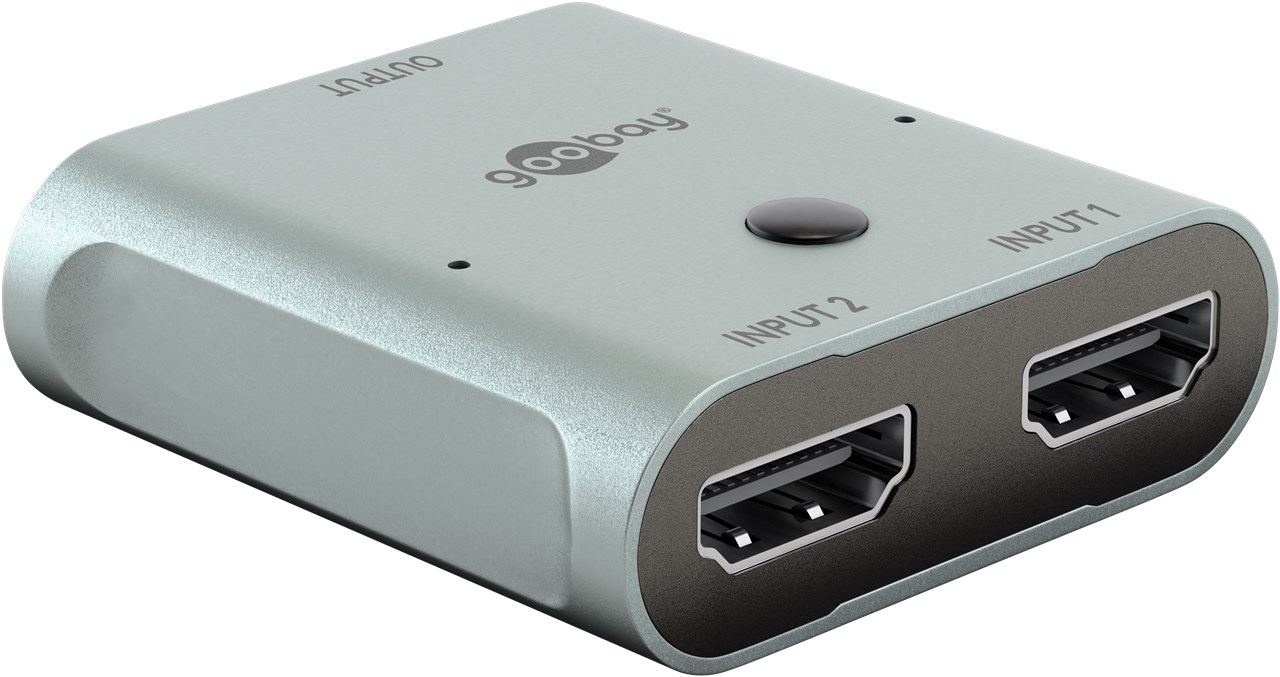

| Input, type |
2x HDMI™ female (Type A) |
Device connections
| Input, Voltage Range |
5 (DC) V |
Signal transmission
| Signal direction |
bidirectional |
| supported audio standards |
Dolby Atmos, Dolby Digital HD (DTS HD), Dolby Digital TrueHD, Dolby Digital 5.1 (AC-3), Dolby 5.1, Dolby 7.1, LPCM, Stereo, Enhanced Audio Return Channel (eARC), Audio Return Channel (ARC) |
| Max. resolution |
8K/60Hz (7680x4320) Full UHD |
General
| Packaging type |
Bulk |
| Color |
silver |
| Markings |
CE, WEEE |
| Operating temperature up to |
40 °C |

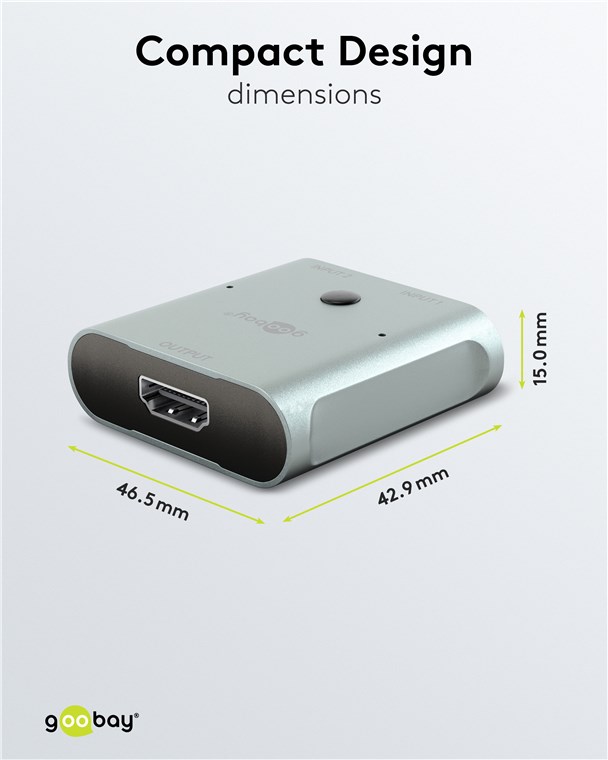

Dimensions / Weight
| Height |
15 mm |
| Length |
46 mm |
| Weight |
30 g |
| Width |
42.9 mm |
| Consumption Unit |
1 pc. in cardboard box |
Scope of delivery
