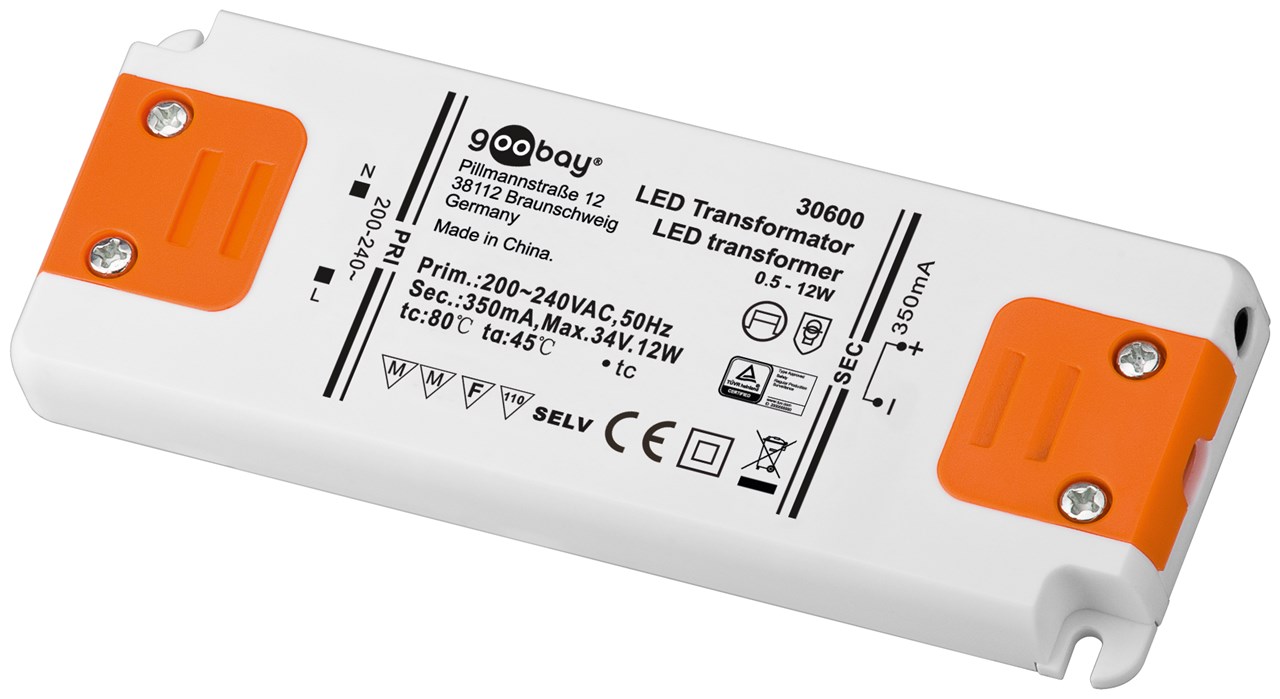

Constant Current LED Transformer 350 mA, 12 W
350 mA CC for LEDs up to 12 W total load
- DC current source for LEDs with electronic ballast unit
- flat design for space-saving installation
- the transformer is approved for installation in furniture
- safe electronic separation as per protection class II
- constant output current for series circuits
Connections
| Input, type |
Screw clamp |
| Output, type |
Screw clamp |
Performance
| Dimmability |
not dimmable |
| max. performance |
12 W |
| minimum load |
0.5 |
| No-load power consumption |
0.5 W |
Device connections
| Output, max. amperage |
0.35 A |
| Number of outputs |
2 |
| number of inputs |
2 |
| Input Cross Section |
0.75 mm² |
| Output Cross Section |
0.75 mm² |
| Input, Voltage Range |
200 - 240 (AC) V |
General
| Markings |
WEEE, CE, bauartgeprüft: TÜV Rheinland |
| protection class |
IP20 |
| Operating temperature from |
-20 °C |
| Operating temperature up to |
45 °C |
| Appliance Class |
II |
| Packaging type |

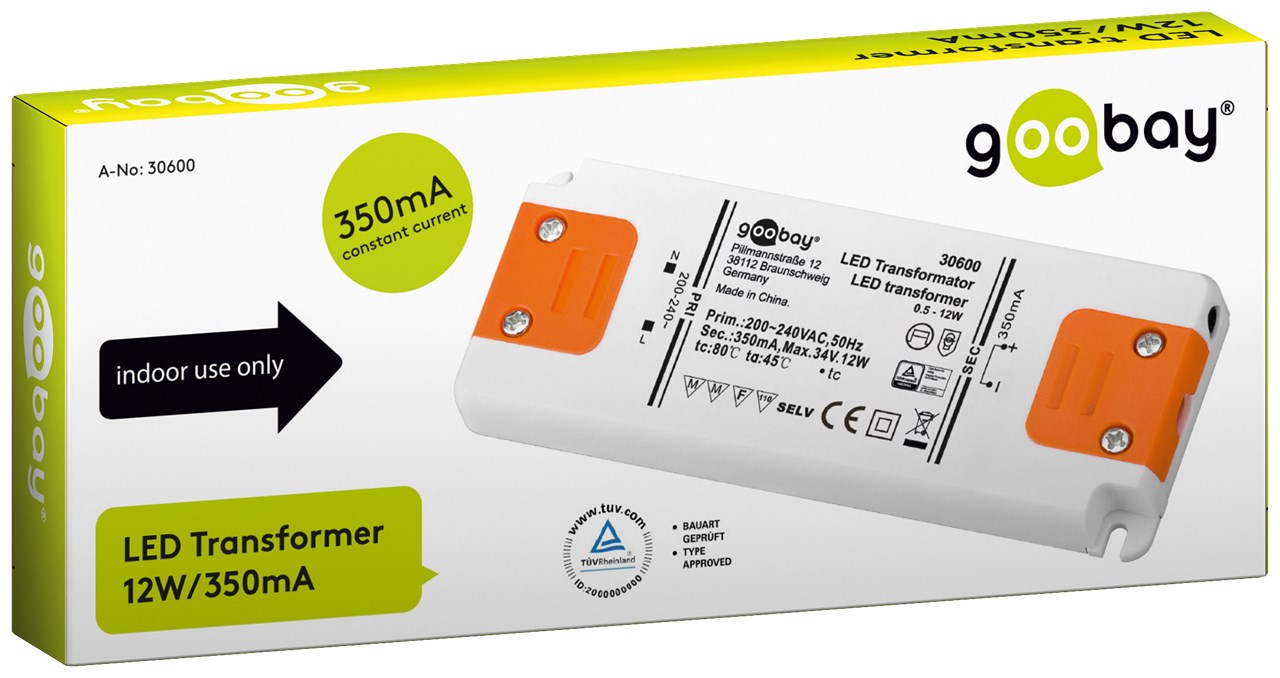

Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
127 mm |
| Width |
50 mm |
| Height |
10 mm |
| Weight |
54 g |
