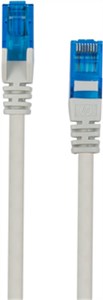

CAT 6 Patch Cable, U/UTP, grey
copper-clad aluminium wire (CCA)
CAT 6 Patch Cable, U/UTP, grey
copper-clad aluminium wire (CCA)
Article details
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Prewired, unshielded LAN cable with 2x RJ45 plugs for connecting network components
- High-quality copper-clad aluminium wire (CCA) and gold-plated contacts guarantee an excellent, powerful network connection.
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Bend protection and a sturdy PVC jacket effectively protect the Ethernet cable from breakage.
- The CAT 6 network cable is suitable for Gigabit Ethernet with a speed of up to 10/100/1000 Mbit/s.
- Length of the network cable indicated on the overmoulded slimline strain relief.
- Network connector: pair sequence according to EIA/TIA 568B
Technical specifications
Connections
Connection, type
RJ45 male (8P8C)
Connection 2, type
RJ45 male (8P8C)
Kink protection
both sides
Latch protection
both sides
Connection, shielding
no
Contacting
EIA/TIA-568 B
Cable
Specification
CAT 6
Cable type
round cable
Shielding class
U/UTP
AWG
24/7 (stranded)
Inner conductor material
CCA (copper-clad aluminium)
Material cable sheath
PVC
Cable sheath diameter (approx.)
5.8 mm
bending radius >
46.4 mm
Cable length
15 m
Signal transmission
max. bandwidth
250 MHz
General
Color
grey
Markings
WEEE, CE
Operating temperature from
-20 °C
Operating temperature up to
60 °C
Packaging type
Bulk
Dimensions / Weight
Consumption Unit
1 pc. in polybag
Downloads
Packing units:
1 / 15
Item: 68449
EAN: 4040849684494
