Goobay

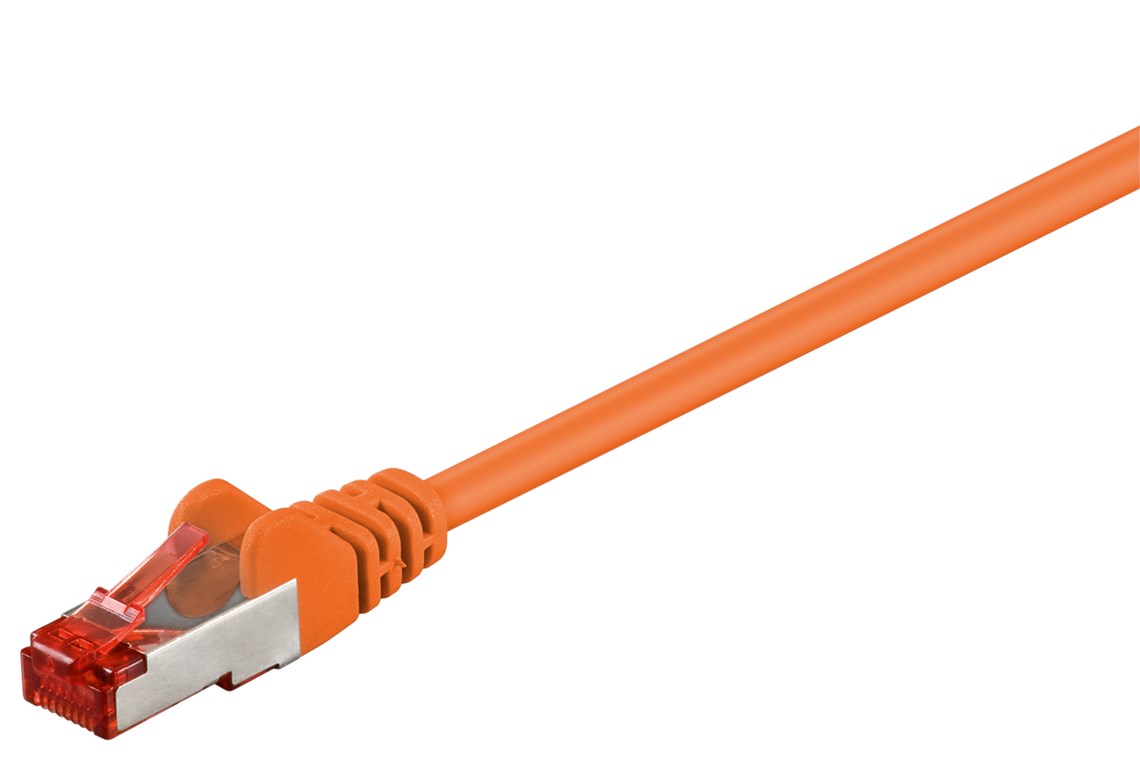

CAT 6 Patch Cable, S/FTP (PiMF), orange
copper-clad aluminium wire (CCA)
Goobay
CAT 6 Patch Cable, S/FTP (PiMF), orange
copper-clad aluminium wire (CCA)
Article details
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
  • Prewired, double-shielded LAN cable with 2x RJ45 plugs for connecting network components
  • CAT 6 internet cable suitable for Gigabit Ethernet with a speed of up to 10/100/1000 Mbit/s
  • S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
  • High-quality copper-clad aluminium wire (CCA) and gold-plated contacts guarantee an excellent, powerful network connection.
  • Bend protection and a sturdy PVC jacket effectively protect the Ethernet cable from breakage.
  • Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
  • Length of the network cable indicated on the overmoulded slimline strain relief.
Technical specifications
Connections
Connection, type
RJ45 male (8P8C)
Connection 2, type
RJ45 male (8P8C)
Kink protection
both sides
Latch protection
both sides
Connection, shielding
yes
Contacting
EIA/TIA-568 B
Cable
Specification
CAT 6
Cable type
round cable
Shielding class
S/FTP (PiMF)
Number of shieldings
2 x
Type 1, shielding
foil (alu) PiMF
Type 2, shielding
braid (alu) overall shield
AWG
27/7 (stranded)
Inner conductor material
CCA (copper-clad aluminium)
Material cable sheath
PVC
Cable sheath diameter (approx.)
5.9 mm
bending radius >
48 mm
Cable length
0.25 m
Signal transmission
max. bandwidth
250 MHz
General
Color
orange
Markings
WEEE, CE
Special feature
Length indication on connector
Operating temperature from
-20 °C
Operating temperature up to
60 °C
Packaging type
Bulk
Dimensions / Weight
Consumption Unit
1 pc. in polybag
Downloads
€5.29 RRP
Packing units:
1 / 10 / 260
Packaging type
Item: 95456
EAN: 4040849954566
