Goobay

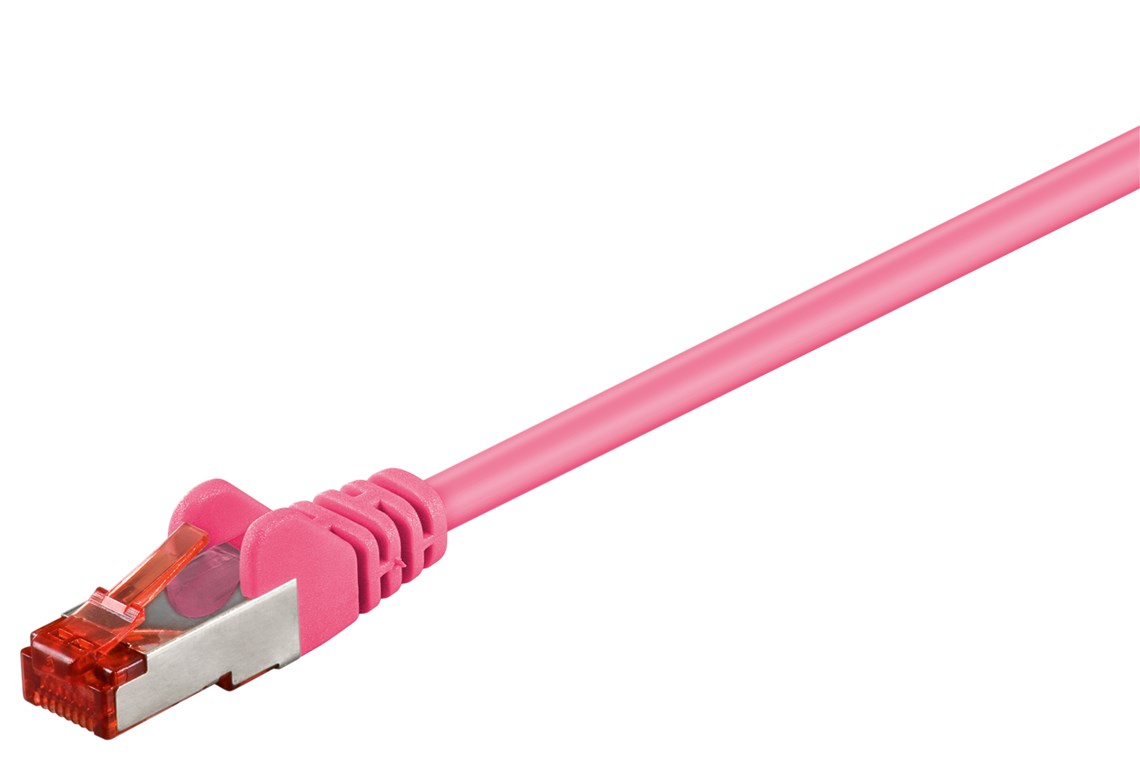

CAT 6 patch cable S/FTP (PiMF), magenta
CCA
Goobay
CAT 6 patch cable S/FTP (PiMF), magenta
CCA
Article details
  • double shielded LAN/network cable to connect network components with 2 x RJ45 connectors
  • with gold plated PINs
  • pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
  • with length indication on the slimline strain relief
  • with latch protection
  • pair-sequence acc. to EIA/TIA 568B
  • suitable for Gigabit (10/100/1000 Mbit)
Technical specifications
Connections
Connection, shielding
yes
Latch protection
both sides
Connection, type
RJ45 male (8P8C)
Connection 2, type
RJ45 male (8P8C)
Contacting
EIA/TIA-568B
Cable
Cable length
0.25 m
Shielding class
S/FTP (PiMF)
Specification
CAT 6
Inner conductor material
CCA (copper-clad aluminium)
Material cable sheath
PVC
AWG
27/7 (stranded)
Number of shieldings
2 x
Type 1, shielding
foil (alu) PiMF
Type 2, shielding
braid (alu) overall shield
Cable sheath diameter (approx.)
5.9 mm
Cable type
round cable
Kink protection
both sides
Signal transmission
max. bandwidth
250 MHz
General
Packaging type
Bulk
Consumption Unit
1 pc. in polybag
Markings
WEEE, CE
Color
magenta
€5.29 RRP
Packing units:
1 / 10 / 260
Packaging type
Cable length
Item: 95455
EAN: 4040849954559
