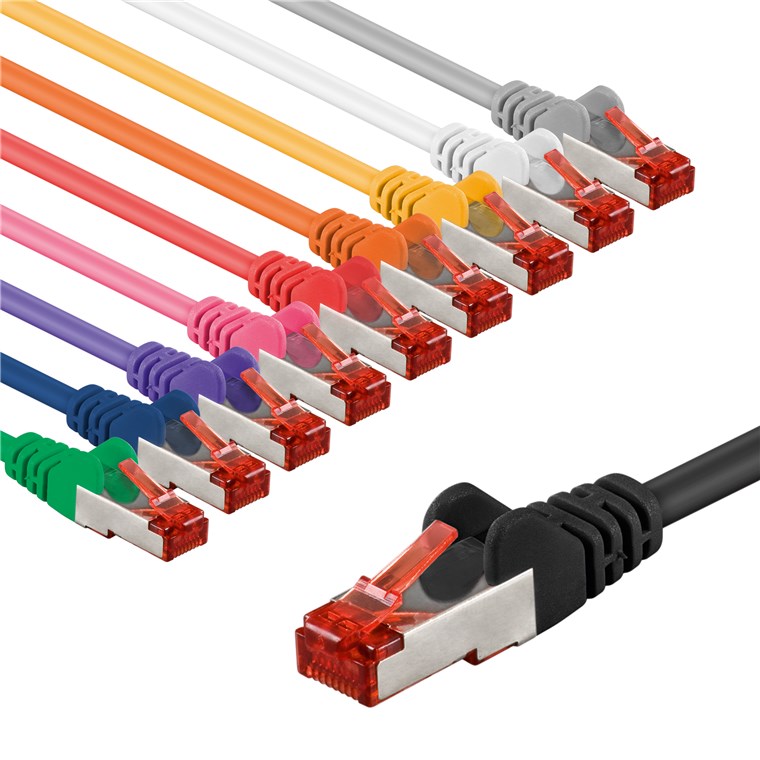

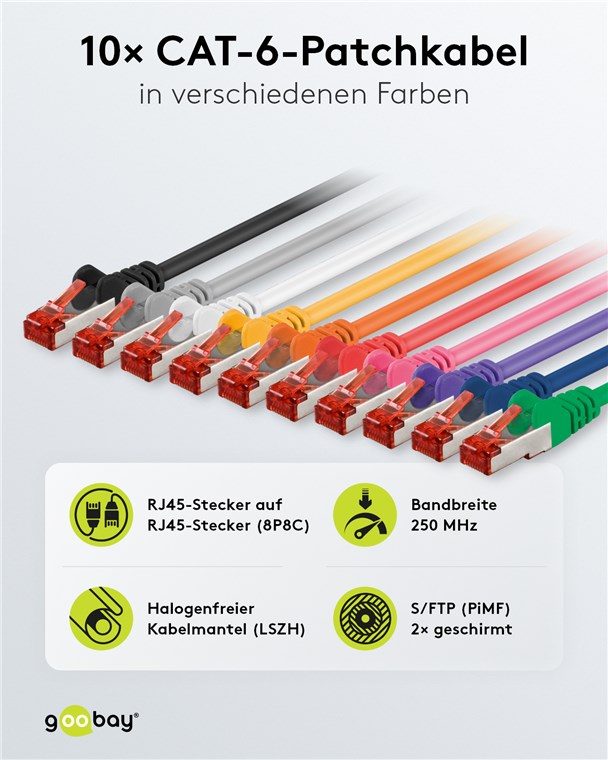

CAT 6 Patch Cable S/FTP (PiMF), 1 m, Set in 10 Colours
copper conductor (CU), halogen-free cable sheath (LSZH)
CAT 6 Patch Cable S/FTP (PiMF), 1 m, Set in 10 Colours
copper conductor (CU), halogen-free cable sheath (LSZH)
Article details
The handy set of Goobay CAT cables in 10 different colours transmits signals in maximum quality at extreme speed and ensures a stable connection. Our connection cables and plugs are characterised by high-quality inner conductors, robust cable sheathing and precision-fit plugs. Goobay always has the right product for your network application - for both home and company networks. Simply. All. You Need!
- Prewired, double-shielded LAN cable with RJ45 plugs for connecting network components

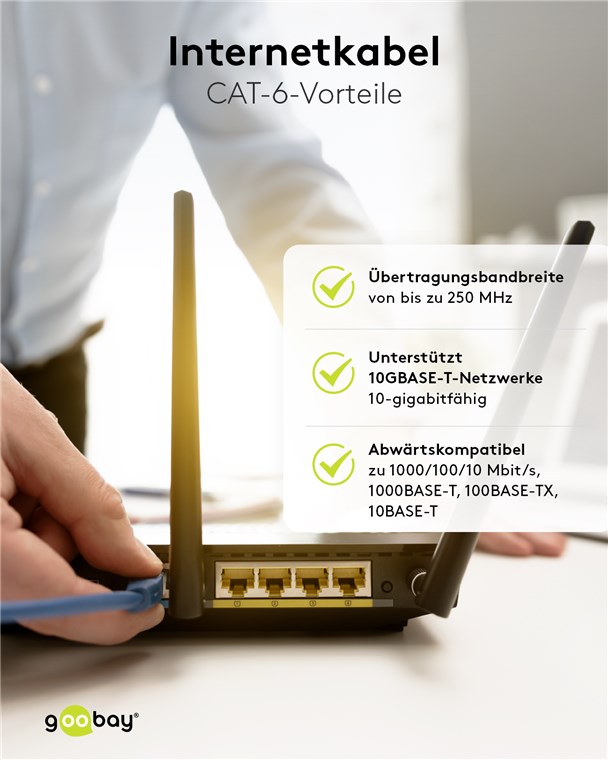

- CAT 6 internet cable suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s

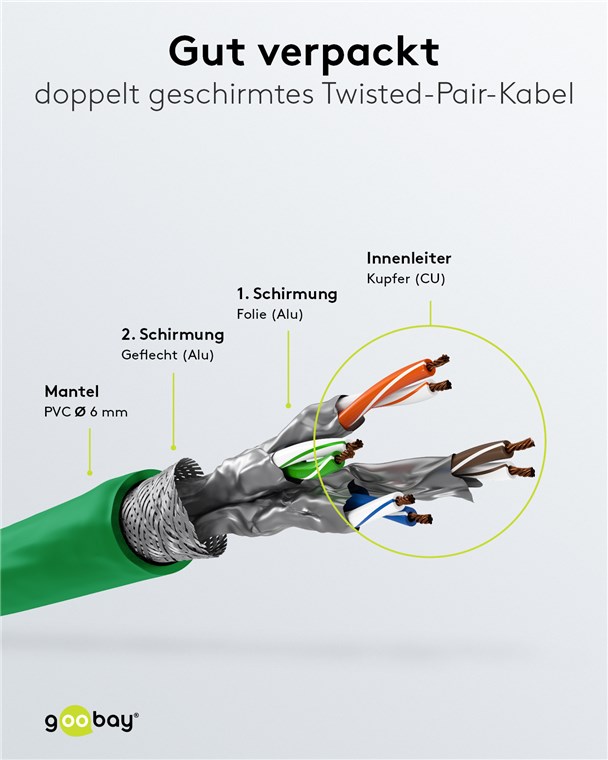

- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) and gold-plated contacts guarantee an excellent, powerful network connection.
- Bend protection and a sturdy jacket effectively protect the network cable from breakage.
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Ethernet cable is CAT 6 tested and suitable for Power over Ethernet (PoE, PoE+).

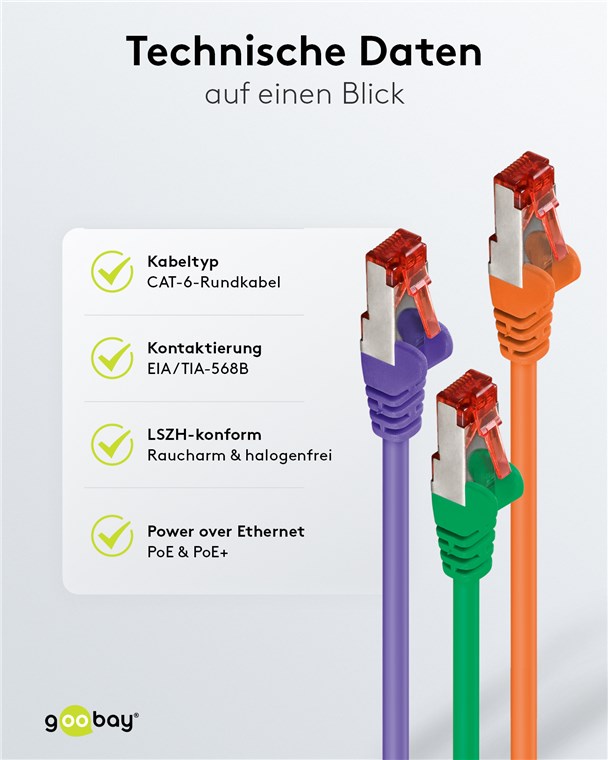

Technical specifications
Connections
Connection, type
RJ45 male (8P8C)
Connection 2, type
RJ45 male (8P8C)
Kink protection
both sides
Latch protection
both sides
Connection, shielding
yes
Contacting
EIA/TIA-568 B
Cable
Cable length
1 m
Material cable sheath
LSZH
Inner conductor material
CU (copper)
AWG
28/7 (stranded)
Specification
CAT 6
Cable type
round cable
Shielding class
S/FTP (PiMF)
Number of shieldings
2 x
Type 1, shielding
foil (alu) PiMF
Cable sheath diameter (approx.)
6 mm
Type 2, shielding
braid (alu) overall shield
LSZH compliant
yes
Signal transmission
max. bandwidth
250 MHz
General
Color
blue, yellow, grey, Green, magenta, orange, red, black, violet, white
Markings
WEEE, CE
Operating temperature from
-20 °C
Operating temperature up to
60 °C
Packaging type
Bulk
Packing units:
1
Item: 69812
EAN: 4040849698125
