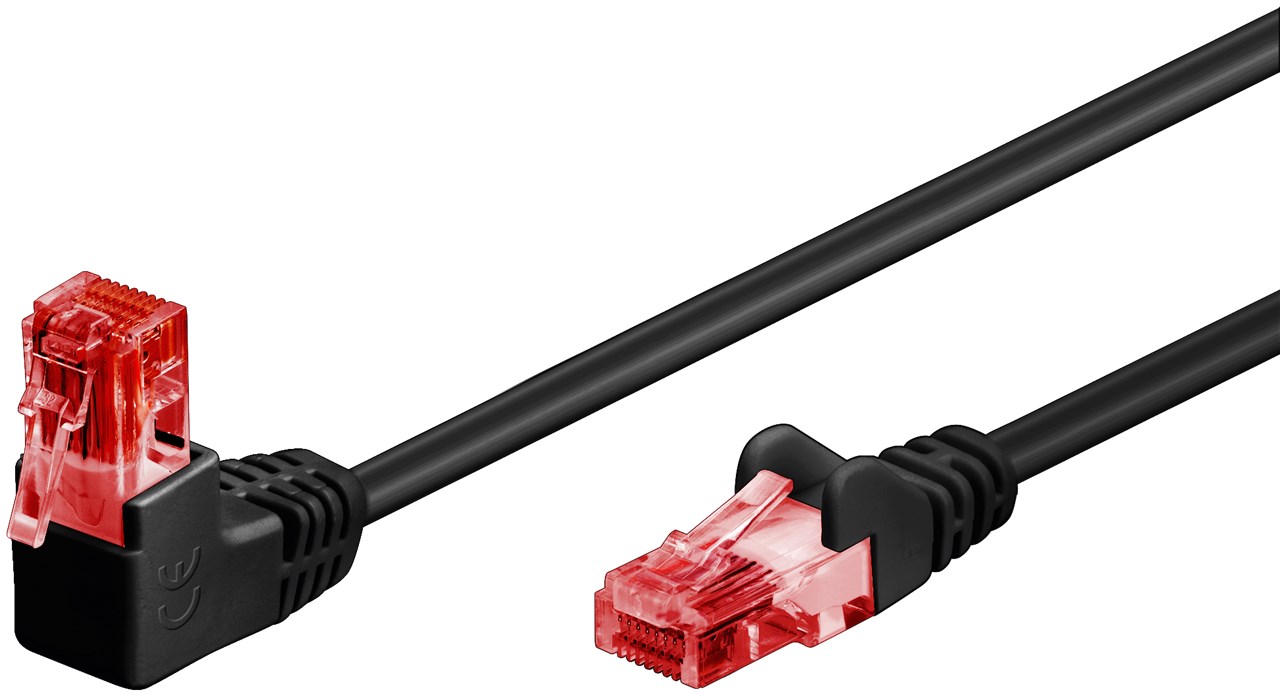

CAT 6 Patch Cable 1x 90° Angled, U/UTP, black
copper-clad aluminium wire (CCA), latch on top
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.
- Prewired, unshielded LAN cable with 2x RJ45 plugs for connecting network components
- 1x 90° RJ45 angle plug is an ideal solution in confined spaces.
- Gold-plated contact surfaces and copper-clad aluminium (CCA) conductors prevent corrosion and ensure clear signal quality without interference
- Latch protection on the straight RJ45 plug prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Bend protection and a sturdy PVC jacket effectively protect the Ethernet cable from breakage.
- CAT 6 cable is suitable for 10 Gigabit Ethernet with speeds of up to 10/100/1000/10000 Mbit/s.
- Network cable is suitable for Power over Ethernet (PoE, PoE+).
Maximum transmission speed
CAT 6 @ 250 MHz bandwidth
Max. speed up to 55 m: 10 Gbit/s
Max. speed up to 100 m: 1 Gbit/s
Max. speed up to 100 m, NBASE-T: max. 5 Gbit/s*
*Please note: Max. 5 Gbit/s only with special switches/network cards that support the IEEE 802.3bz standard.
Technical specifications
Connections
| Contacting | EIA/TIA-568 B |
| Connection, contact material | gold-plated |
| Connection, type | RJ45 male 90° (8P8C) |
| Connection 2, type | RJ45 male (8P8C) |
| Connection, shielding | no |
| Latch protection | unilaterally |
| Kink protection | both sides |
Cable
| Cable length | 0.25 m |
| Specification | CAT 6 |
| Shielding class | U/UTP |
| Cable type | round cable |
| Cable sheath diameter (approx.) | 5.9 mm |
| Inner conductor material | CCA (copper-clad aluminium) |
| AWG | 25/7 (stranded) |
| bending radius > | 59 mm |
| Material cable sheath | PVC |
Signal transmission
| max. transmission rate | 1 Gbit/s |
| max. bandwidth | 250 MHz |
General
| Color | black |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 65 °C |
| Packaging type | Cable Tag |
Dimensions / Weight
| Consumption Unit | 1 pc. bulk |
