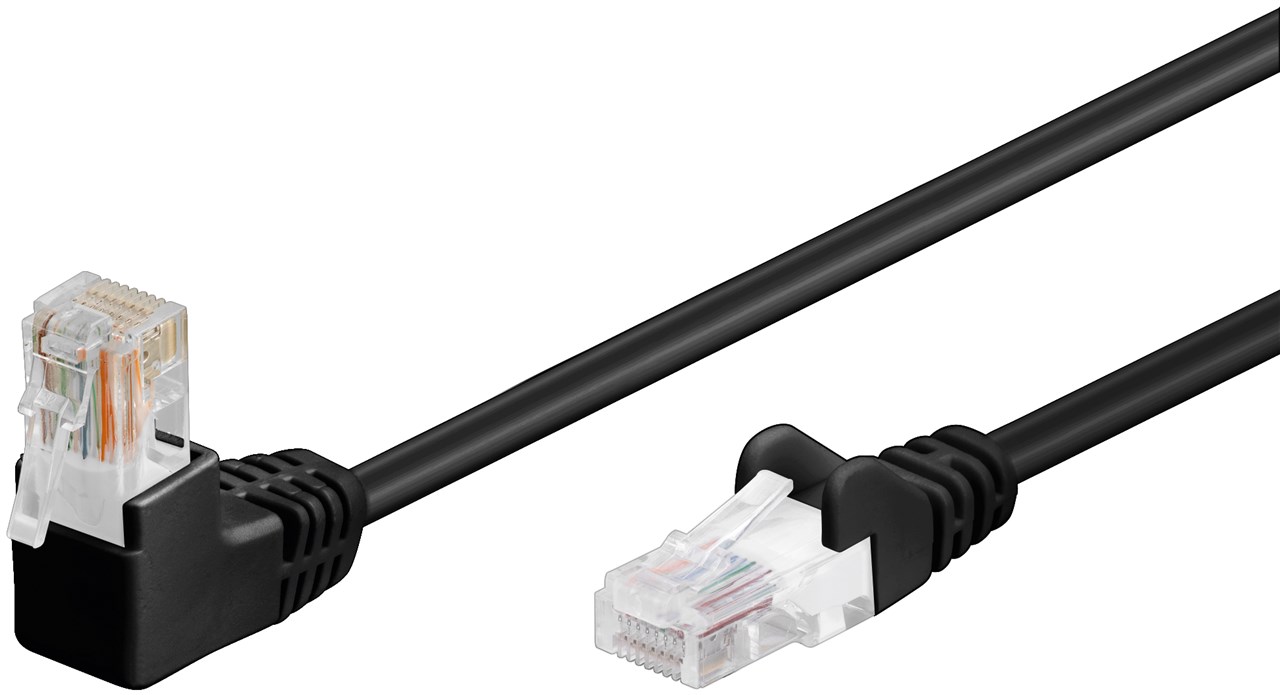

CAT 5e Patch Cable 1x 90° Angled, U/UTP, black
copper-clad aluminium wire (CCA), latch on top
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.
- Prewired, unshielded LAN cable with 2x RJ45 plugs for connecting network components
- The 90° right angle RJ45 connector is an ideal solution for confined spaces.
- Latch protection on the straight RJ45 plug prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Copper-clad aluminium (CCA) conductors ensure easy, flexible installation and are ideal for home and office networks
- Bend protection and a sturdy PVC jacket effectively protect the network cable from breakage.
- Length of the Ethernet cable indicated on the overmoulded slimline strain relief on the straight connector.
- CAT 5e internet cable is suitable for Gigabit Ethernet with speeds of up to 10/100/1000 Mbit/s
Maximum transmission speed
CAT 5e @ 100 MHz bandwidth
Max. speed up to 100 m: 1 Gbit/s
Max. speed up to 100 m, NBASE-T: max. 5 Gbit/s*
*Please note: Max. 2,5 Gbit/s only with special switches/network cards that support the IEEE 802.3bz standard.
Technical specifications
Connections
| Contacting | EIA/TIA-568 B |
| Connection, type | RJ45 male 90° (8P8C) |
| Connection 2, type | RJ45 male (8P8C) |
| Connection, shielding | no |
| Latch protection | unilaterally |
| Kink protection | both sides |
Cable
| Cable length | 0.25 m |
| Specification | CAT 5e |
| Shielding class | U/UTP |
| Cable type | round cable |
| Cable sheath diameter (approx.) | 4.6 mm |
| Inner conductor material | CCA (copper-clad aluminium) |
| AWG | 26/7 (stranded) |
| bending radius > | 50 mm |
| Material cable sheath | PVC |
Signal transmission
| max. transmission rate | 1 Gbit/s |
| max. bandwidth | 100 MHz |
General
| Color | black |
| Markings | WEEE, CE |
| Special feature | Length indication on connector |
| Operating temperature from | -20 °C |
| Operating temperature up to | 60 °C |
| Packaging type | Cable Tag |
Dimensions / Weight
| Consumption Unit | 1 pc. bulk |
€3.29 RRP
Packing units:
1 / 660
