Product and packaging similar. Subject to modifications and errors.

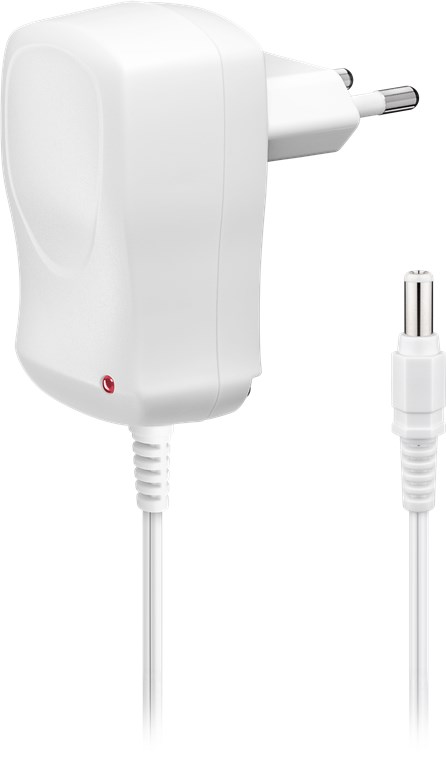

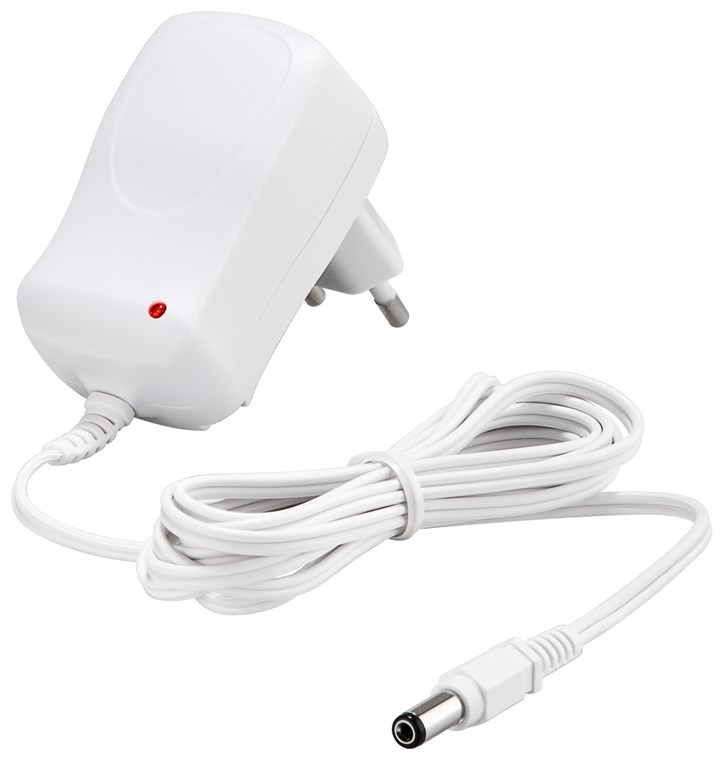

12 V Power Supply (7.2 W / 0.6 A)
5.5 mm x 2.1 mm plug
- DC power adapter for charging and operating electric devices such as a video camera, router, scanner, effects unit, cross trainer, dart board, baby monitor or toys
- Universal power adapter 12 V provides stabilised direct current at 0.6 A.
- Universal power supply with 5.5 mm x 2.1 mm DC plug for connecting common electrical devices
- DC power supply reduces energy consumption by up to 90 % in stand-by mode
- Thanks to the wide-range input from 100 V to 240 V, the power supply unit (Euro Plug type C, CEE 7/16) is suitable for worldwide use.
- Fuses in the 12 V adapter protect against short circuit, overload, overvoltage and overcurrent.
Connections
| Input, type |
Europlug (Type C CEE 7/16) |
| Output, type |
DC male (5.50 x 2.10 mm) |
Performance
| No-load power consumption |
0.08 W |
| Power consumption |
7.2 W |
| Security Functions |
Short circuit, Overloading, Overcurrent |
Device connections
| Output, Voltage Step |
12 V |
| voltage stabilization |
yes |
| Input, Voltage Range |
100 - 240 (AC) V |
| Output, max. amperage |
0.6 A |
Cable
General
| Color |
white |
| Markings |
CE, WEEE, EUP, Haus, Quader |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
68.4 mm |
| Width |
38.7 mm |
| Height |
68.4 mm |
| Weight |
86 g |
accessory - Power supply
| Power frequency |
60 Hz |
| Efficiency at low load (10 %) |
74.92 % |
| Average active efficiency |
80.9 % |
Language Scope
| packaging |
en, de, fr, it, es, nl, da, sv, pl, cs, fi, ro, el, ru, tr |
SCIP
| SCIP no. |
0dddc99b-6906-4532-8b41-b79dff5ba7f6 |
| chemical substance |
Pb |
| CAS no. |
7439-92-1 |
