Series 2.0

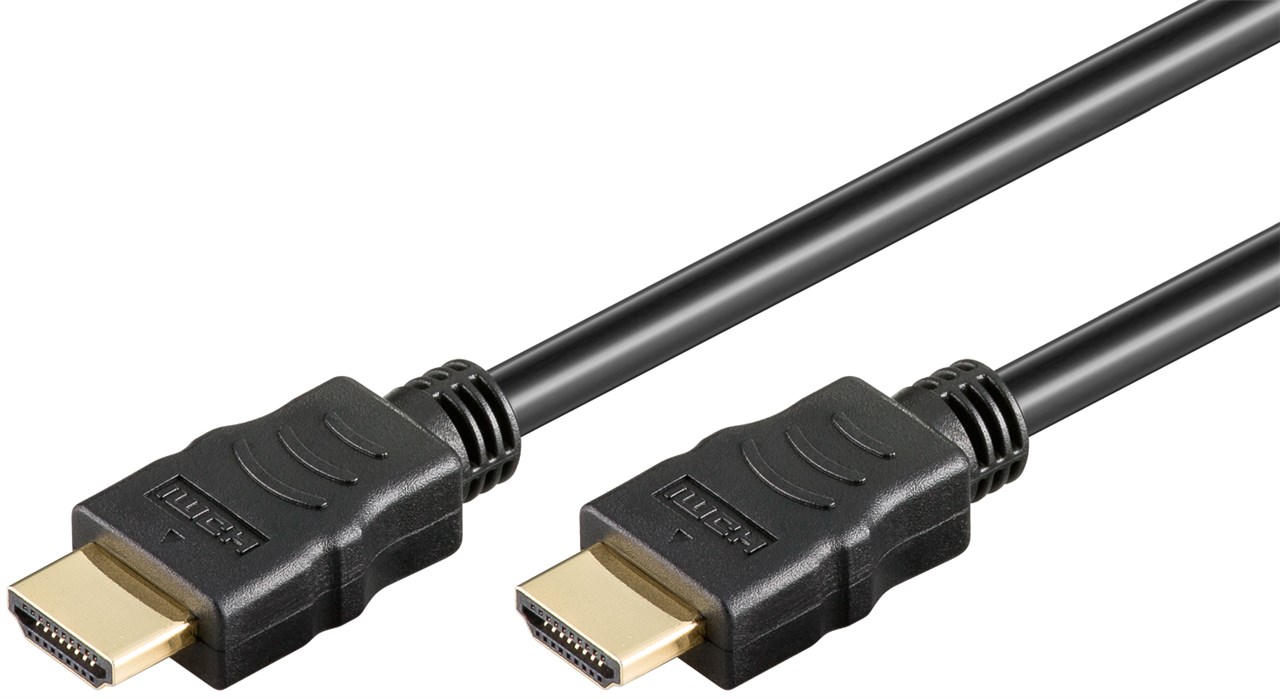

HDMI™ High Speed Cable with Ethernet
HDMI™ connector male (type A) > HDMI™ connector (type A)
Series 2.0
HDMI™ High Speed Cable with Ethernet
HDMI™ connector male (type A) > HDMI™ connector (type A)
Article details
- High resolution signal transmission with up to 4K Ultra HD @ 50/60 Hz (2160p)
- Connection cable with max. transmission rate of up to 18 Gbit/s
- Gold-plated HDMI™ plugs and advanced technology guarantee a perfect signal transmission, clear sound, razor-sharp video and picture quality.
- The HDMI™ High Speed cable links TVs and monitors with game consoles such as PlayStation or Xbox, as well as beamers, projectors and streaming receivers, e.g. Amazon Fire TV or Apple TV.
- HDMI™ connection for current features such as ARC (Audio Return Channel), HDCP or 3D content
- Goobay 4K cable transmits network connection and replaces additional ethernet cable.
Technical specifications
Labelling
Disclaimer
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
Connections
Connection, housing material
PE
Connection, type
HDMI™ connector male (type A)
Connection 2, type
HDMI™ connector (type A)
Connection, contact material
gold-plated
Cable
Cable type
round cable
Cable sheath diameter (approx.)
5 mm
Inner conductor material
CCS
Cable structure
15+1
Inner Conductor number
15 pieces
AWG
30
Type 1, shielding
foil (aluminium)
Type 2, shielding
foil (aluminium)
Material cable sheath
PVC
Ferrite core
no
Cable length
1 m
Signal transmission
max. transmission rate
18 Gbit/s
Supported video standards
4K Ultra HD 2160p (60 Hz)
supported audio standards
Enhanced Audio Return Channel (eARC), Audio Return Channel (ARC)
other supported standards
HDR (High Dynamic Range), HDMI™ Ethernet Channel (HEC), 3D, HDCP 2.2, Consumer Electronics Control (CEC)
General
Goobay Version
2.0
Color
black
Packaging type
Bulk
Dimensions / Weight
Diameter
6 mm
Consumption Unit
1 pc. in polybag
Downloads
Item: 44506
EAN: 4040849445064
Successor Product
Accessories
Item: 51719
Packing units:
1 / 10 / 200 / 400
Similar products
€6.99 RRP
Article:
69912,
|
,
0.5 m, Bulk
5 further products
€11.99 RRP
Article:
31913,
|
,
1 m, Bulk
4 further products
€19.99 RRP
Article:
70326,
|
,
1 m, Retail Box
3 further products
€34.99 RRP
Article:
44923,
|
,
1 m, Retail Box
4 further products
€14.99 RRP
Article:

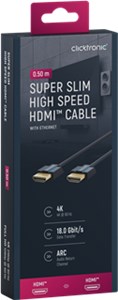

70701,
|
,
0.5 m, Retail Box
4 further products
€29.99 RRP
Article:

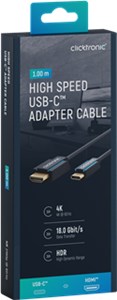

44928,
|
,
